No Passenger Side Impact Sensor 1 Communication Diagnostic Procedure

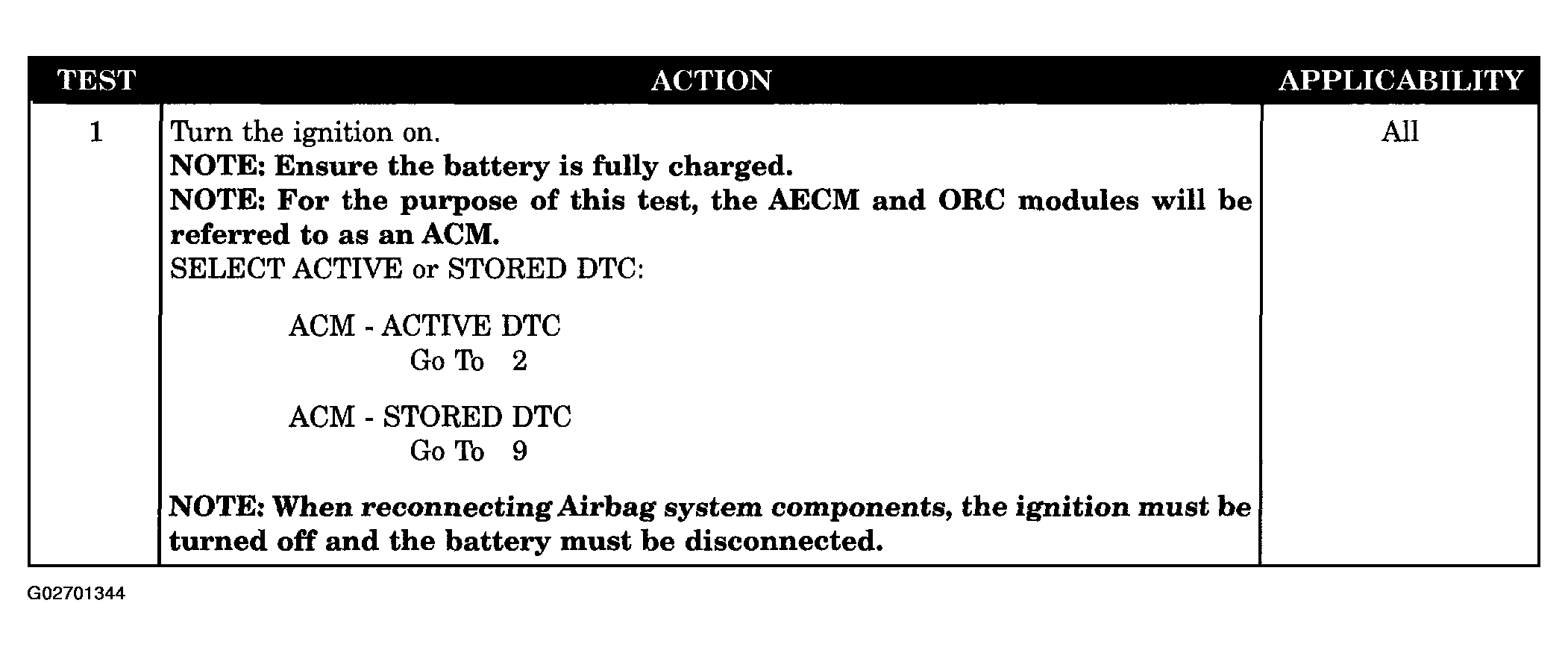

Fig 1: No Passenger Side Impact Sensor 1 Communication Diagnostic Procedure (1 Of 3)
G02701344Courtesy of DAIMLERCHRYSLER CORP.

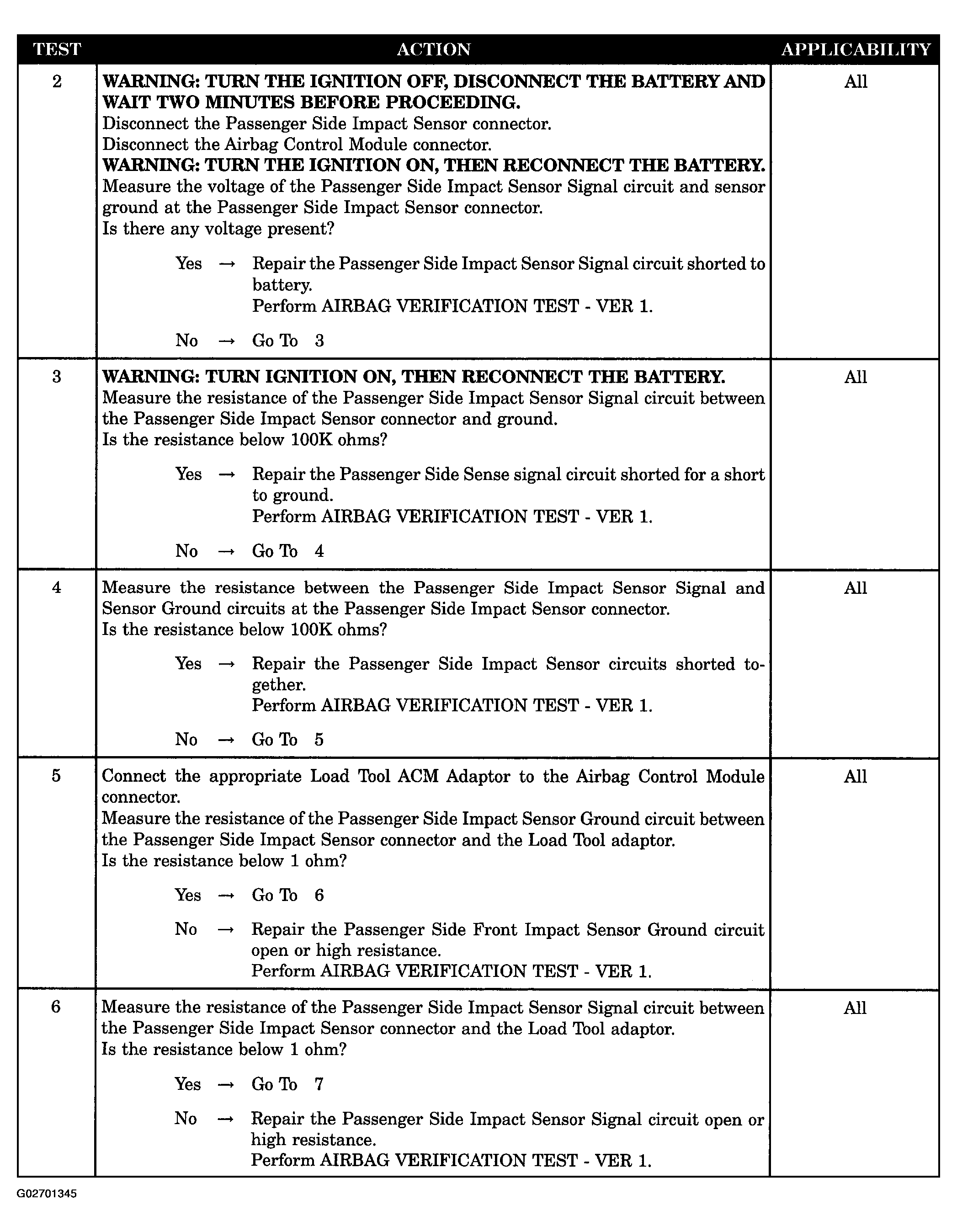

Fig 2: No Passenger Side Impact Sensor 1 Communication Diagnostic Procedure (2 Of 3)
G02701345Courtesy of DAIMLERCHRYSLER CORP.

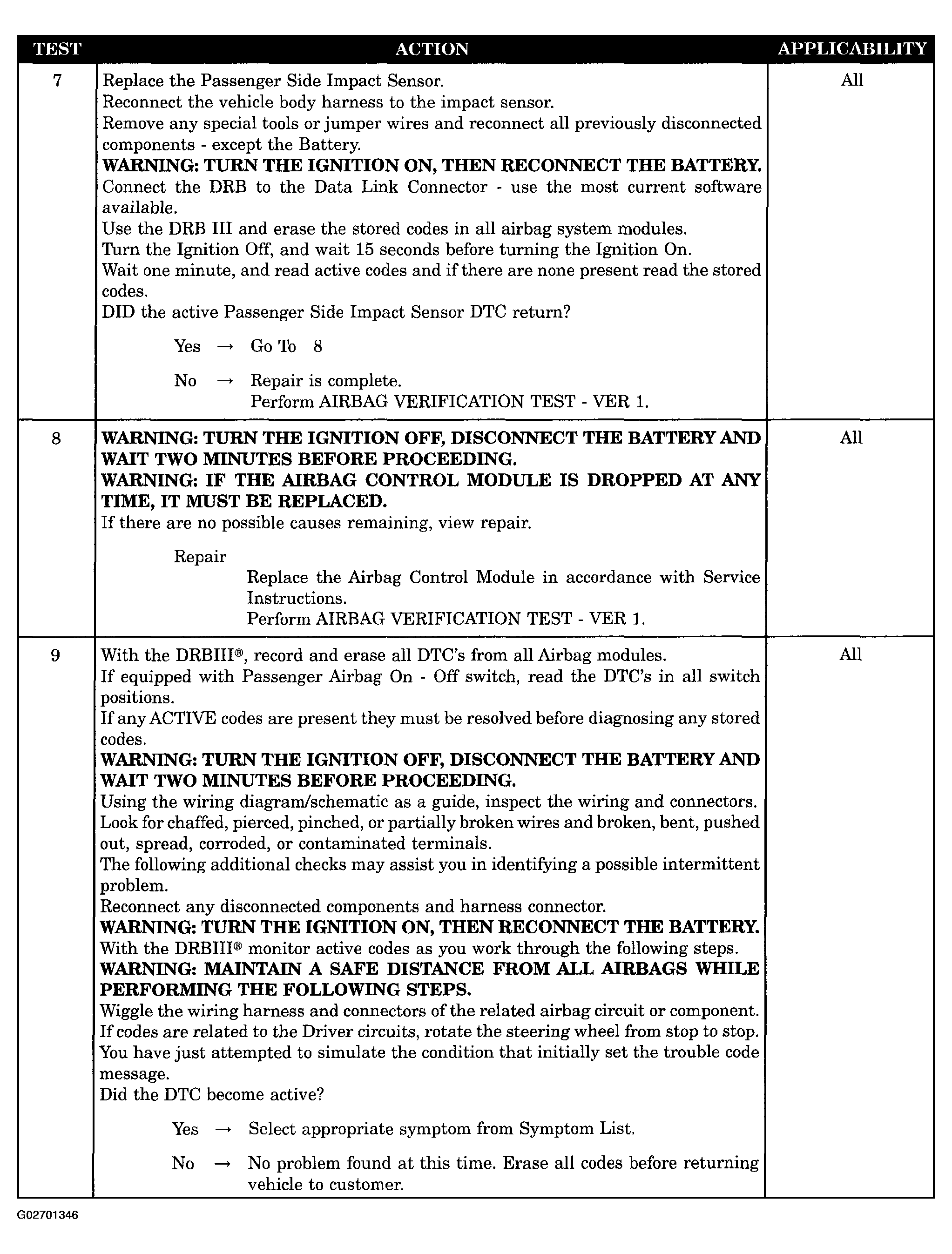

Fig 3: No Passenger Side Impact Sensor 1 Communication Diagnostic Procedure (3 Of 3)
G02701346Courtesy of DAIMLERCHRYSLER CORP.
