No Driver Side Impact Sensor 1 Communication Diagnostic Procedure

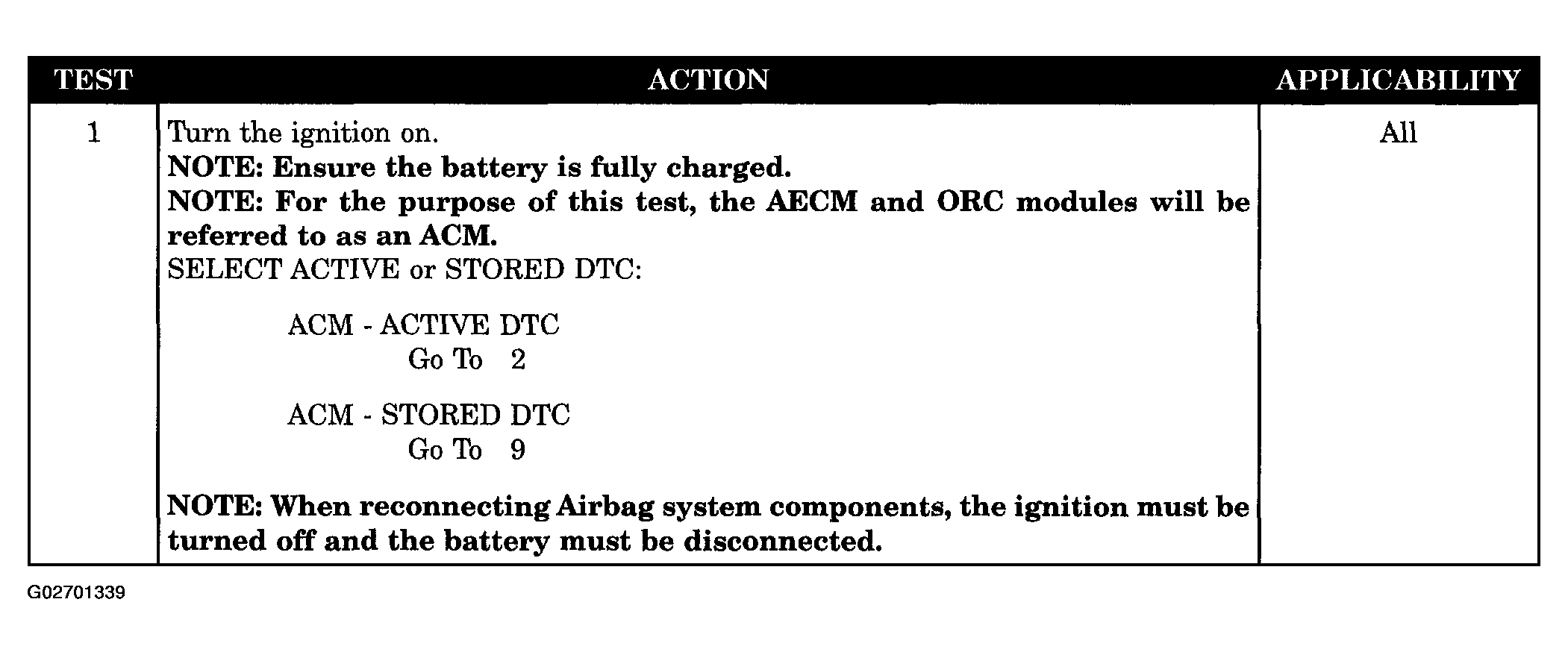

Fig 1: No Driver Side Impact Sensor 1 Communication Diagnostic Procedure (1 Of 3)
G02701339Courtesy of DAIMLERCHRYSLER CORP.

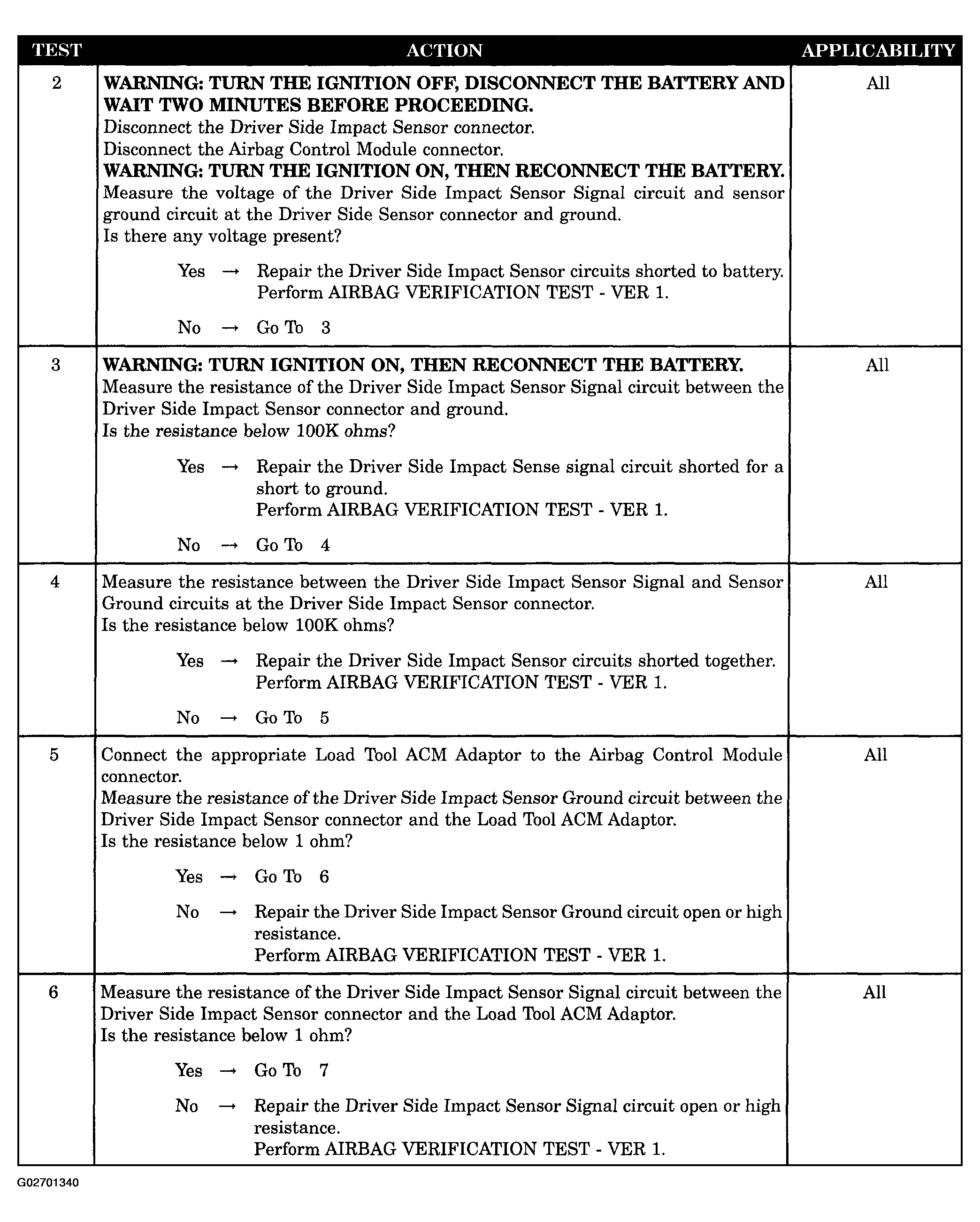

Fig 2: No Driver Side Impact Sensor 1 Communication Diagnostic Procedure (2 Of 3)
G02701340Courtesy of DAIMLERCHRYSLER CORP.

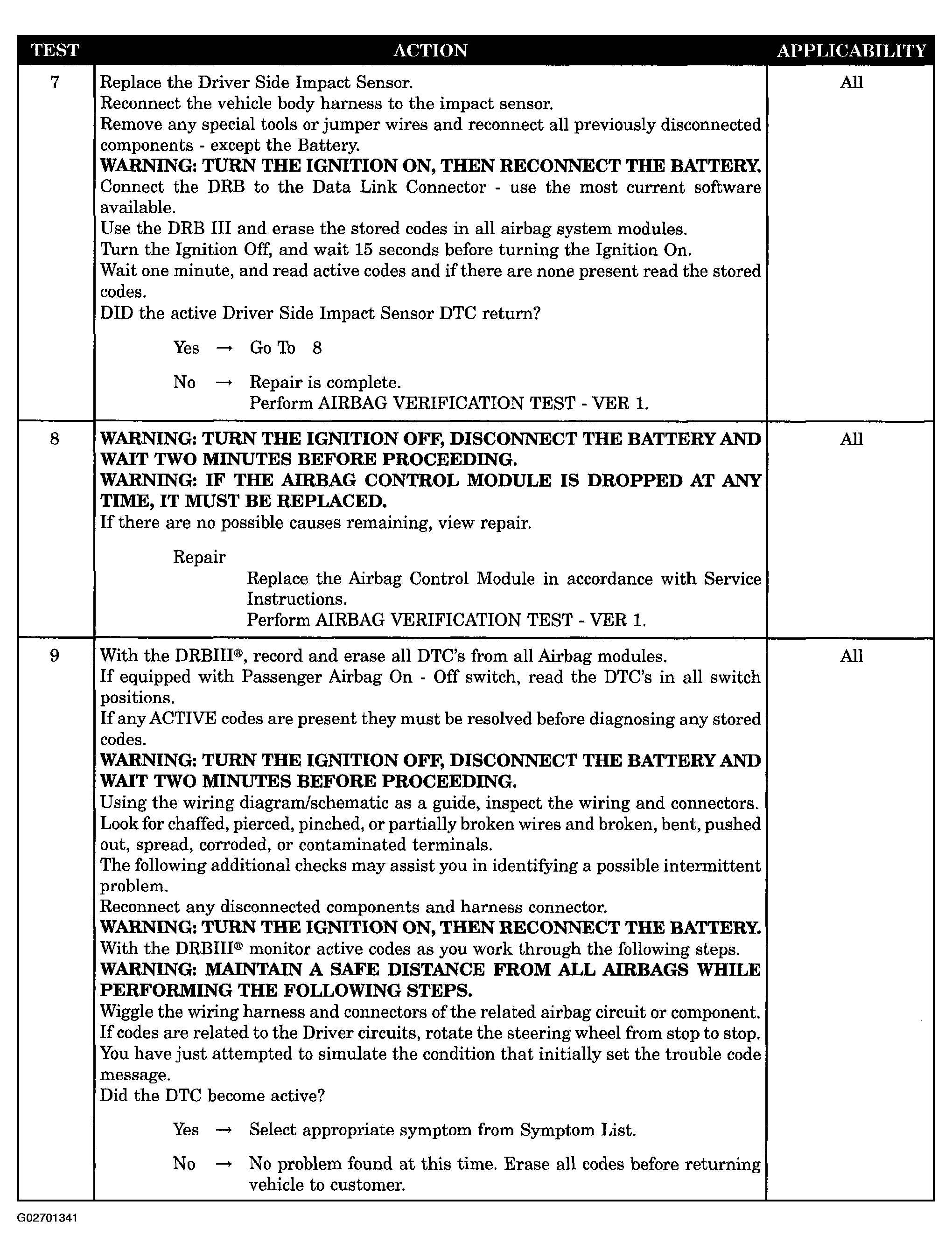

Fig 3: No Driver Side Impact Sensor 1 Communication Diagnostic Procedure (3 Of 3)
G02701341Courtesy of DAIMLERCHRYSLER CORP.
