Loss Of Ignition Run Only Diagnostic Procedure

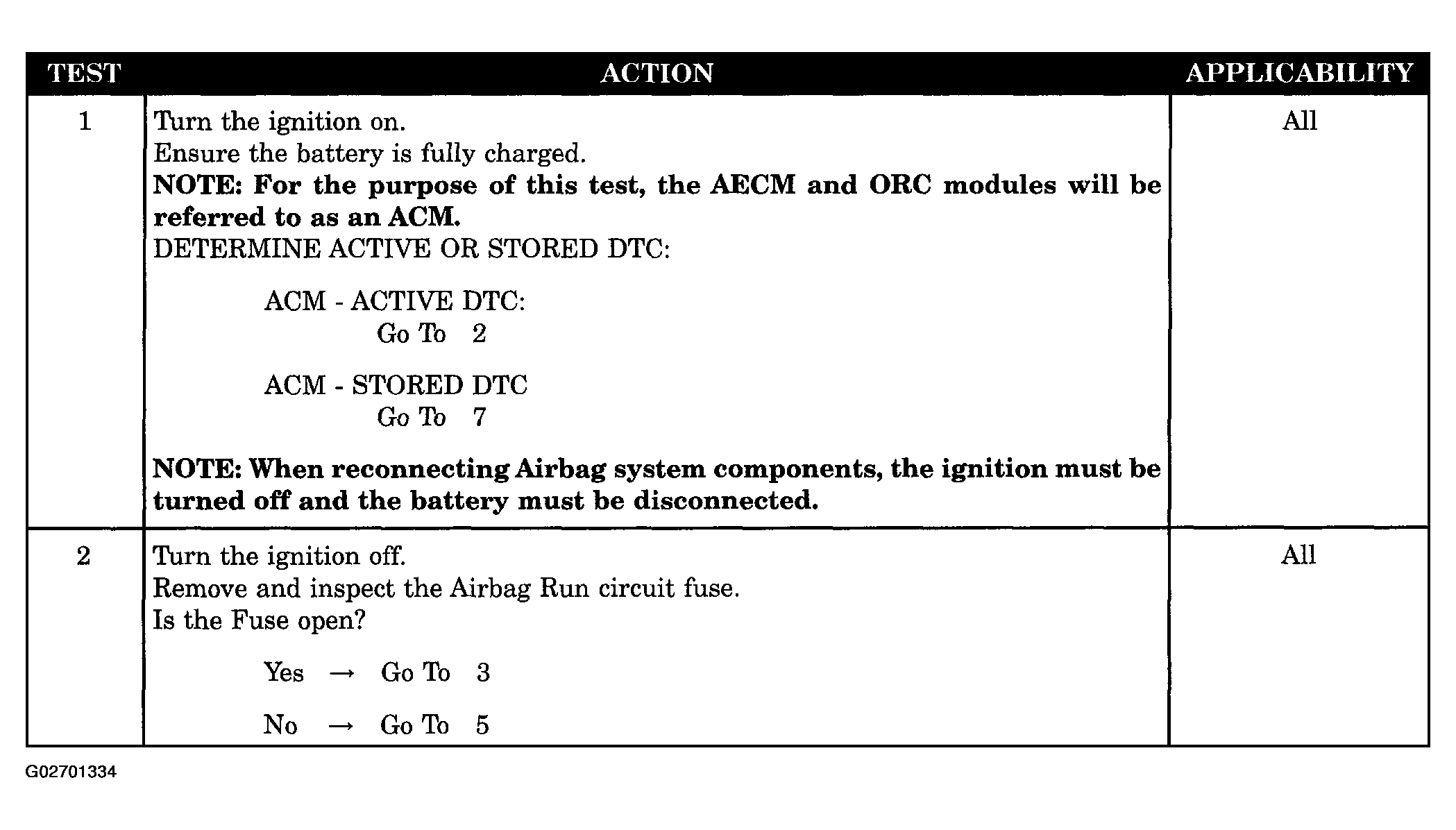

Fig 1: Loss Of Ignition Run Only Diagnostic Procedure (1 Of 3)
G02701334Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Loss Of Ignition Run Only Diagnostic Procedure (2 Of 3)
G02701335Courtesy of DAIMLERCHRYSLER CORP.

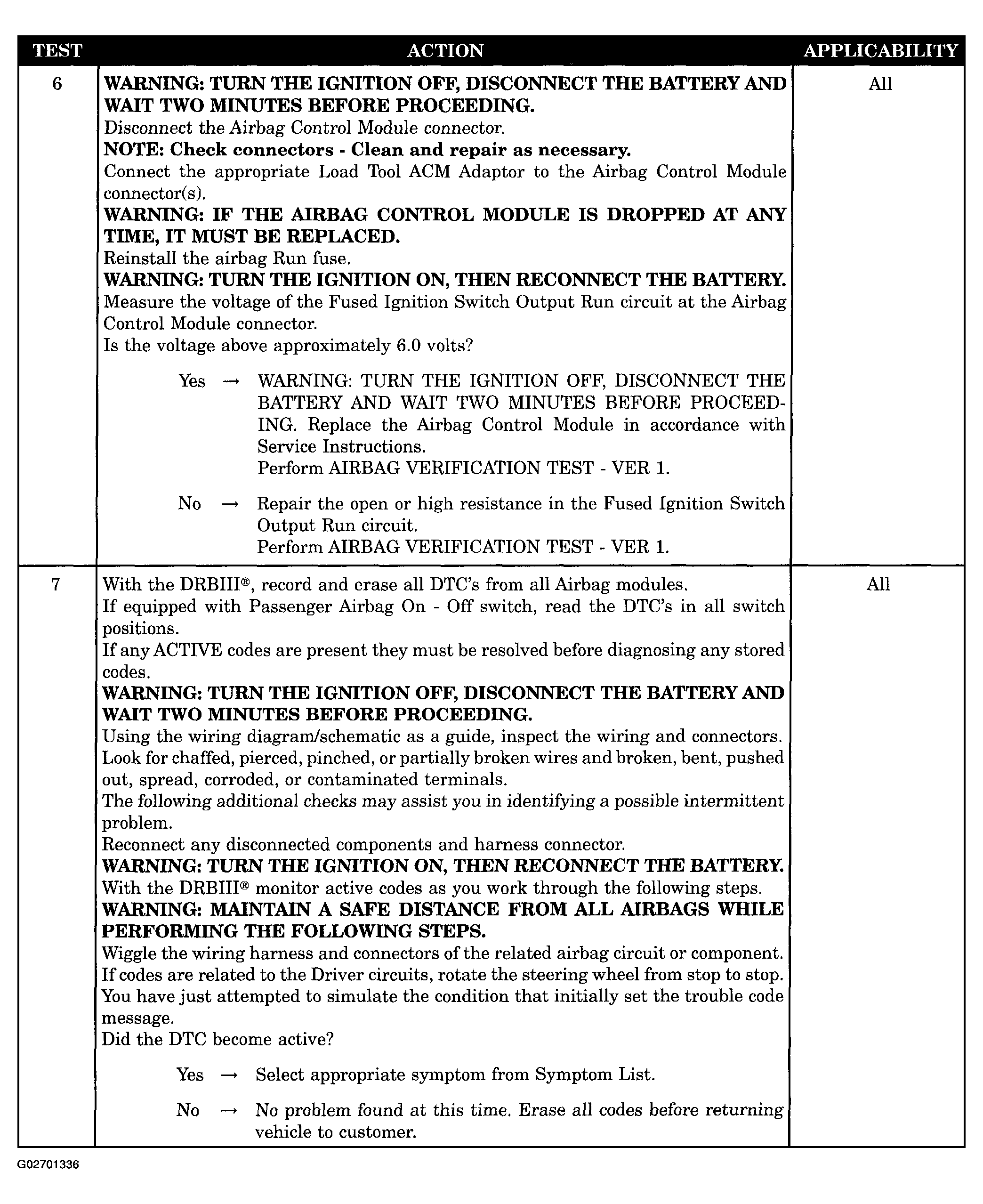

Fig 3: Loss Of Ignition Run Only Diagnostic Procedure (3 Of 3)
G02701336Courtesy of DAIMLERCHRYSLER CORP.
