Loss Of Ignition Run-Start Diagnostic Procedure

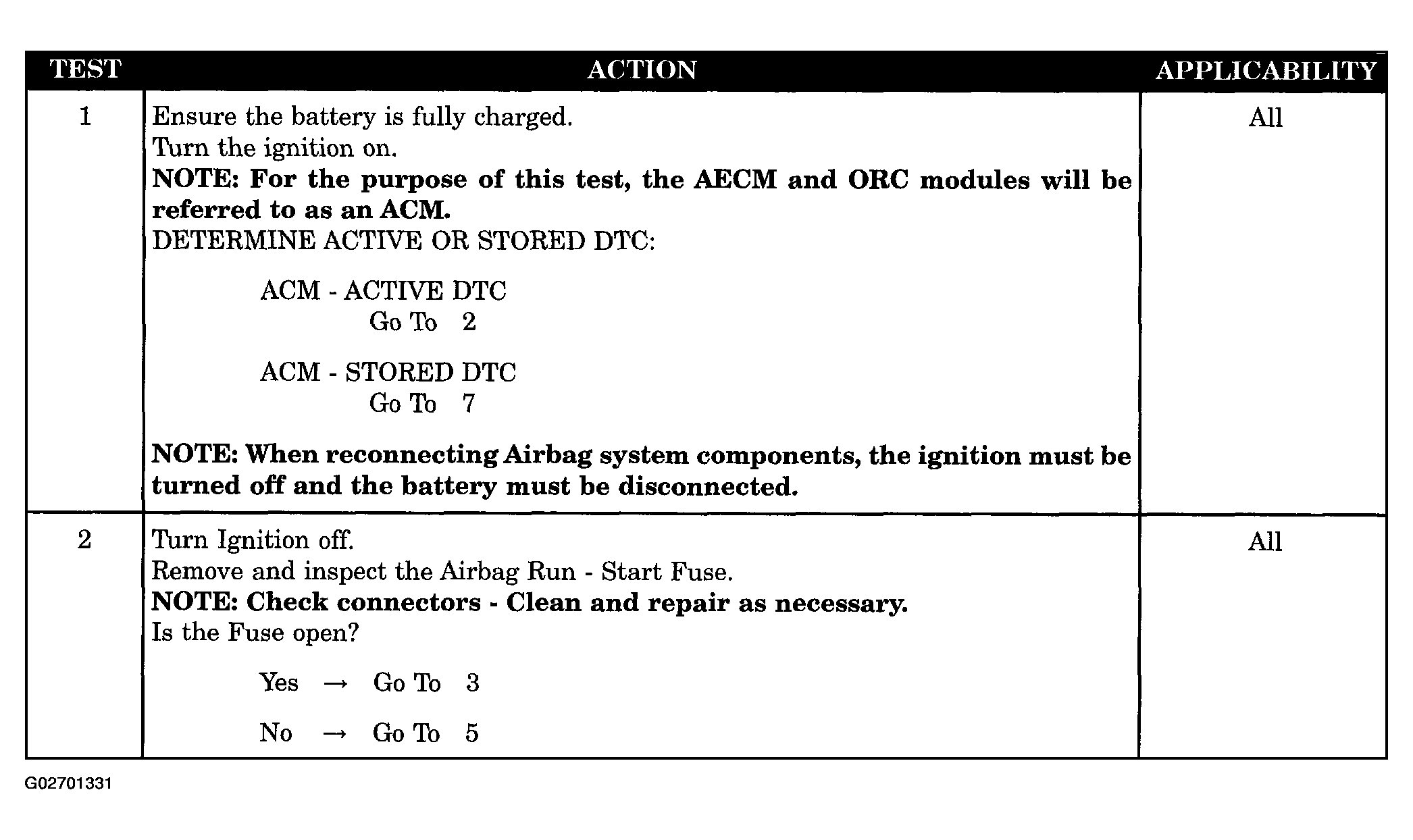

Fig 1: Loss Of Ignition Run-Start Diagnostic Procedure (1 Of 3)
G02701331Courtesy of DAIMLERCHRYSLER CORP.

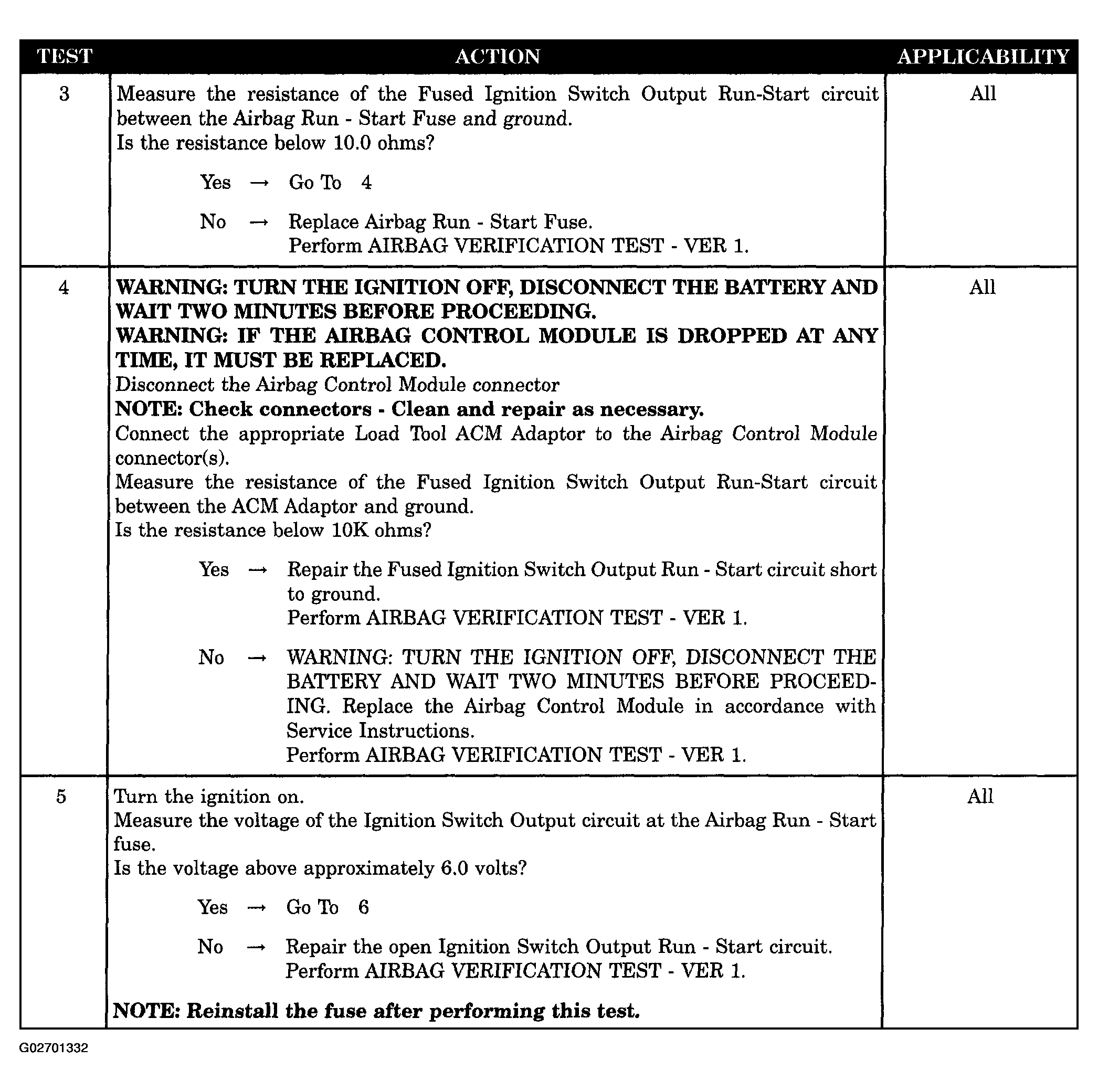

Fig 2: Loss Of Ignition Run-Start Diagnostic Procedure (2 Of 3)
G02701332Courtesy of DAIMLERCHRYSLER CORP.

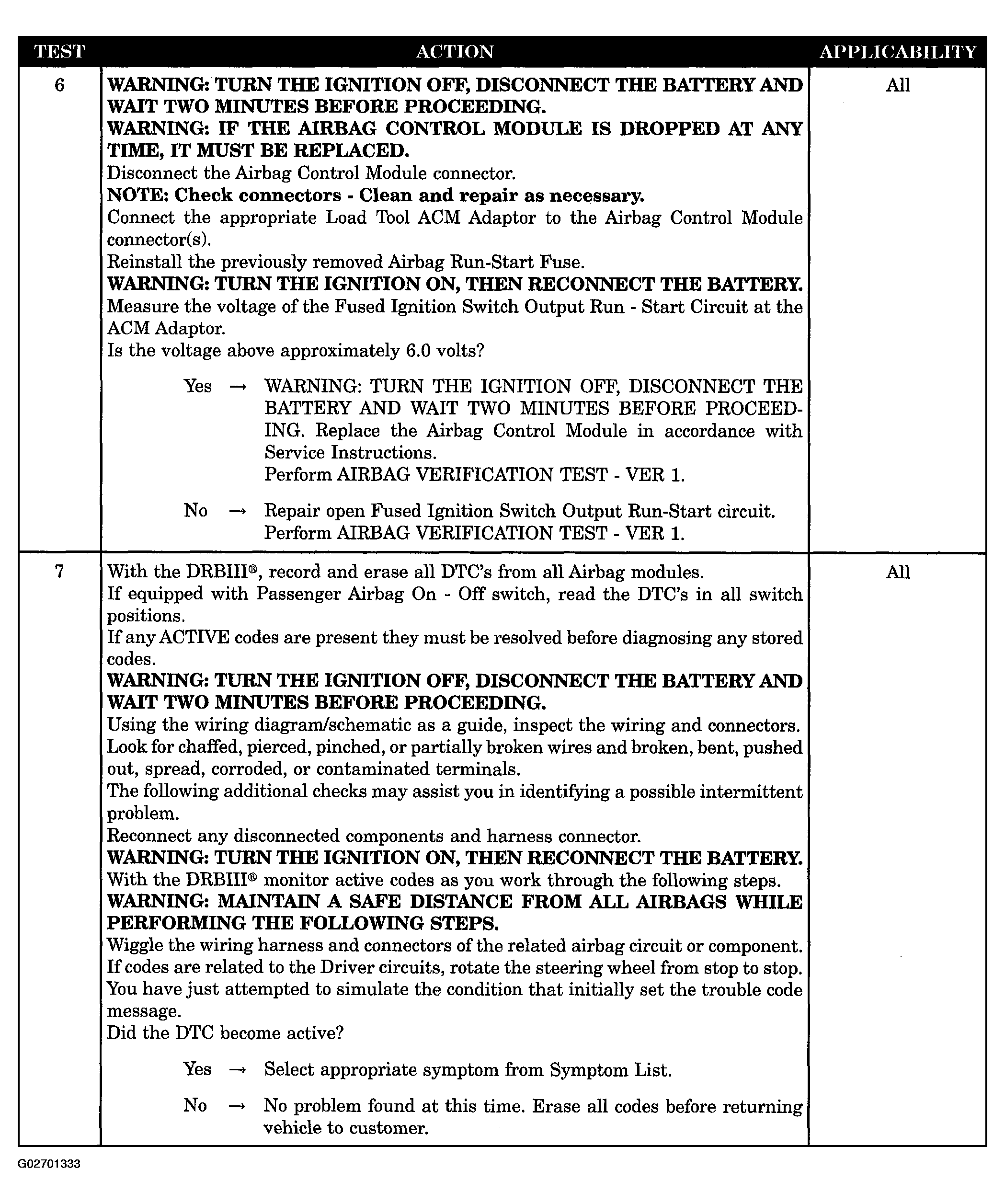

Fig 3: Loss Of Ignition Run -Start Diagnostic Procedure (3 Of 3)
G02701333Courtesy of DAIMLERCHRYSLER CORP.
