Driver Squib 1 Short To Ground Diagnostic Procedure

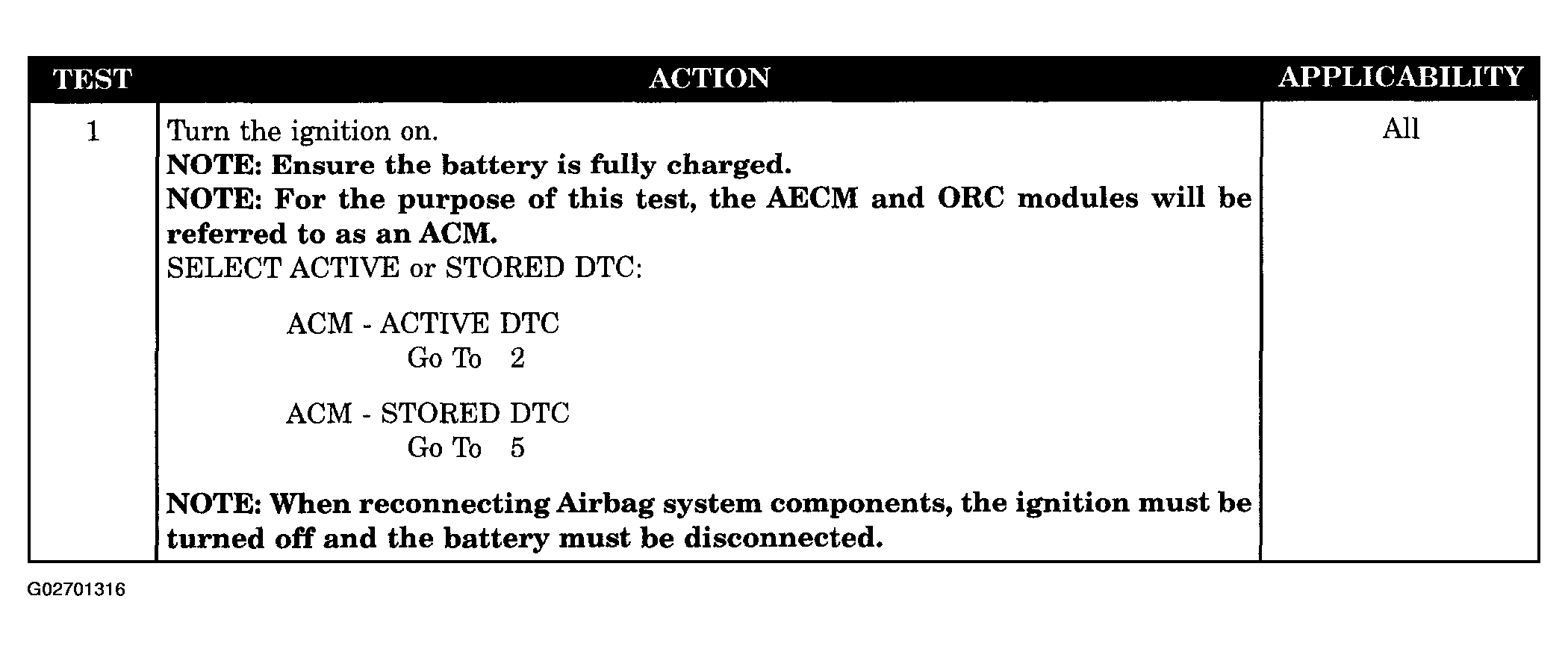

Fig 1: Driver Squib 1 Short To Ground Diagnostic Procedure (1 Of 3)
G02701316Courtesy of DAIMLERCHRYSLER CORP.

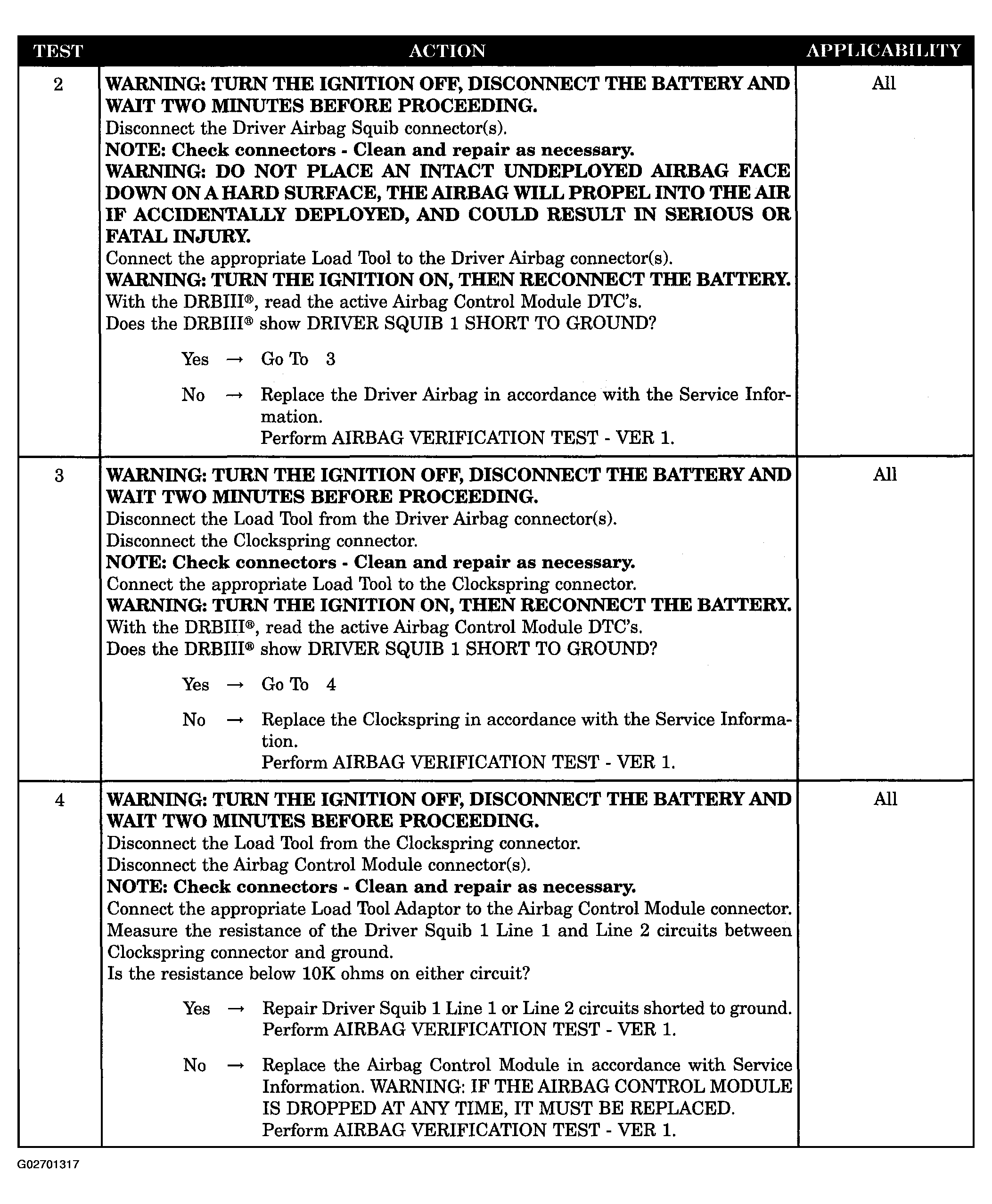

Fig 2: Driver Squib 1 Short To Ground Diagnostic Procedure (2 Of 3)
G02701317Courtesy of DAIMLERCHRYSLER CORP.

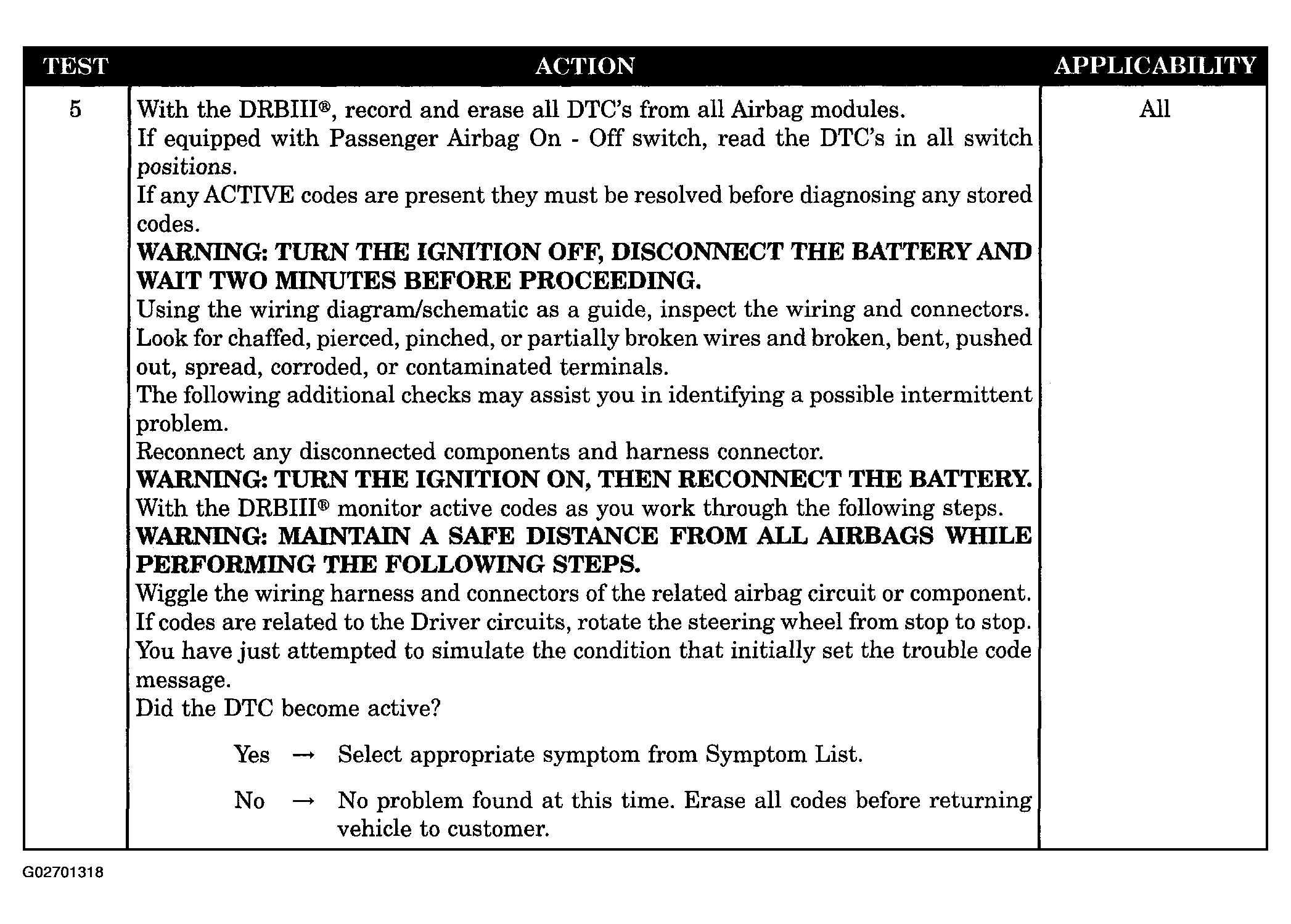

Fig 3: Driver Squib 1 Short To Ground Diagnostic Procedure (3 Of 3)
G02701318Courtesy of DAIMLERCHRYSLER CORP.
