Driver Squib 1 Circuit Short Diagnostic Procedure

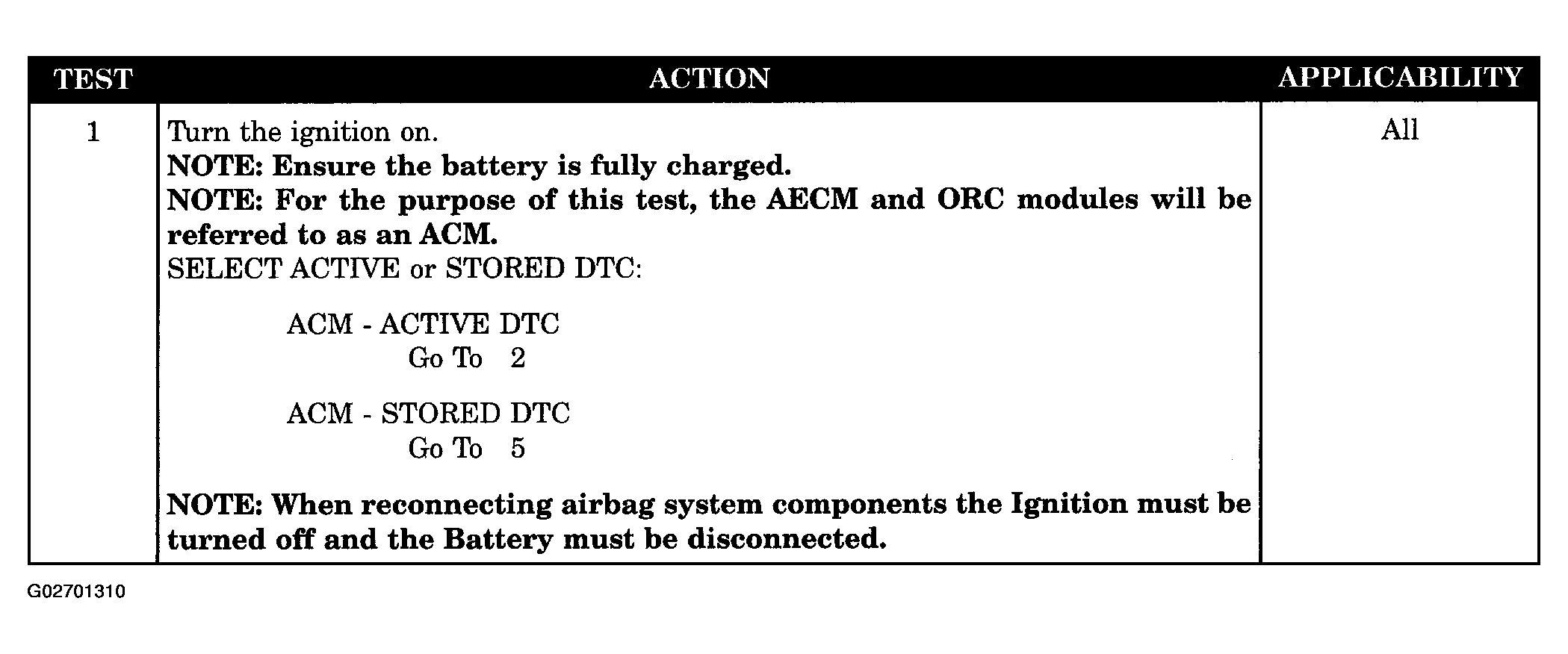

Fig 1: Driver Squib 1 Circuit Short Diagnostic Procedure (1 Of 3)
G02701310Courtesy of DAIMLERCHRYSLER CORP.

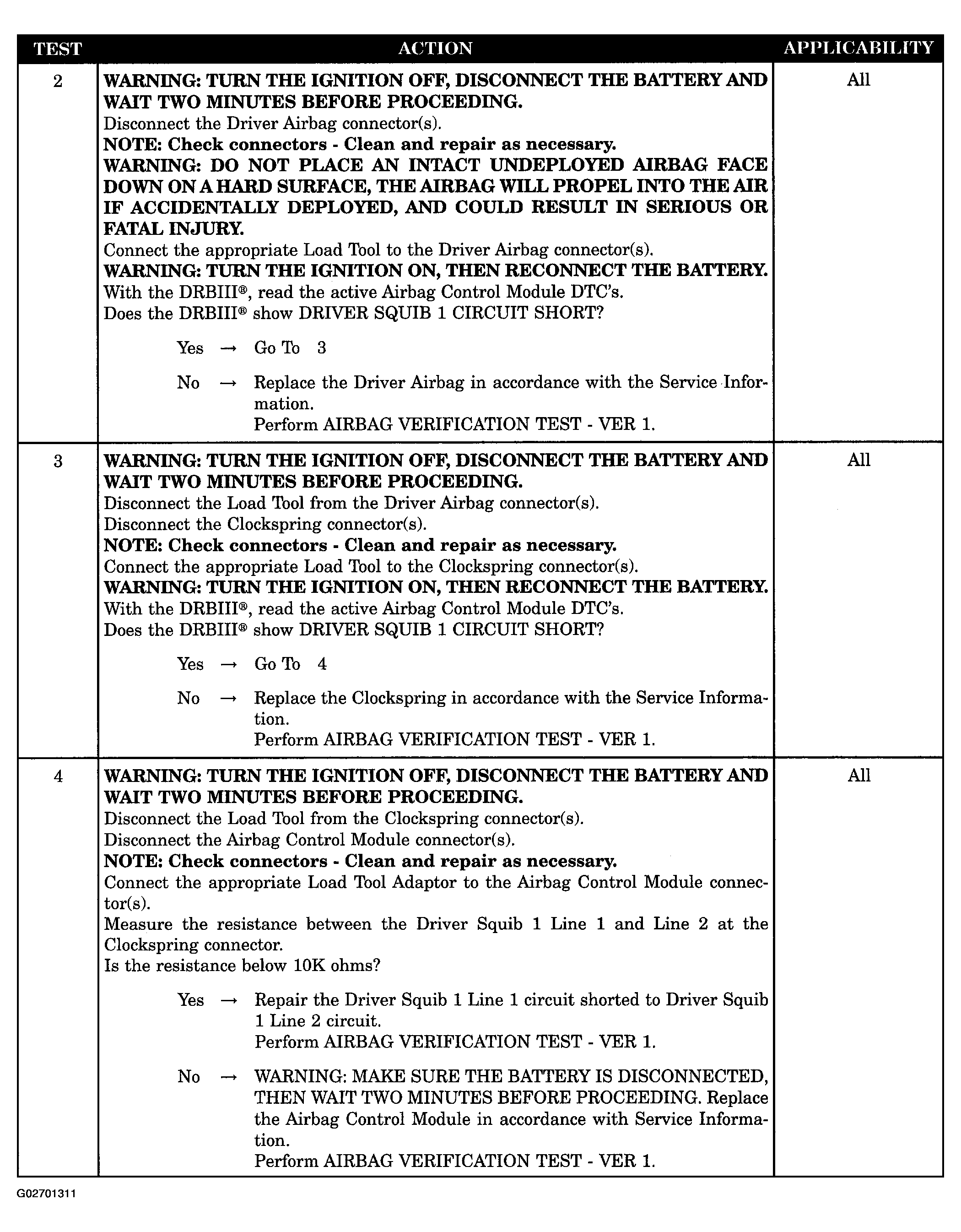

Fig 2: Driver Squib 1 Circuit Short Diagnostic Procedure (2 Of 3)
G02701311Courtesy of DAIMLERCHRYSLER CORP.

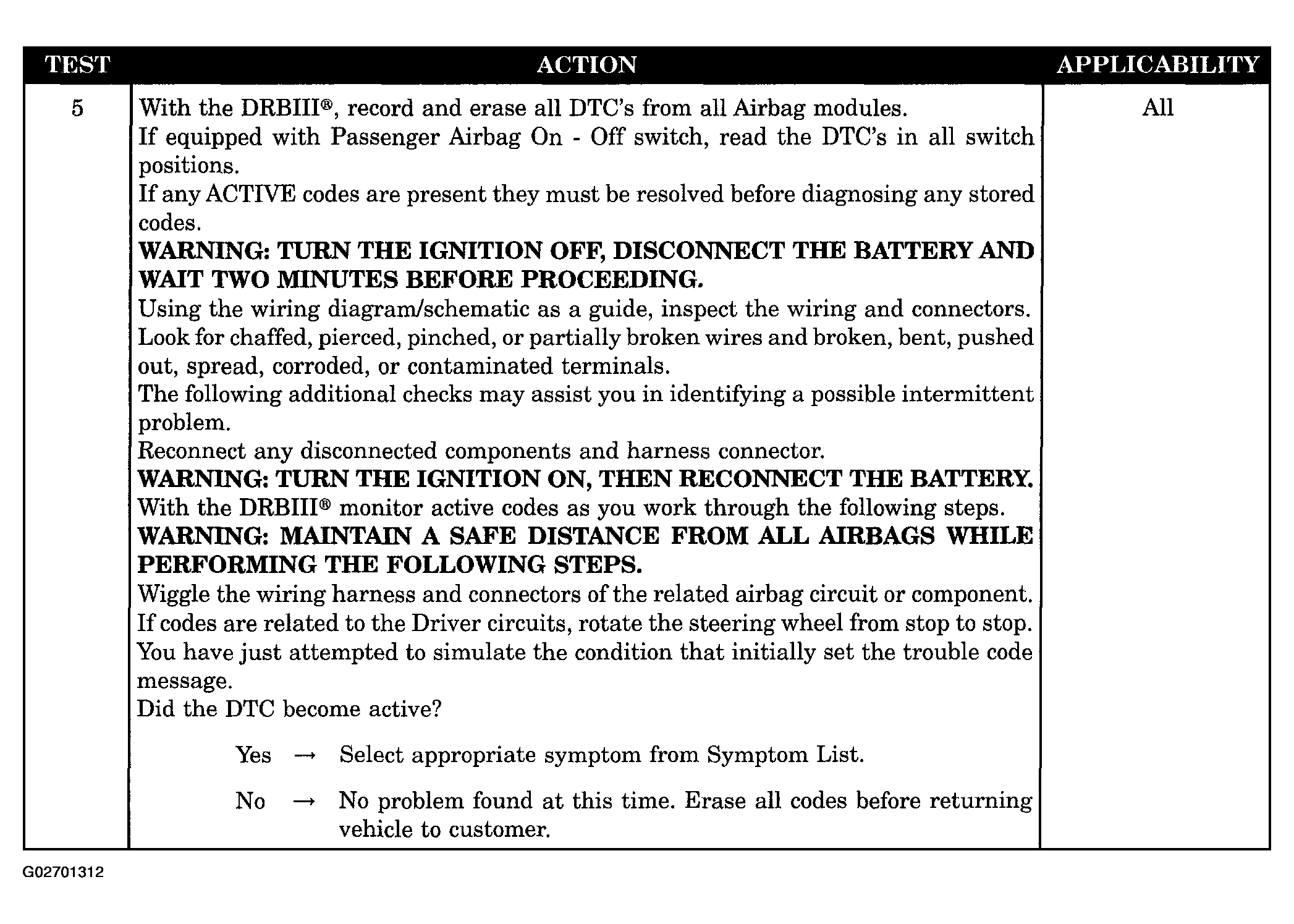

Fig 3: Driver Squib 1 Circuit Short Diagnostic Procedure (3 Of 3)
G02701312Courtesy of DAIMLERCHRYSLER CORP.
