Driver Squib 1 Circuit Open Diagnostic Procedure

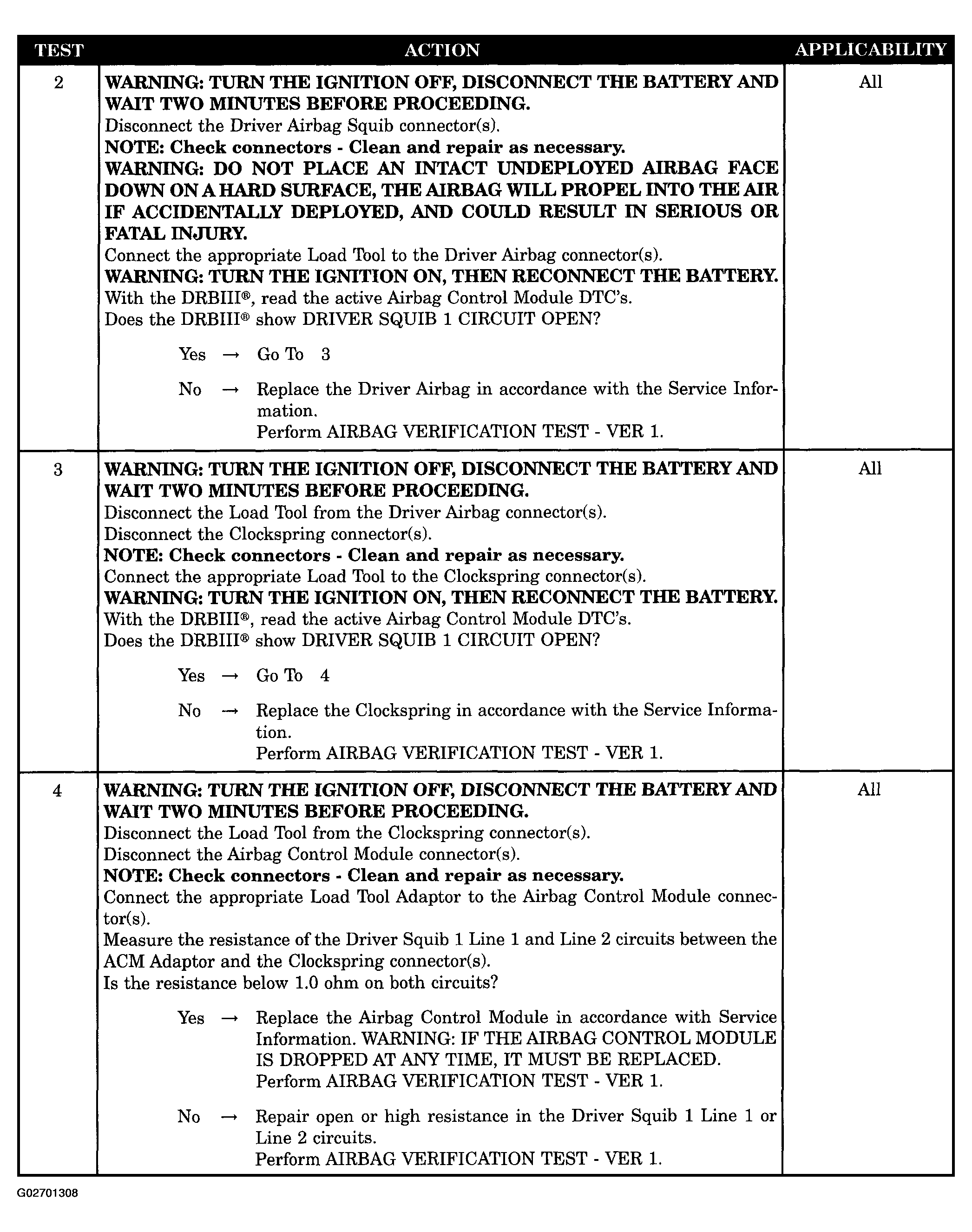

Fig 1: Driver Squib 1 Circuit Open Diagnostic Procedure (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

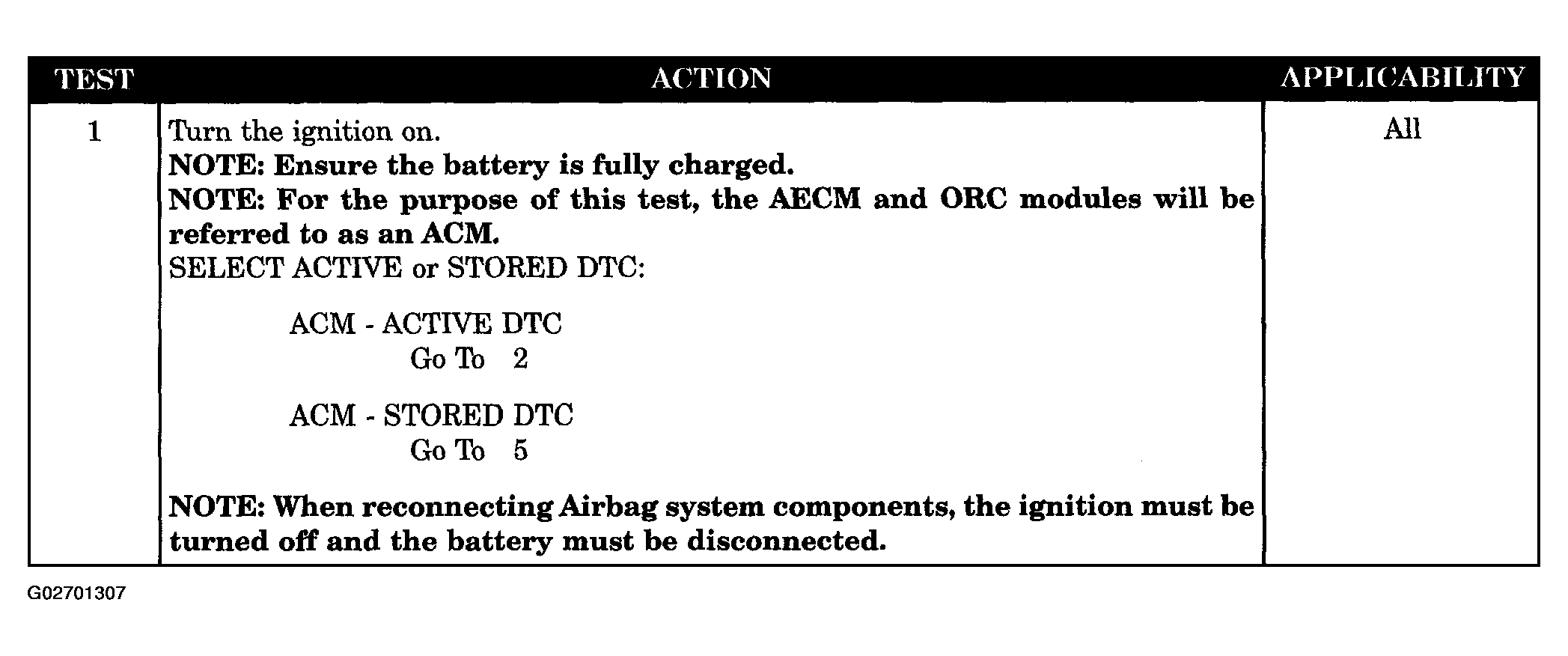

Fig 2: Driver Squib 1 Circuit Open Diagnostic Procedure (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

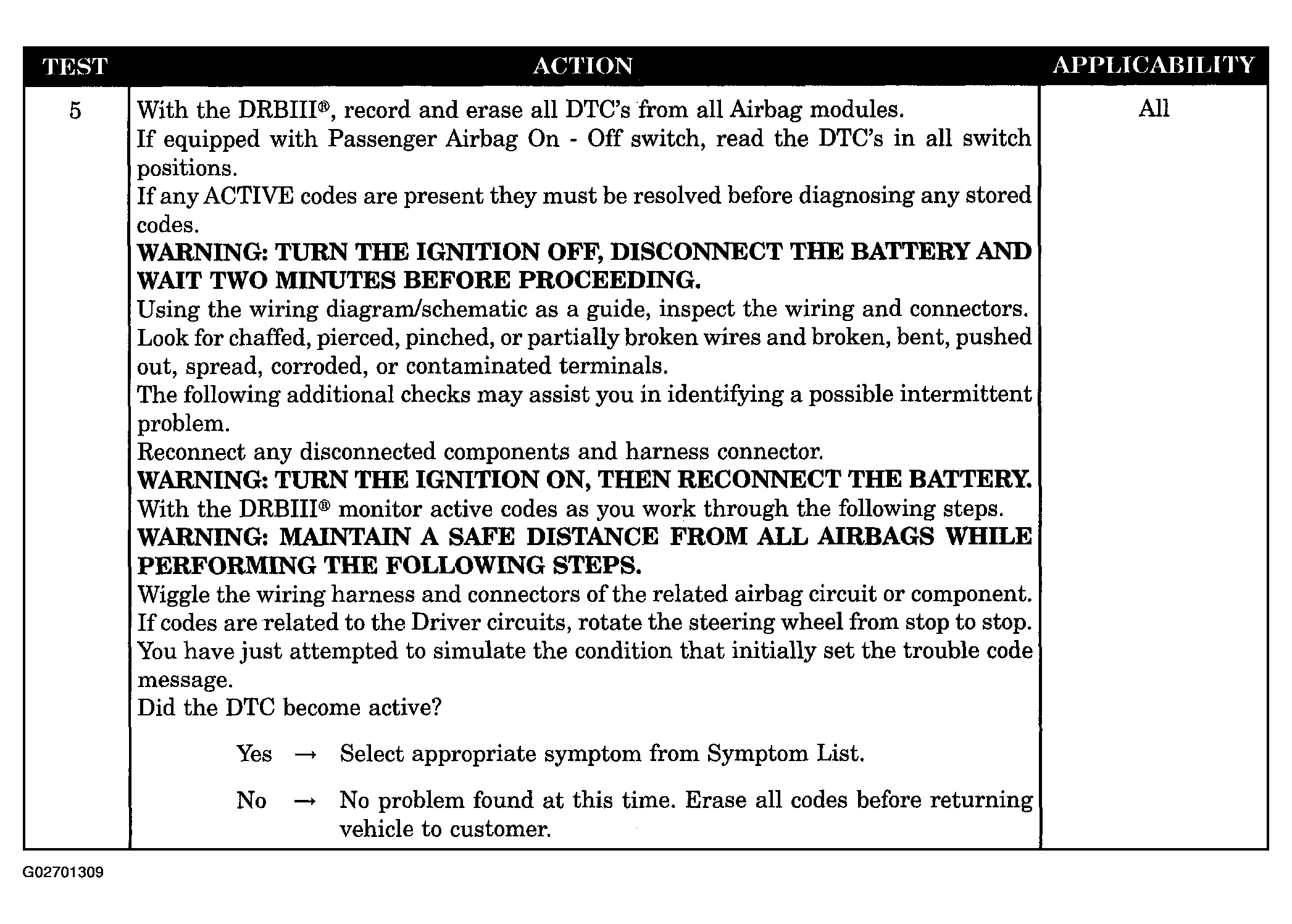

Fig 3: Driver Squib 1 Circuit Open Diagnostic Procedure (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
