Driver Side Impact Sensor 1 Internal 1 Diagnostic Procedure

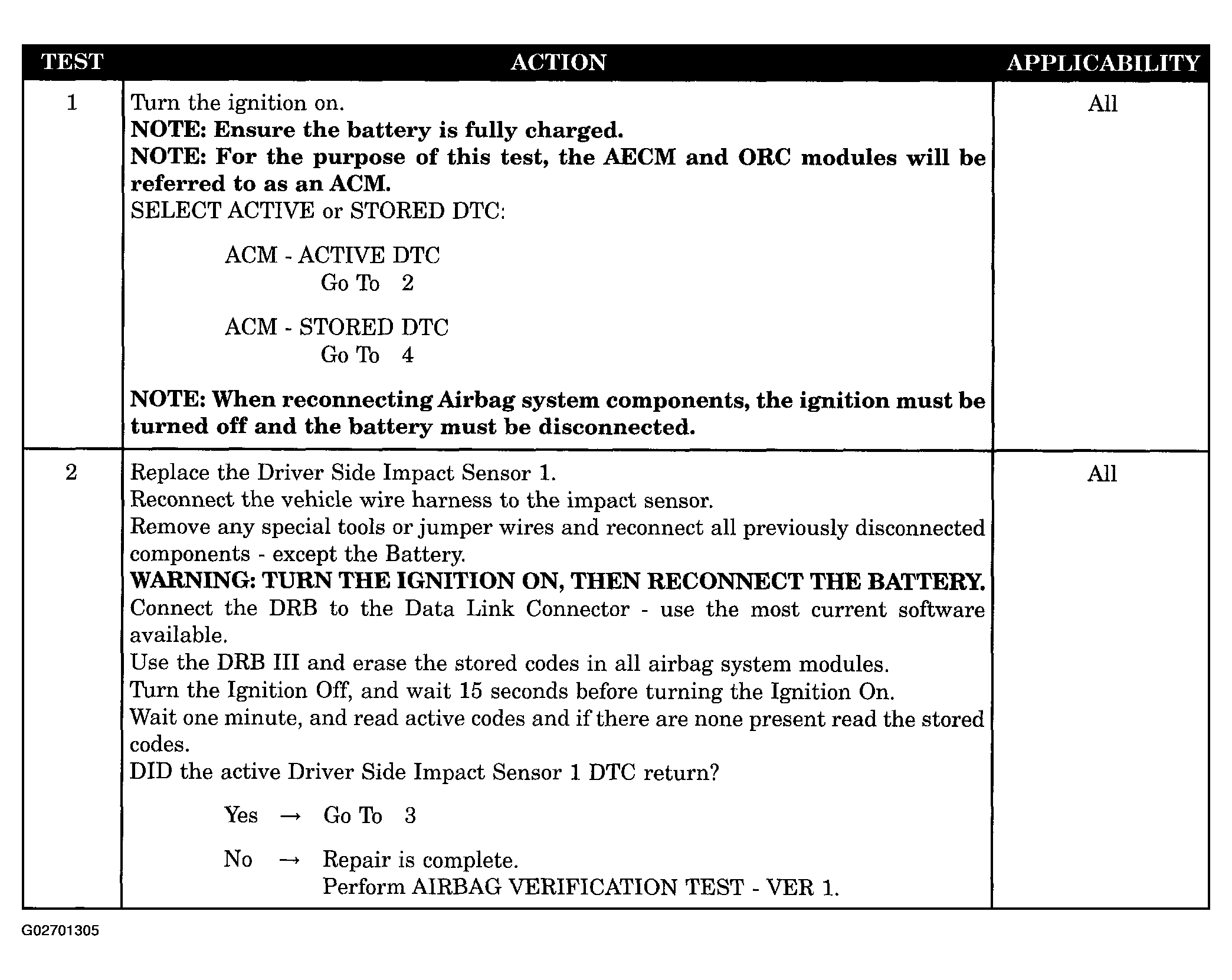

Fig 1: Driver Side Impact Sensor 1 Internal 1 Diagnostic Procedure (1 Of 2)
G02701305Courtesy of DAIMLERCHRYSLER CORP.

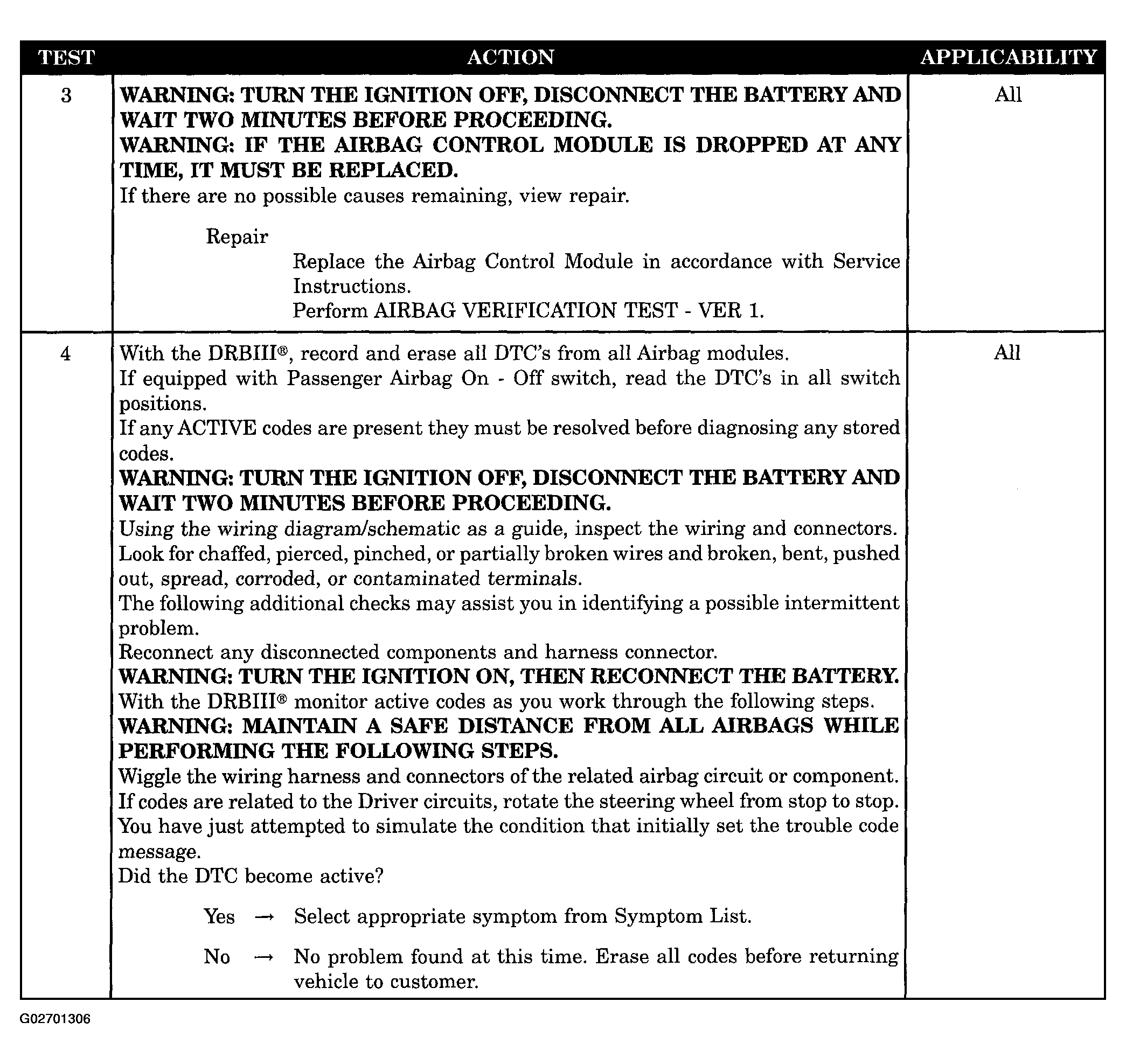

Fig 2: Driver Side Impact Sensor 1 Internal 1 Diagnostic Procedure (2 Of 2)
G02701306Courtesy of DAIMLERCHRYSLER CORP.
