Driver Seat Belt TENSIONER Short To Ground Diagnostic Procedure

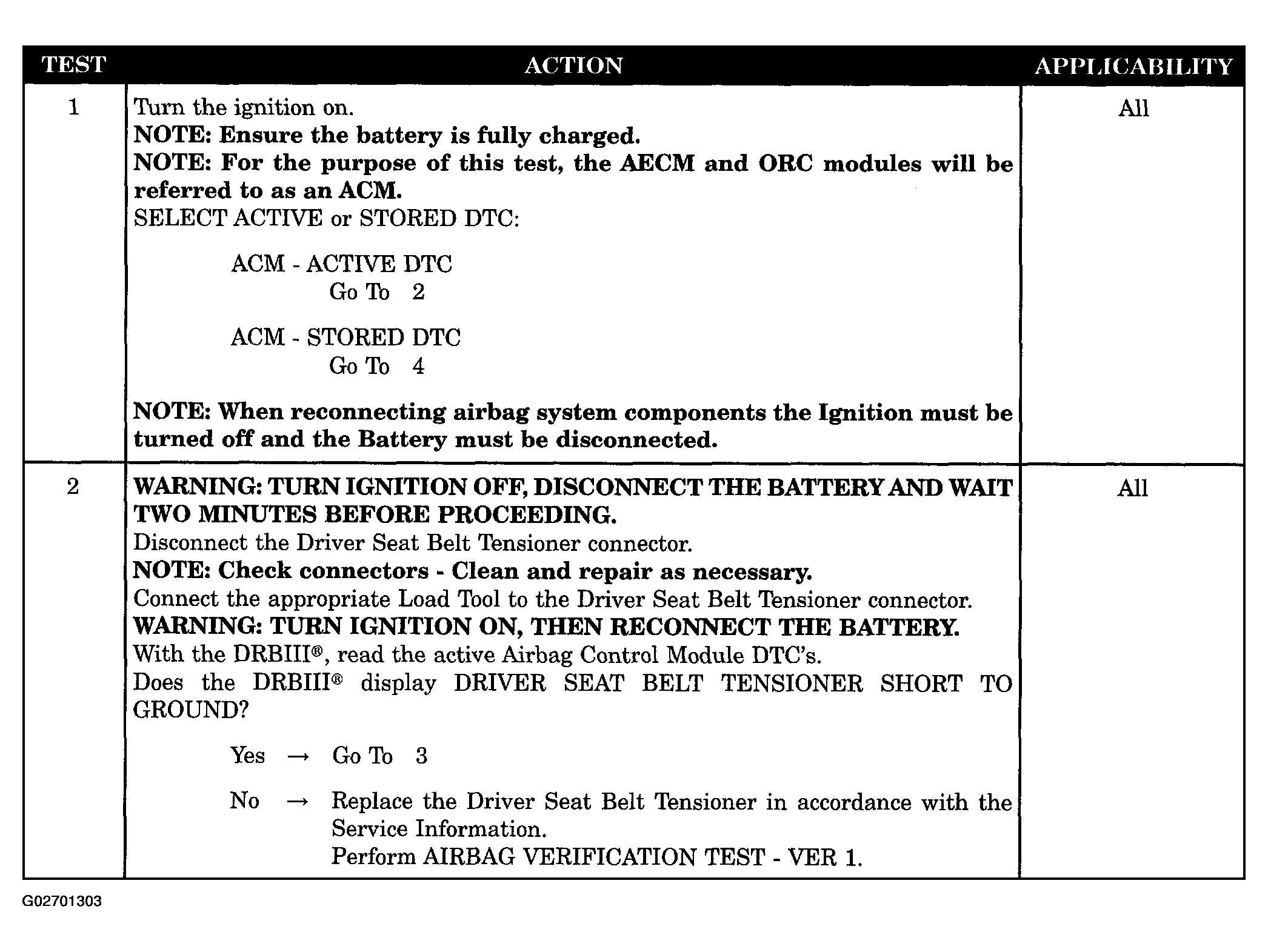

Fig 1: Driver Seat Belt Tensioner Short To Ground Diagnostic Procedure (1 Of 2)
G02701303Courtesy of DAIMLERCHRYSLER CORP.

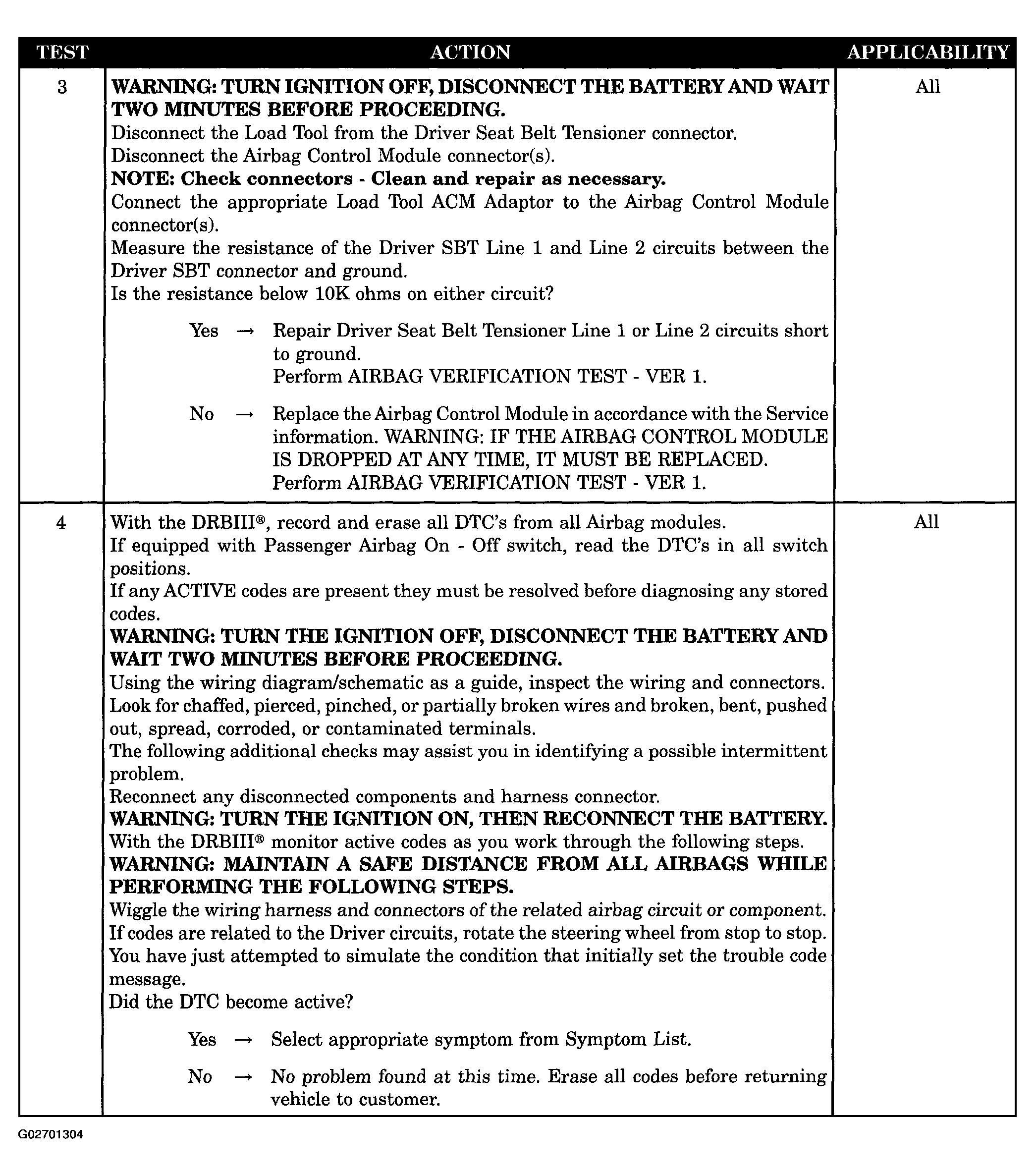

Fig 2: Driver Seat Belt Tensioner Short To Ground Diagnostic Procedure (2 Of 2)
G02701304Courtesy of DAIMLERCHRYSLER CORP.
