Driver Curtain Squib Short To Ground Diagnostic Procedure

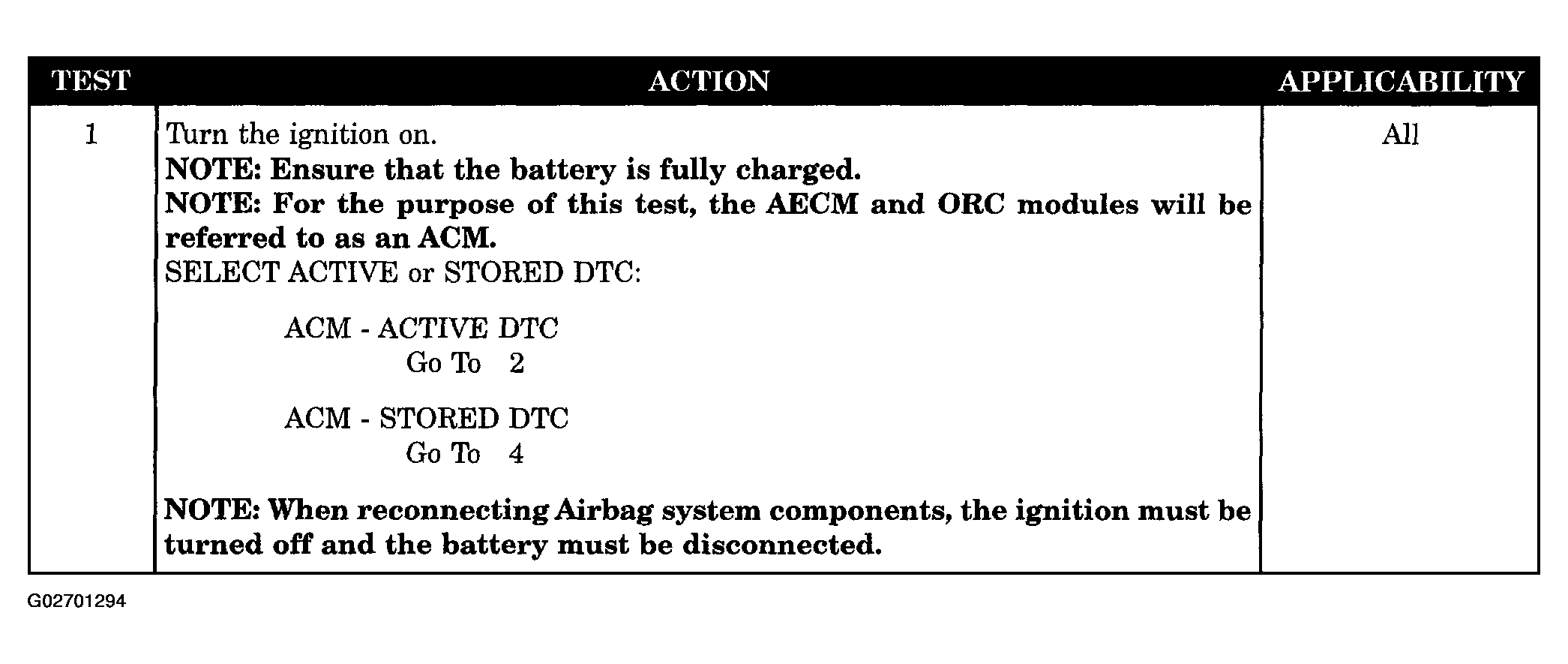

Fig 1: Driver Curtain Squib Short To Ground Diagnostic Procedure (1 Of 3)
G02701294Courtesy of DAIMLERCHRYSLER CORP.

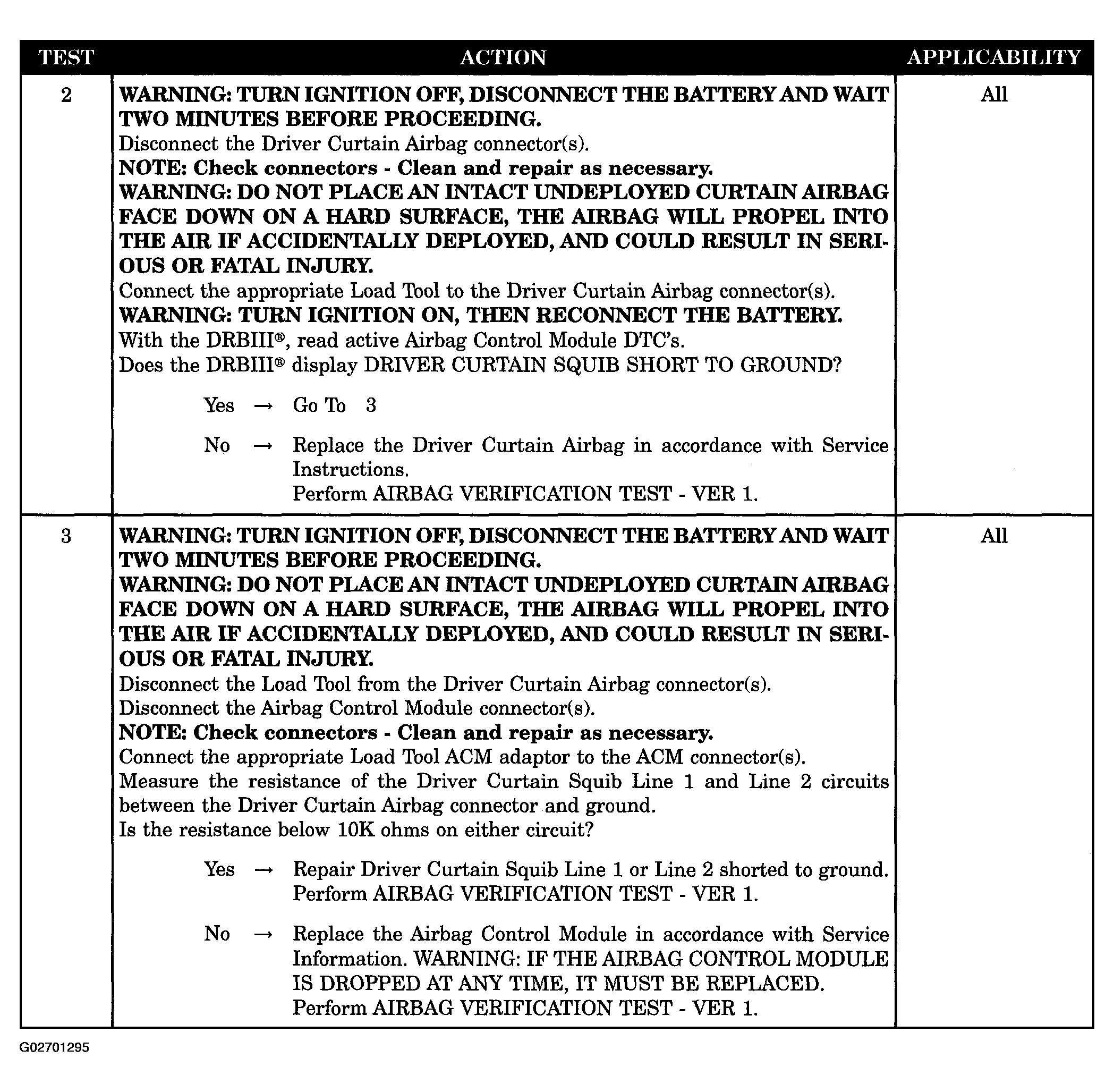

Fig 2: Driver Curtain Squib Short To Ground Diagnostic Procedure (2 Of 3)
G02701295Courtesy of DAIMLERCHRYSLER CORP.

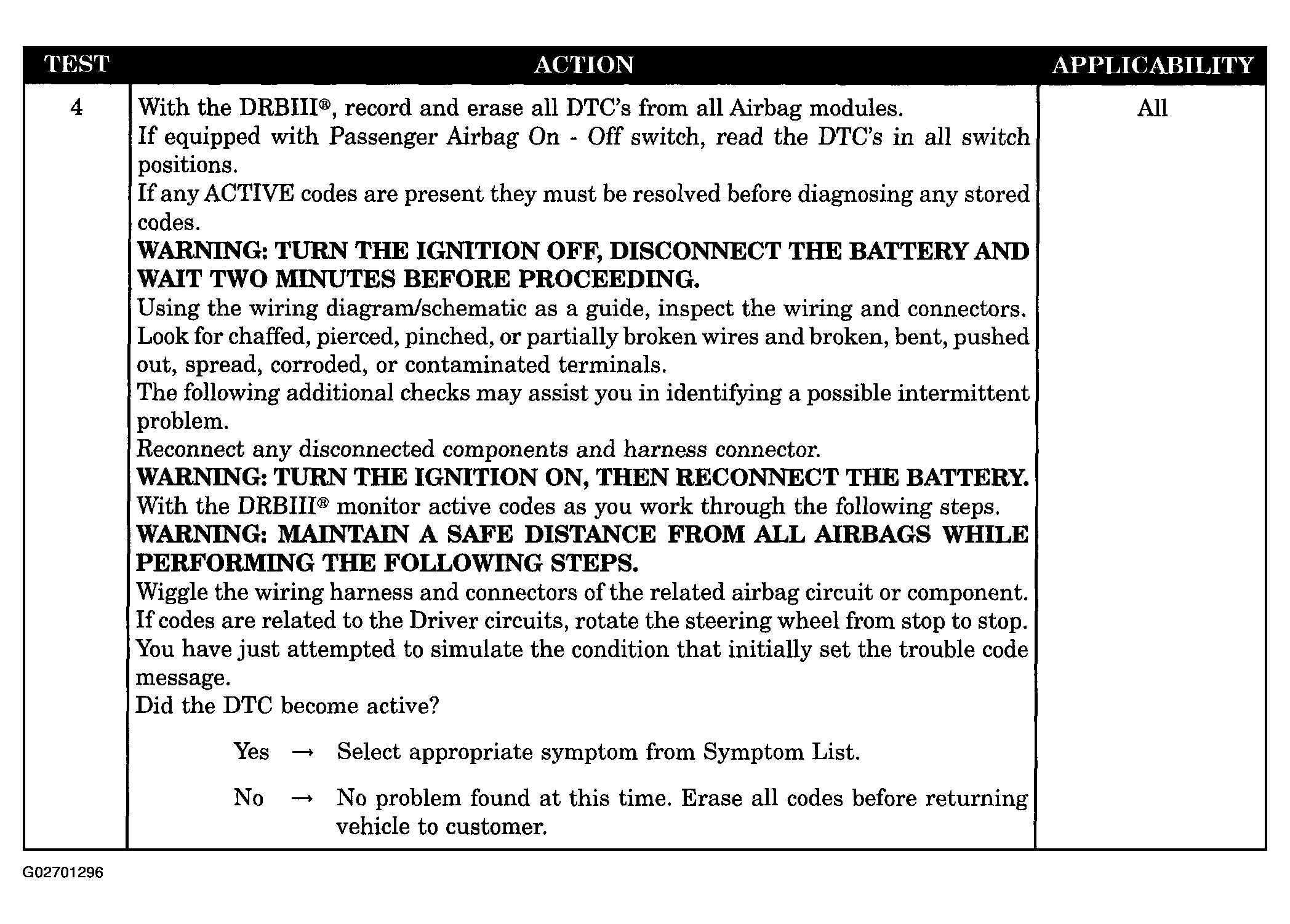

Fig 3: Driver Curtain Squib Short To Ground Diagnostic Procedure (3 Of 3)
G02701296Courtesy of DAIMLERCHRYSLER CORP.
