Driver Curtain Squib Short To Battery Diagnostic Procedure

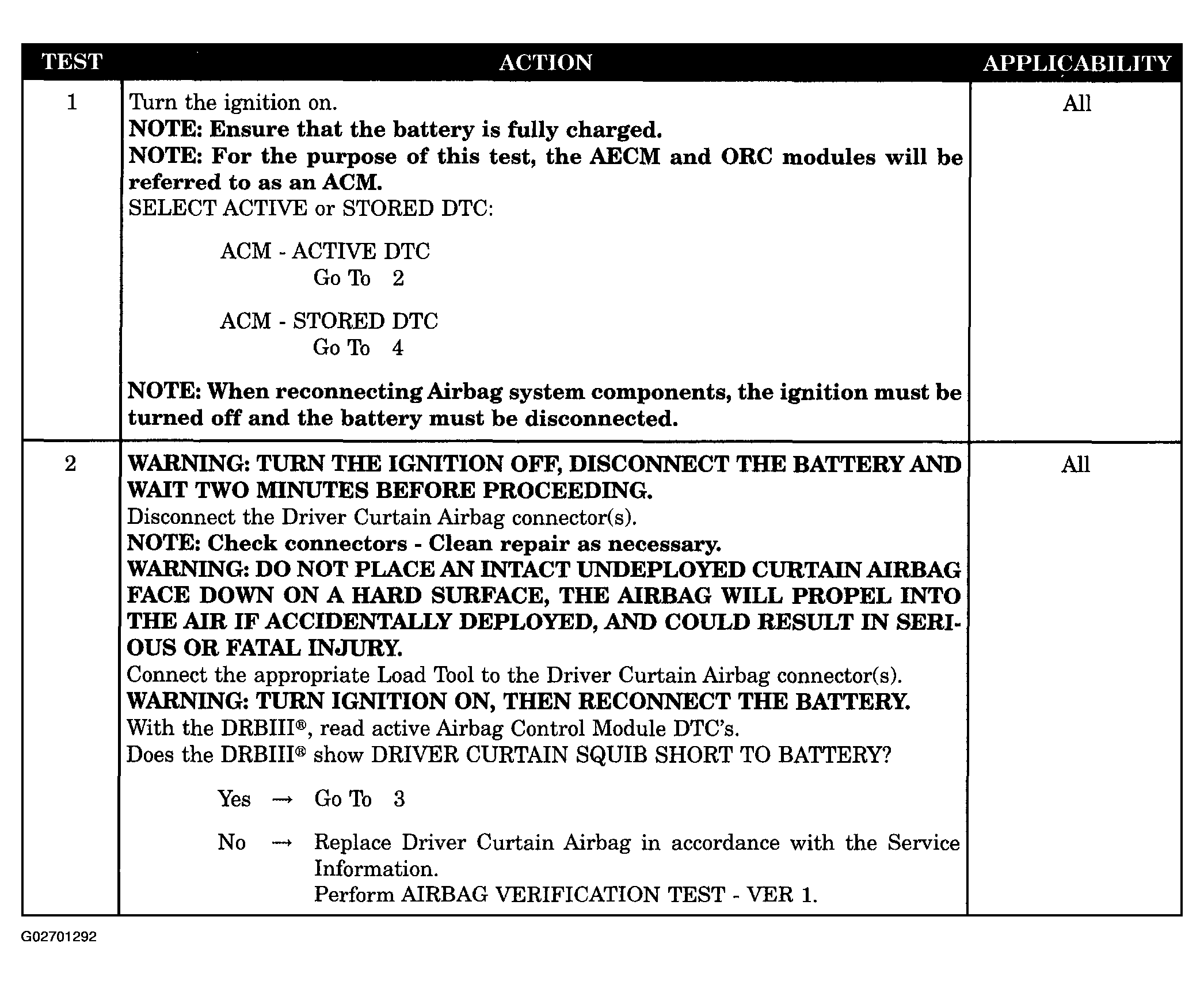

Fig 1: Driver Curtain Squib Short To Battery Diagnostic Procedure (1 Of 2)
G02701292Courtesy of DAIMLERCHRYSLER CORP.

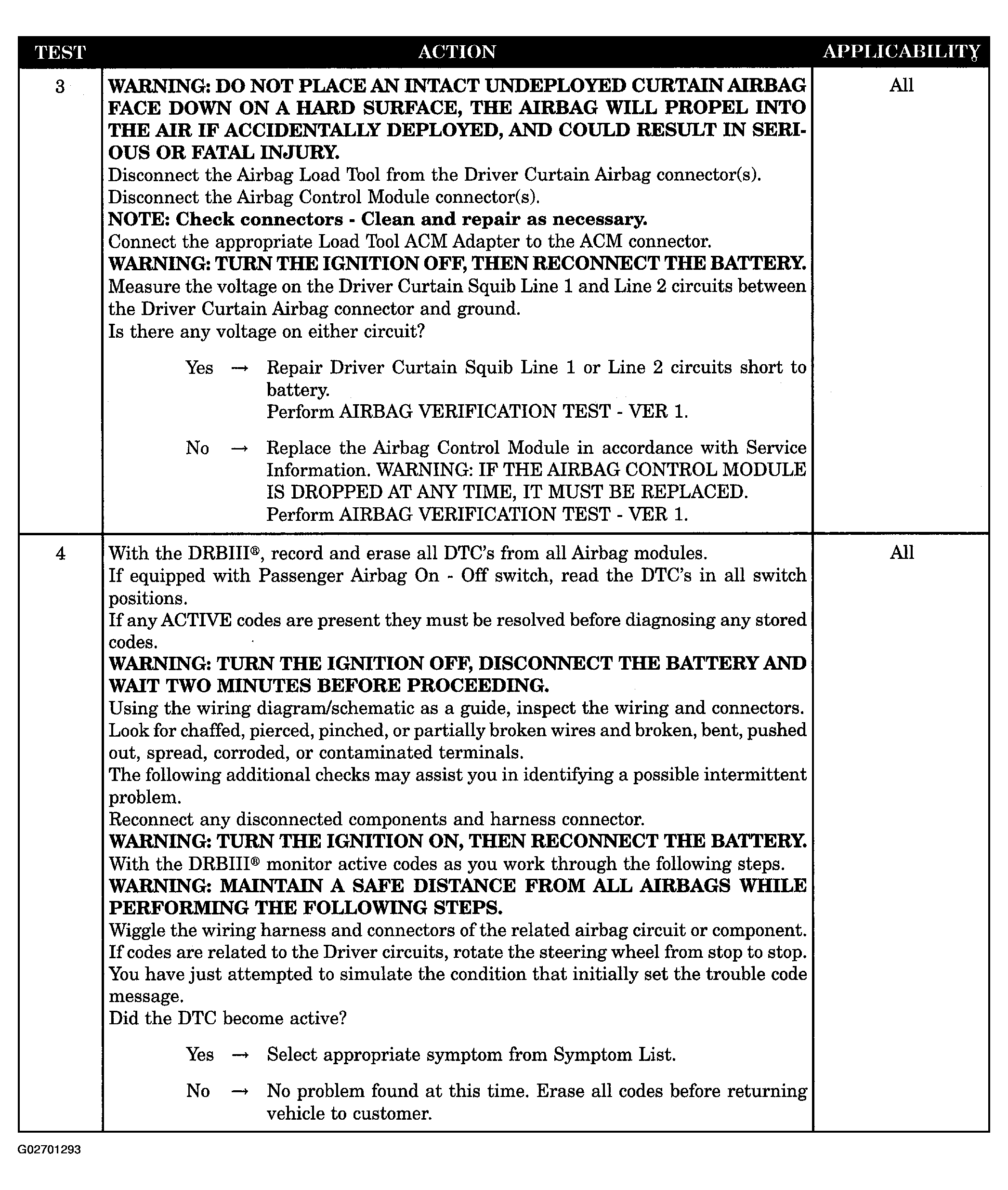

Fig 2: Driver Curtain Squib Short To Battery Diagnostic Procedure (2 Of 2)
G02701293Courtesy of DAIMLERCHRYSLER CORP.
