Cluster Message Mismatch Diagnostic Procedure

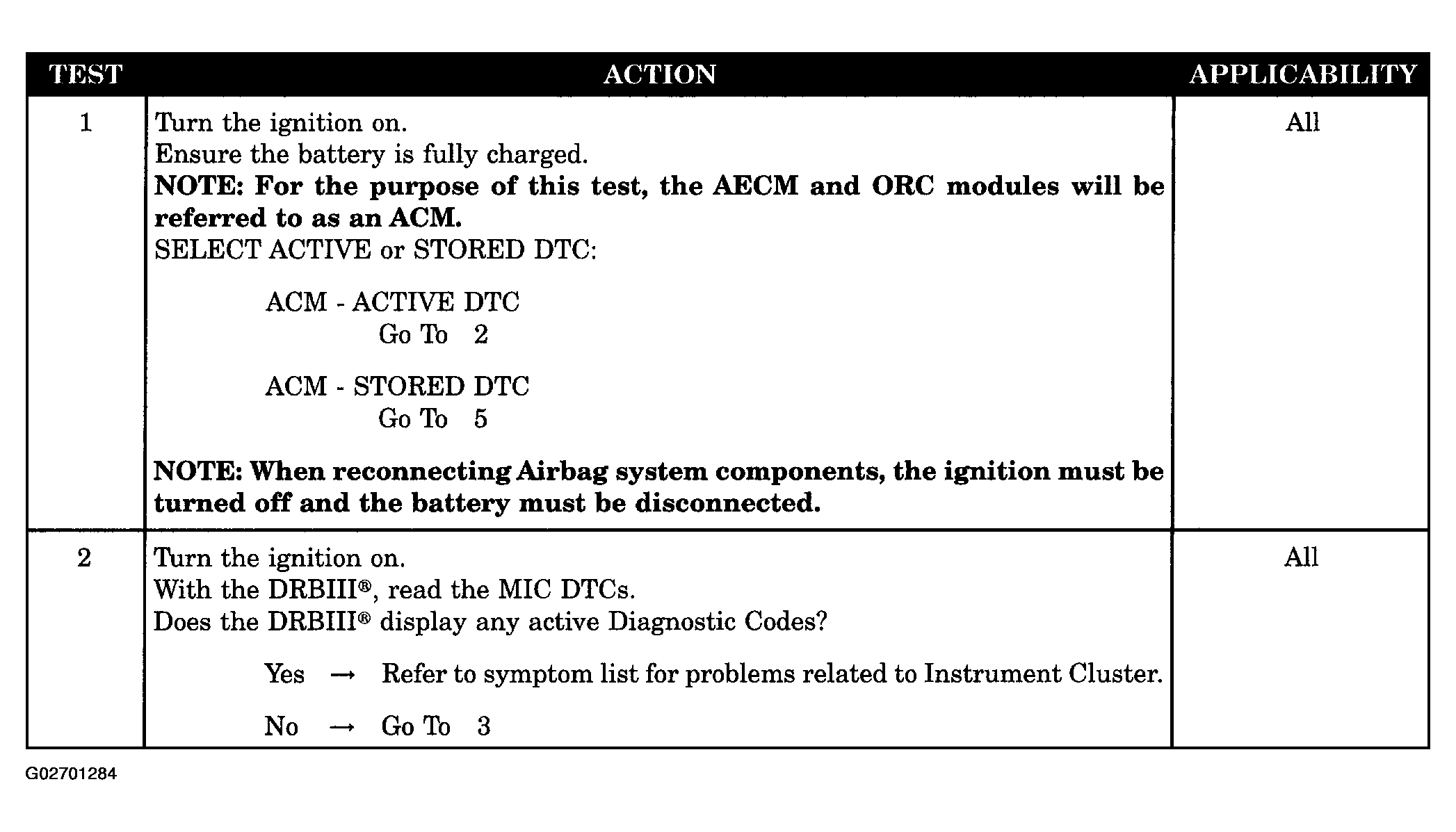

Fig 1: Cluster Message Mismatch Diagnostic Procedure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

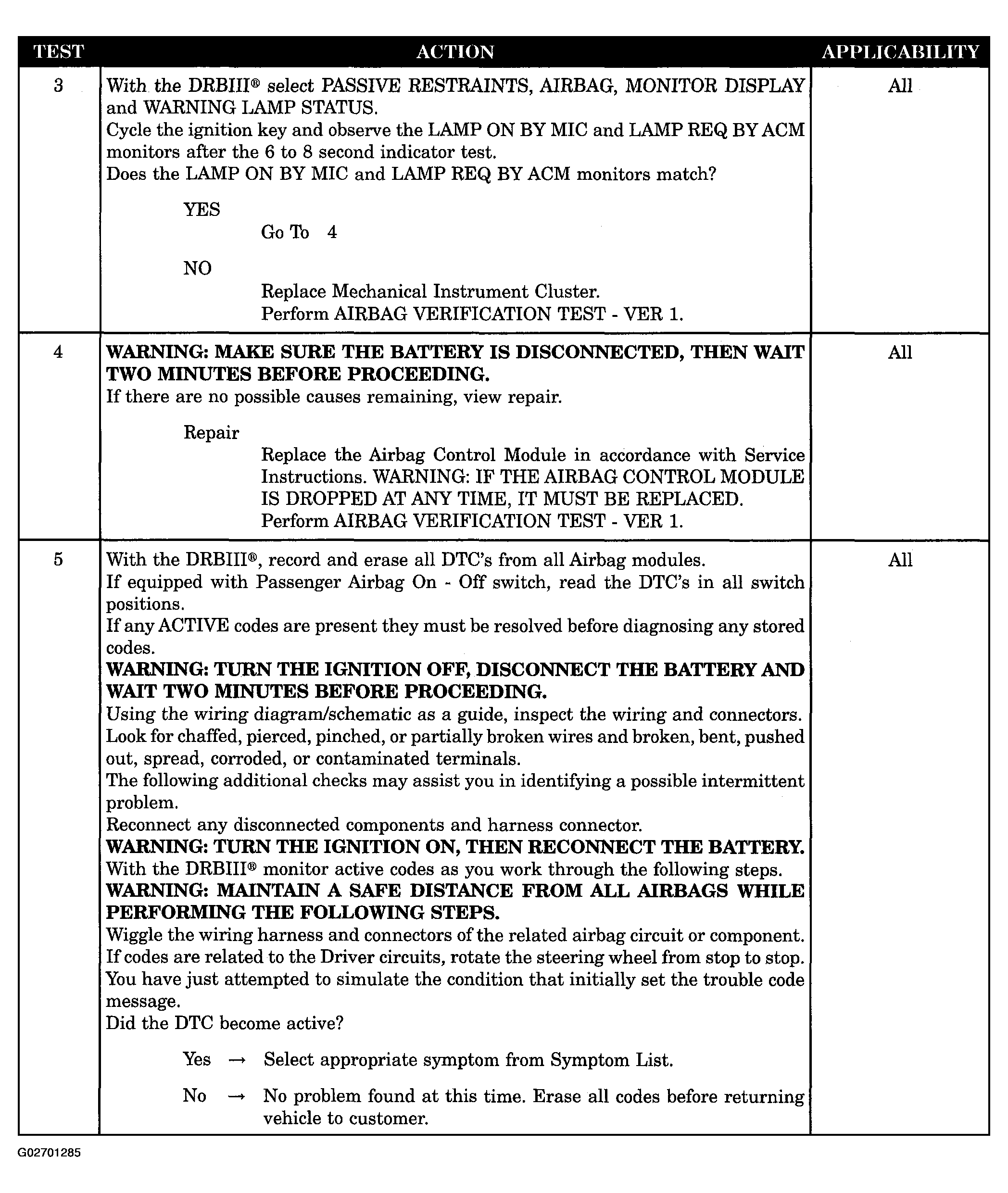

Fig 2: Cluster Message Mismatch Diagnostic Procedure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
