Calibration Mismatch Diagnostic Procedures

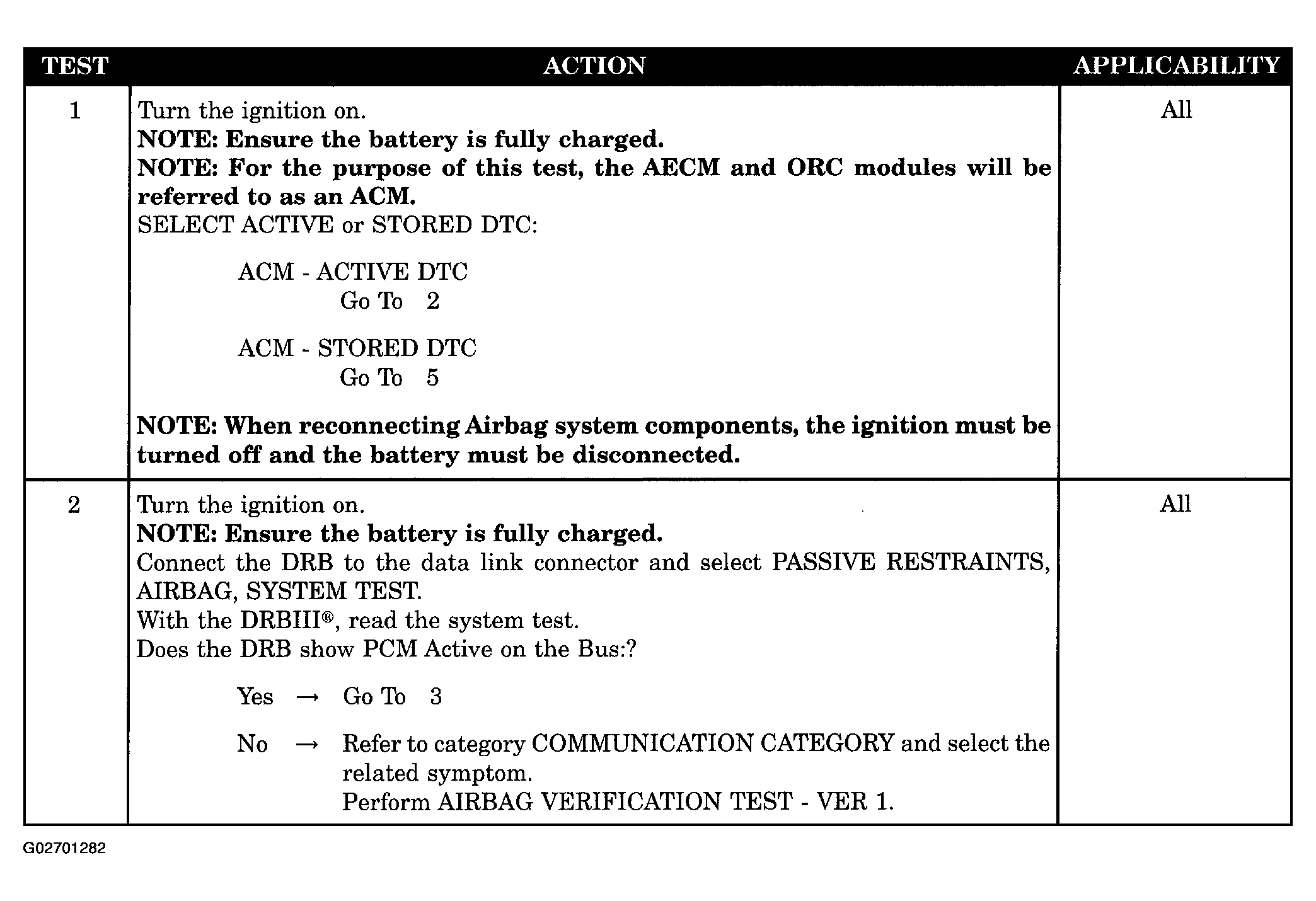

Fig 1: Calibration Mismatch Diagnostic Procedures (1 Of 2)
G02701282Courtesy of DAIMLERCHRYSLER CORP.

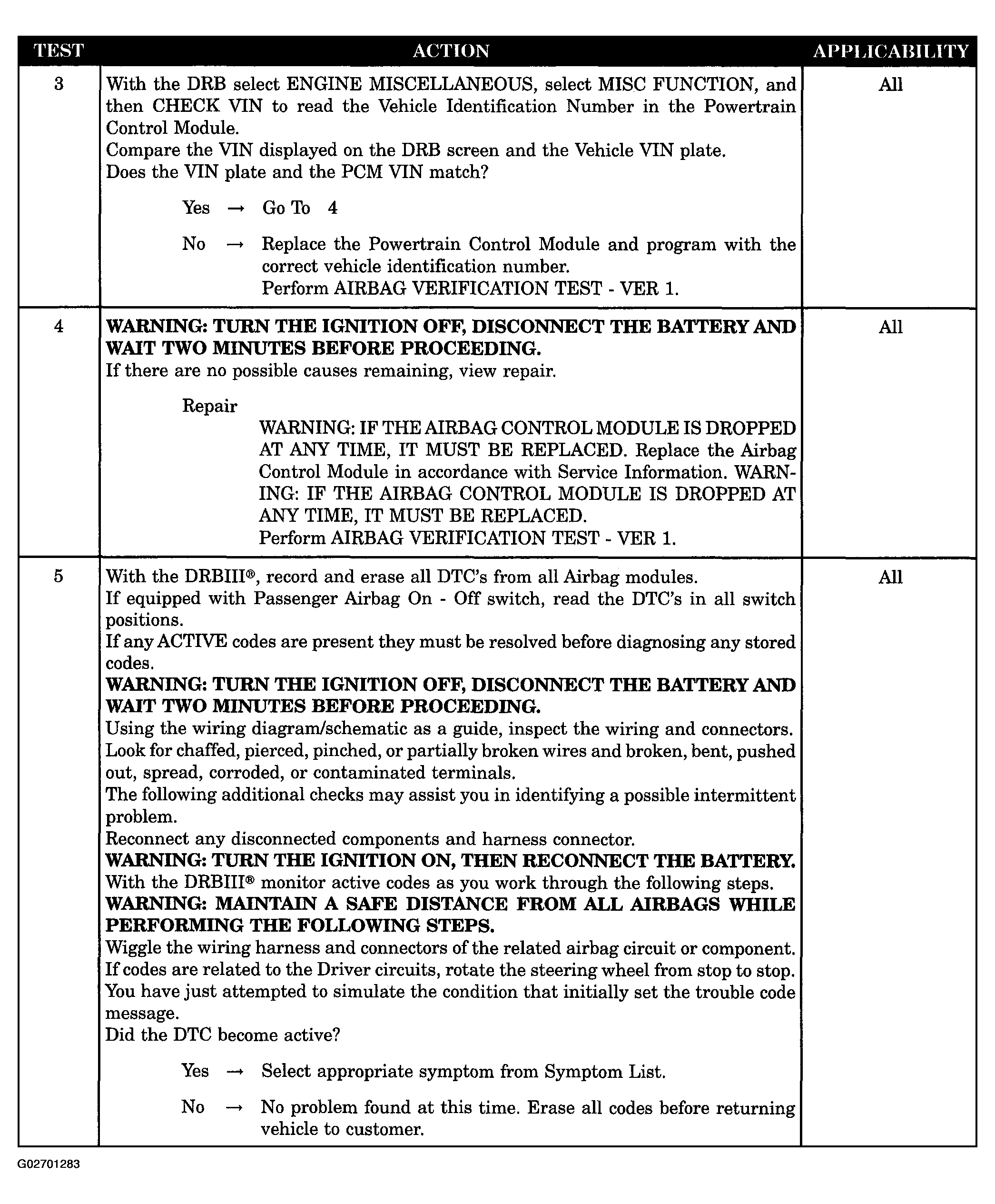

Fig 2: Calibration Mismatch Diagnostic Procedures (2 Of 2)
G02701283Courtesy of DAIMLERCHRYSLER CORP.
