Red Brake Warning Indicator

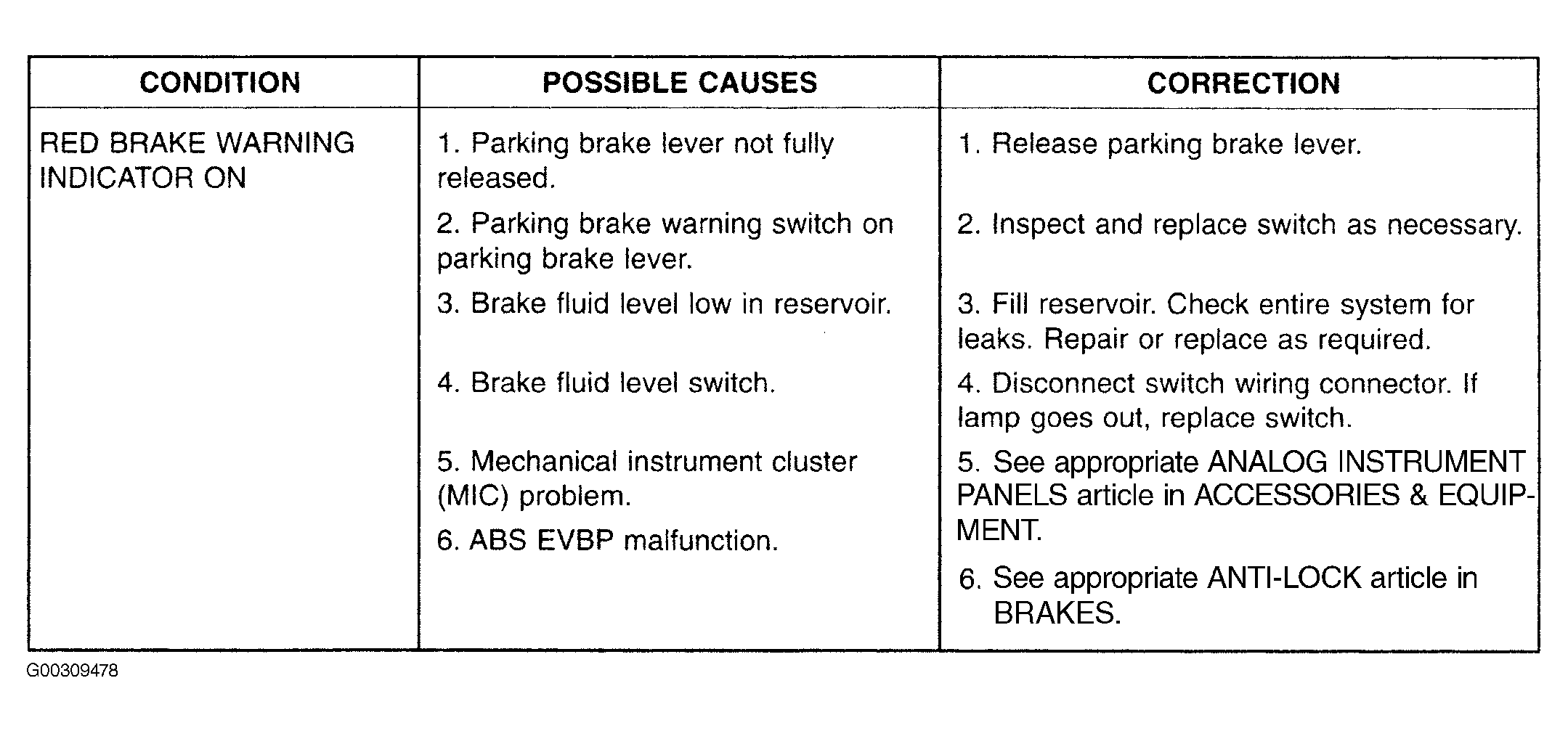

Fig 1: Identifying Red Brake Warning Indicator Diagnosis Chart
G00309478Courtesy of CHRYSLER CORP.
