Sunroof Glass Panel Adjustment
- Move the sunshade rearward to the open position.
- Move the sunroof glass panel to the fully closed position.

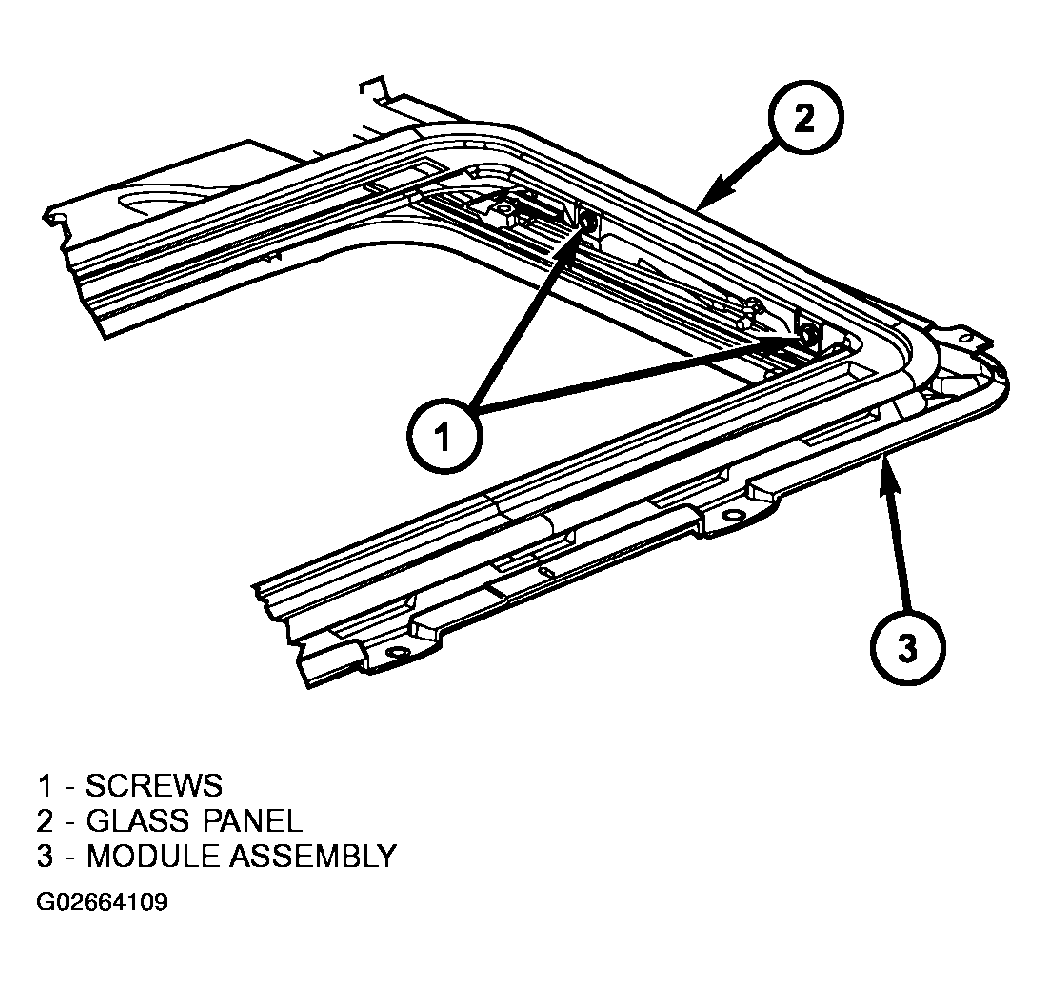

- Loosen the forward attaching screws on each side enough to make the front of the glass to adjust up or down (Figure ).
- Adjust the front surface of the sunroof glass panel 1.75 mm to 2.75 mm (0.07 in. to 0.11 in.) below the top surface of the roof.
- Tighten the front glass panel attaching two screws to 3.5 N.m (31 in. lbs.) torque (Figure ).
- Loosen the rear screws on each side enough to make the rear adjustment (Figure ).
- Adjust the rear surface of the sunroof glass panel 0.75 mm to .75 mm (0.03 in. to 0.07 in.) below the top surface of the roof.
- Tighten the rear glass panel attaching two screws to 3.5 N.m (31 in. lbs.) torque (Figure ).
- Check for proper fit. If not OK, repeat glass panel adjustment.
NOTE:
Top of the glass seal is 2.5 mm (0.1 in.) higher than the surface of the sunroof glass. Measure at 300 mm (11.8 in.) outboard of the center line of the vehicle.
