Rear Bumper Fascia: Removal

  1. Open liftgate.
  2. Remove the rubber body plugs or mastic tape patches, if equipped.
  3. Remove nuts attaching fascia to lower floor closure (Fig 1 ).

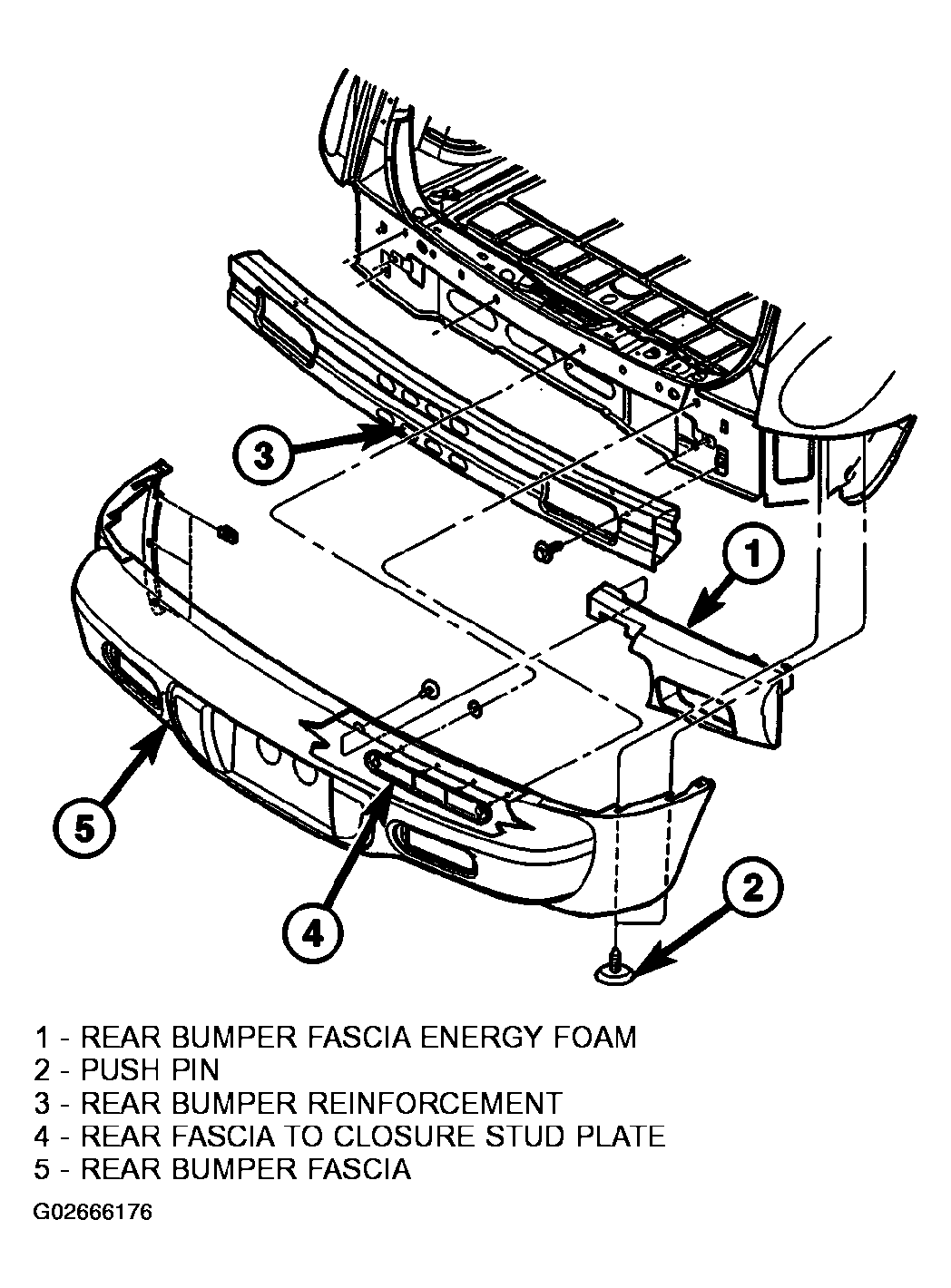

    Fig 1: Removing Rear Bumper Fascia
    G02666176Courtesy of DAIMLERCHRYSLER CORP.
  4. Raise vehicle on hoist.
  5. Disconnect license lamp.
  6. Remove splash shield from fascia in the wheel opening area (Refer to FRONT END SPLASH SHIELDS - REMOVAL ).
  7. Remove screws attaching fascia to lower quarter panels.
  8. Remove fascia from vehicle.
