Front Bumper Fascia: Installation

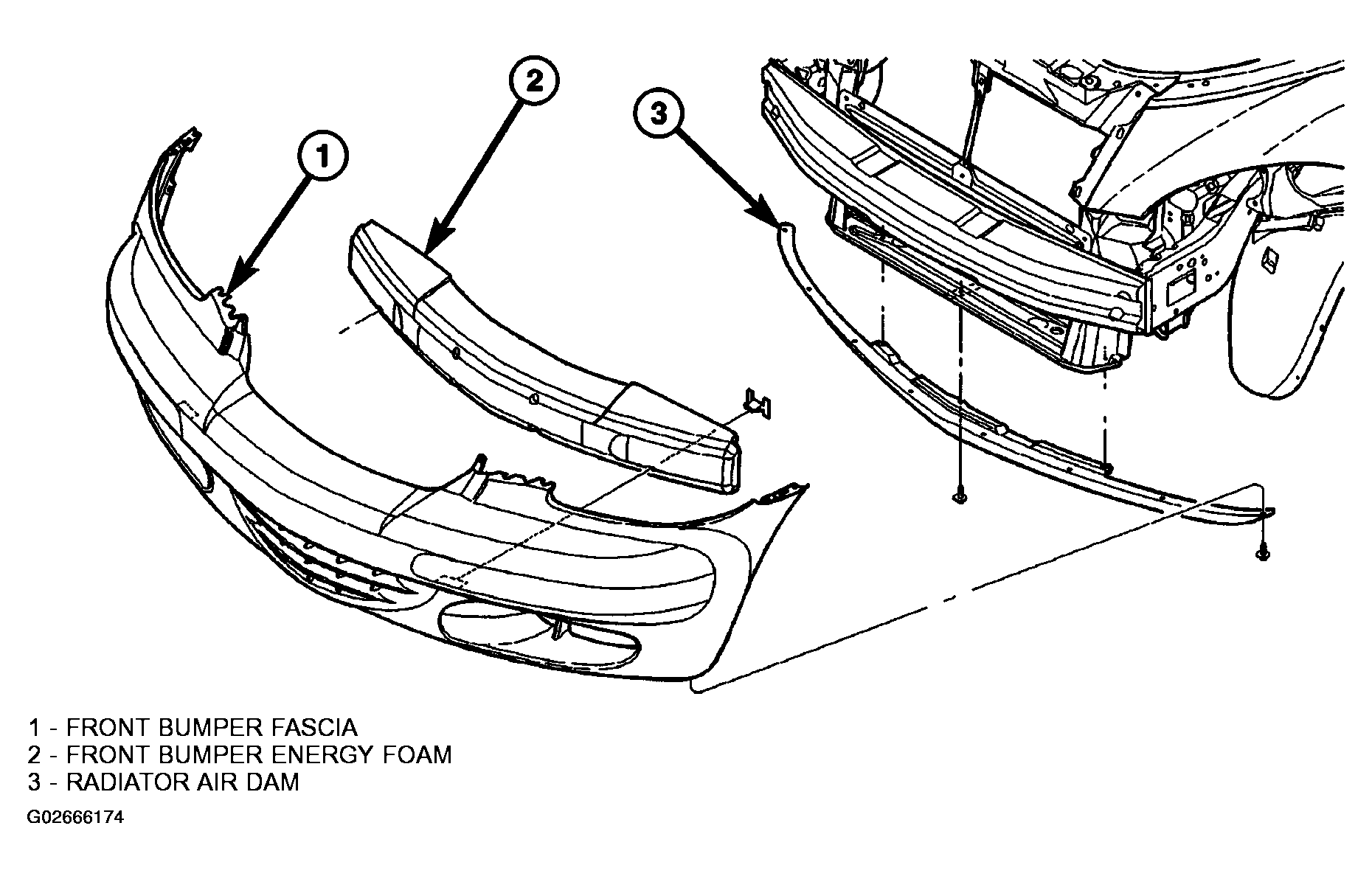

  1. Position fascia on vehicle (Figure ).
  2. Install splash shield attaching screws.
  3. Install air dam fasteners to crossmember.

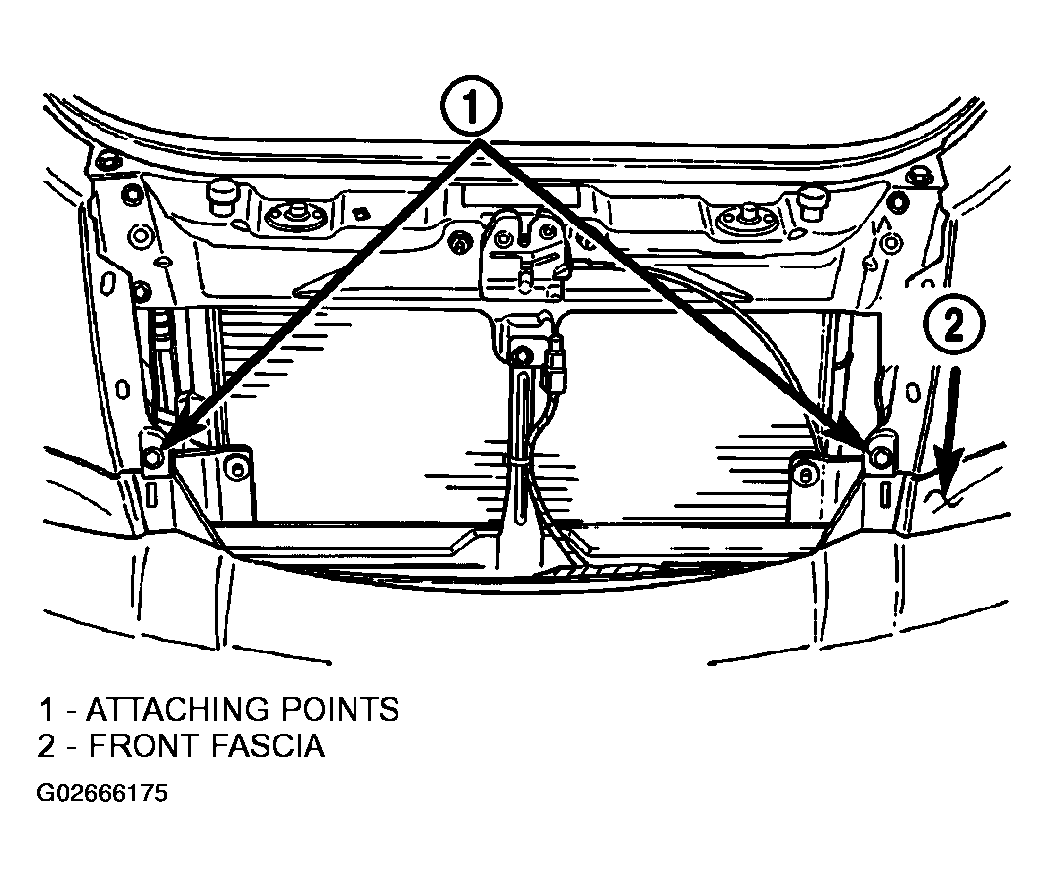

  4. Install fasteners attaching fascia to fender flange (Figure ).
  5. Install nuts attaching front bumper fascia to bottom of fender flange.
  6. Install Grille and attaching screws.
