Glove Box Latch: Installation

  1. Reassemble glove box assembly (Figure ) and (Fig 1 ).

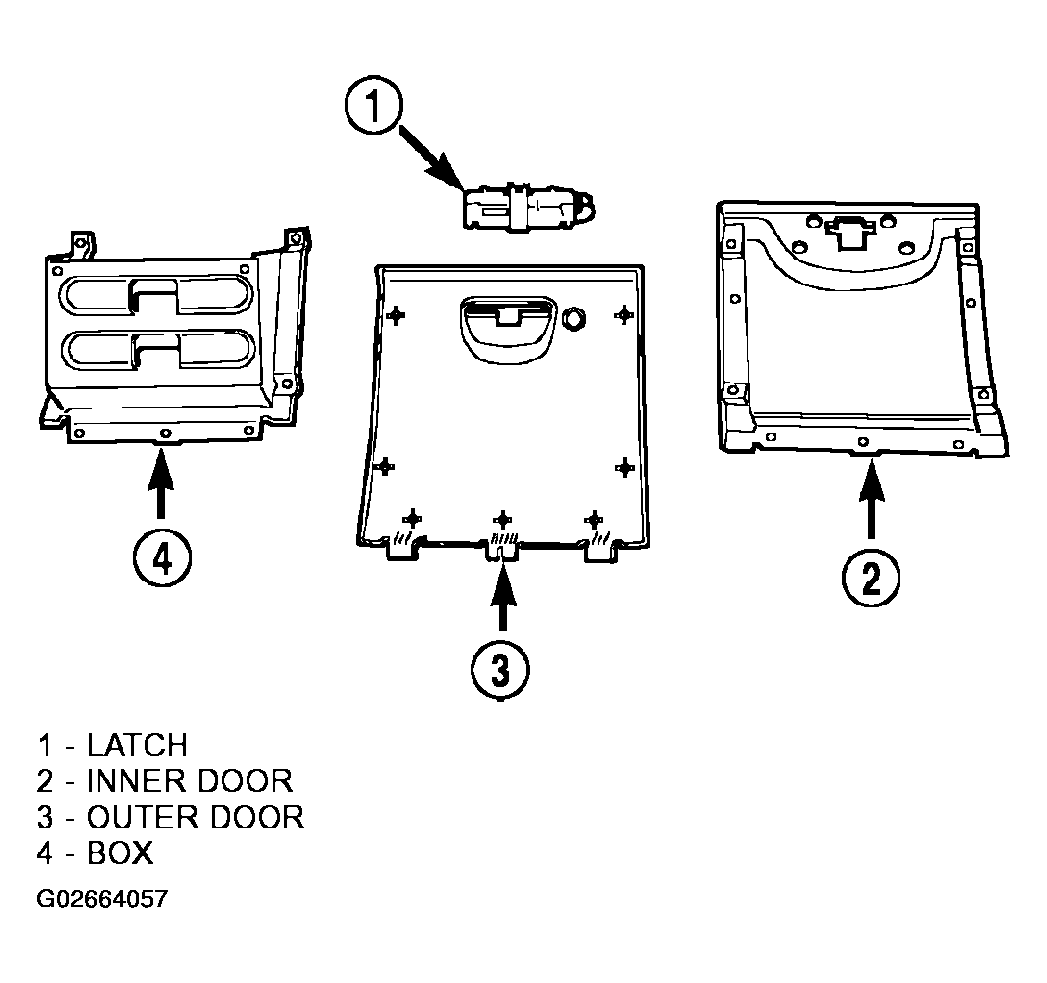

    Fig 1: Identifying Glove Box Assembly Breakdown
    G02664057Courtesy of DAIMLERCHRYSLER CORP.
  2. Install glove box assembly. Refer to GLOVE BOX  .
  3. Close passenger door.
