Vehicle Theft Security System

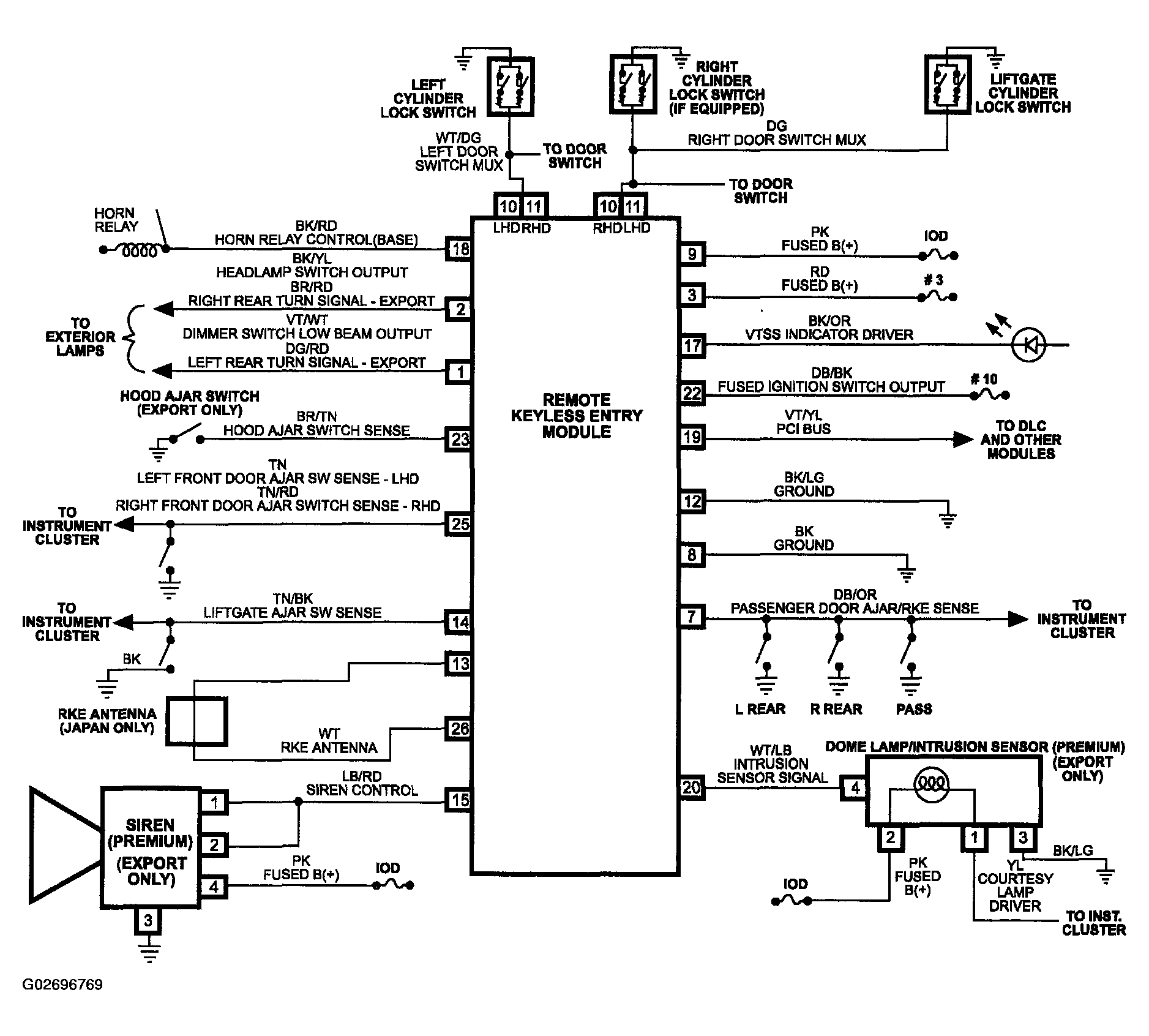

Fig 1: Schematic Diagram Vehicle Theft Security System
G02696769Courtesy of DAIMLERCHRYSLER CORP.
