Power Door Locks: Notes

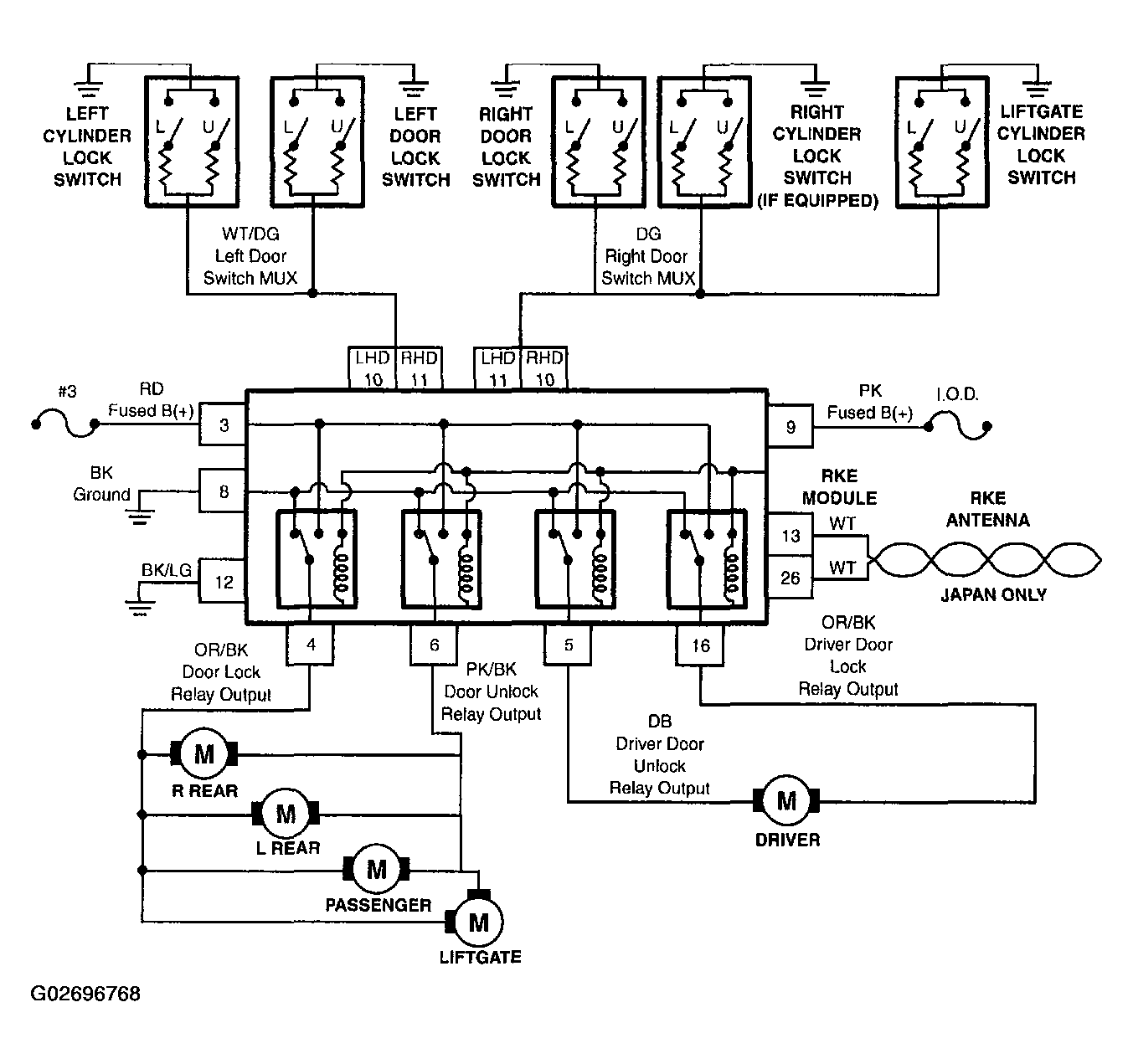

Fig 1: Schematic Diagram Power Door Locks

G02696768

Courtesy of DAIMLERCHRYSLER CORP.
