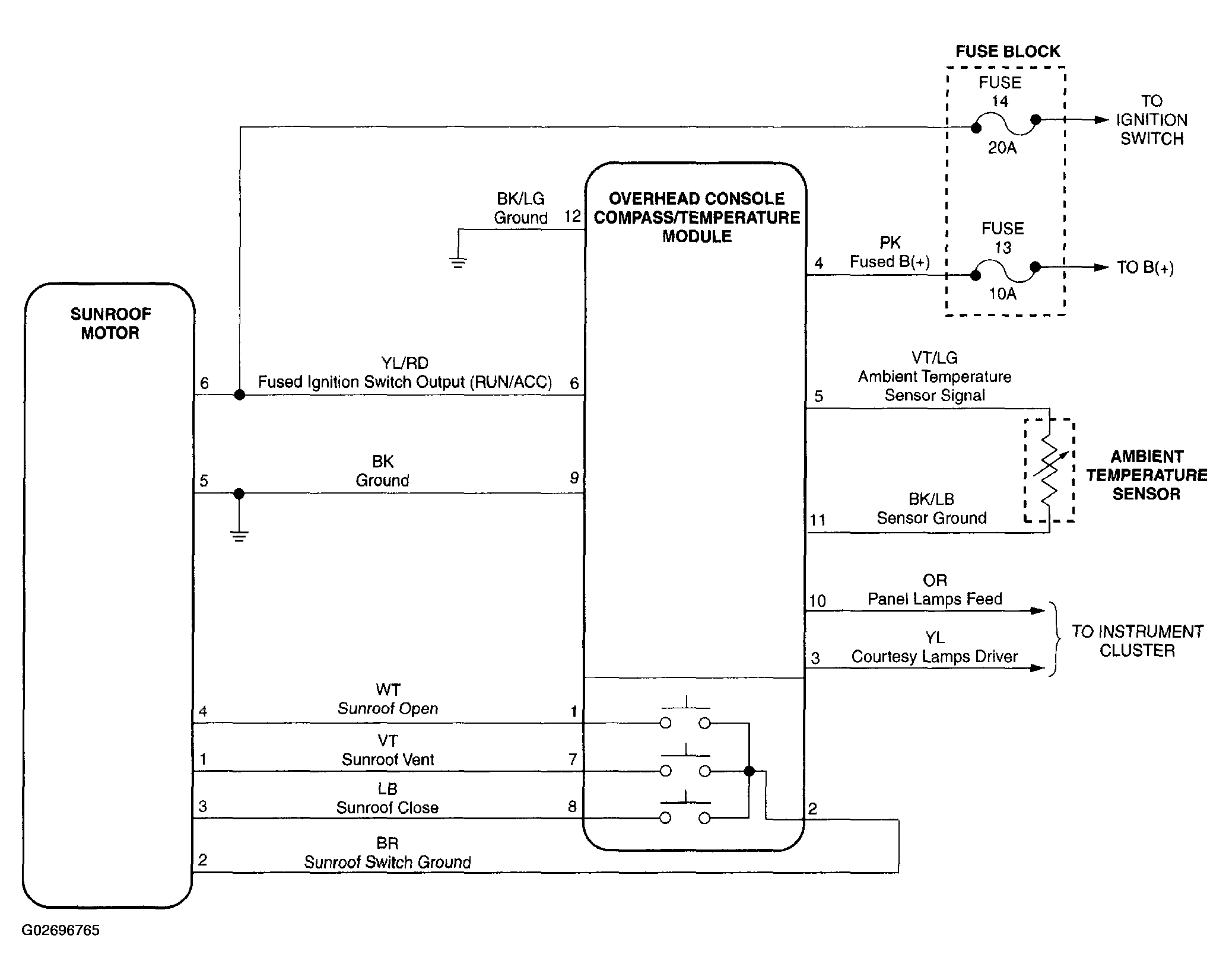

Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Schematic Diagrams >> Compass/Temperature Module
