Schematic Diagrams: Communication

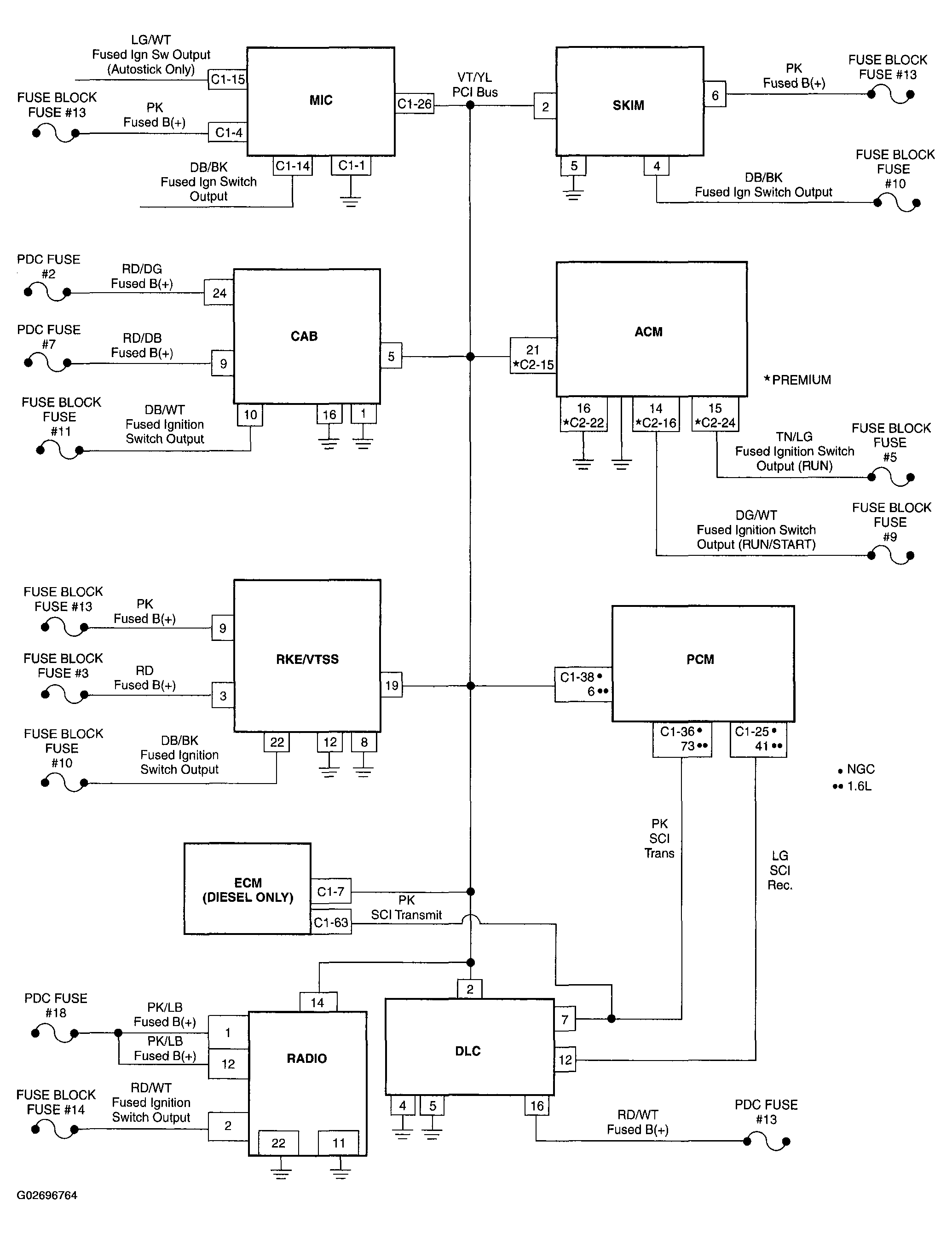

Fig 1: Schematic Diagram Communication

G02696764

Courtesy of DAIMLERCHRYSLER CORP.
