Verification Tests

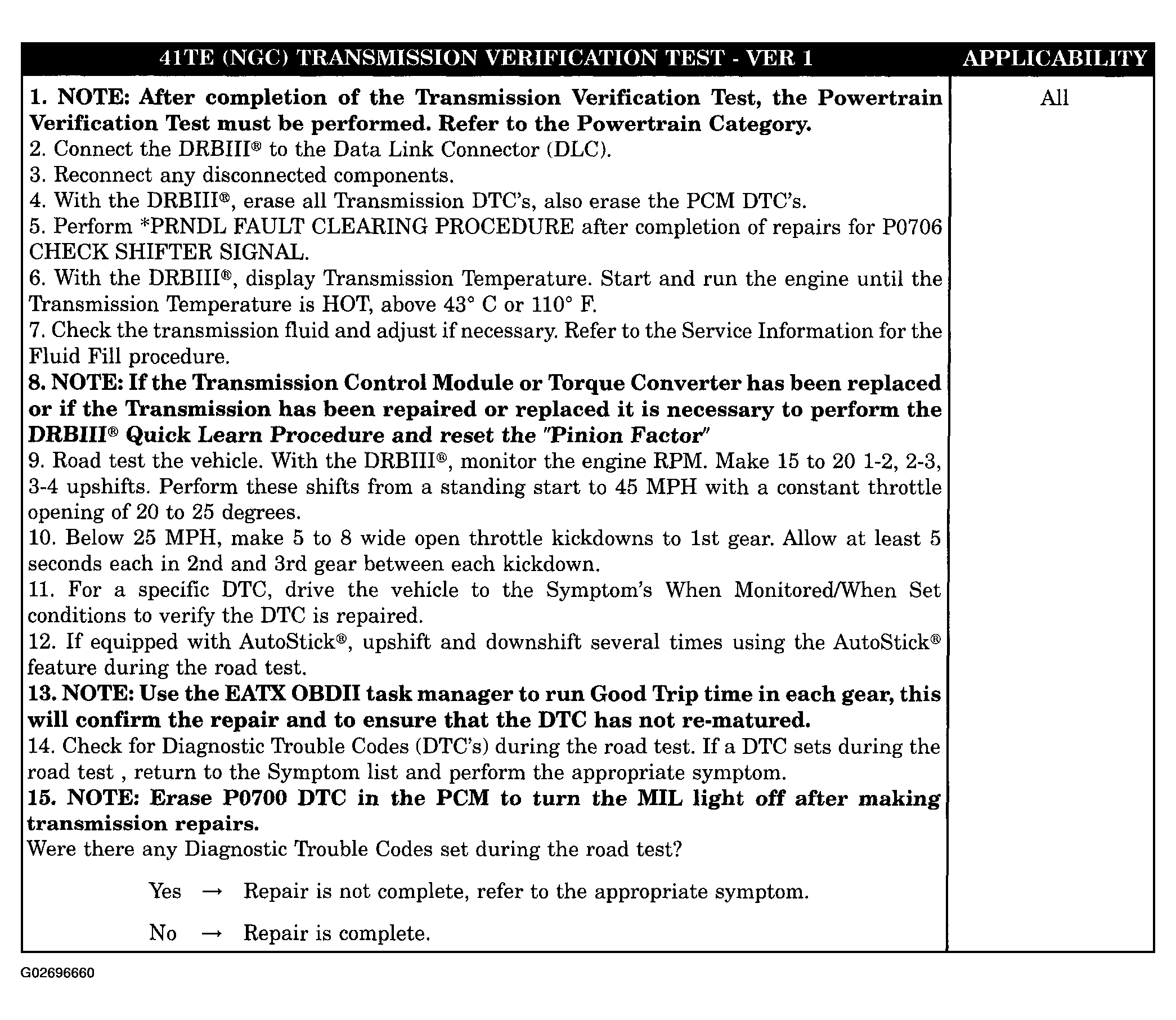

Fig 1: 41TE (NGC) Transmission Verification Tests Ver 1
G02696660Courtesy of DAIMLERCHRYSLER CORP.

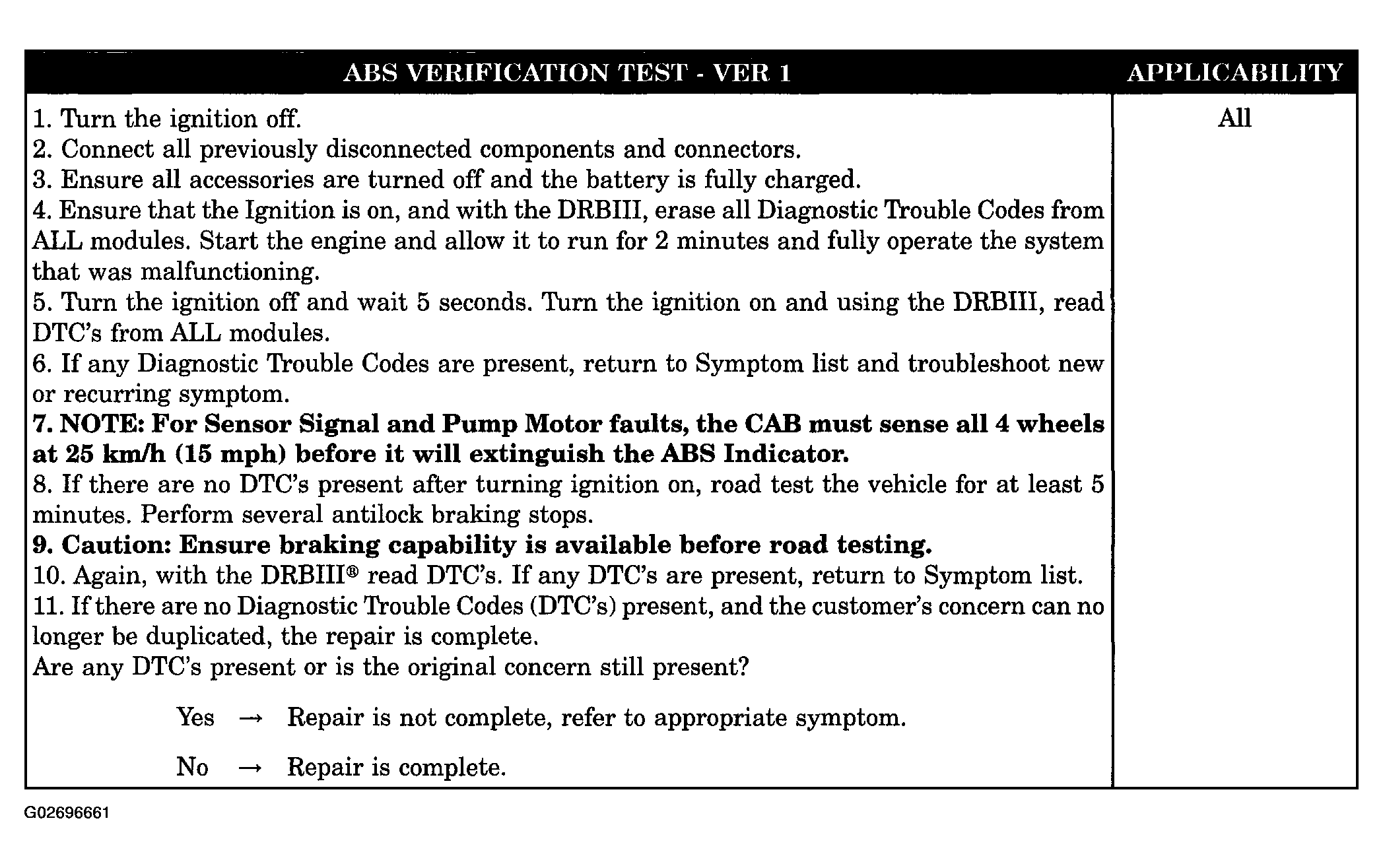

Fig 2: ABS Verification Test Ver 1
G02696661Courtesy of DAIMLERCHRYSLER CORP.

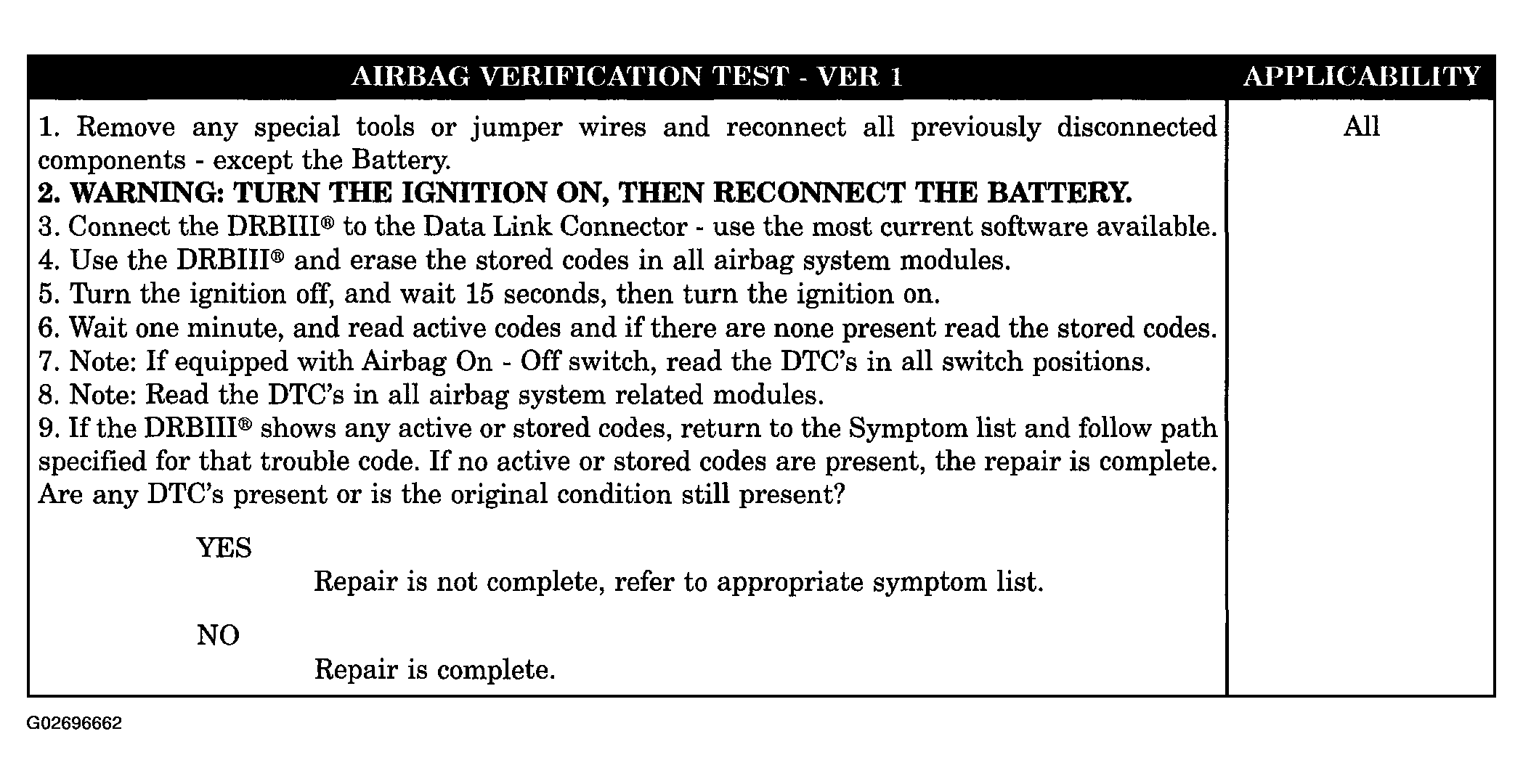

Fig 3: Airbag Verification Test Ver 1 (1 Of 2)
G02696662Courtesy of DAIMLERCHRYSLER CORP.

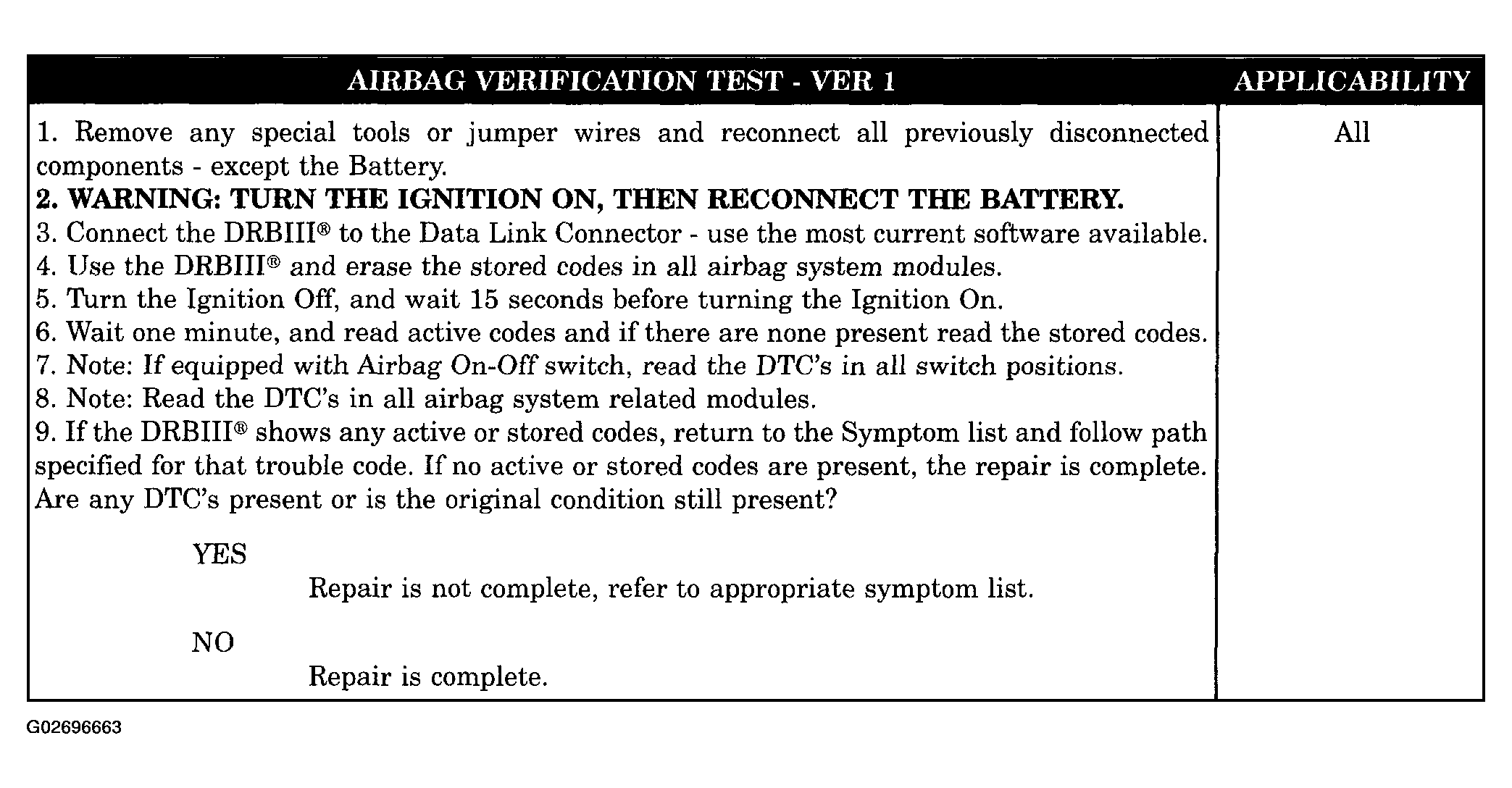

Fig 4: Airbag Verification Test Ver 1 (1 Of 2)
G02696663Courtesy of DAIMLERCHRYSLER CORP.

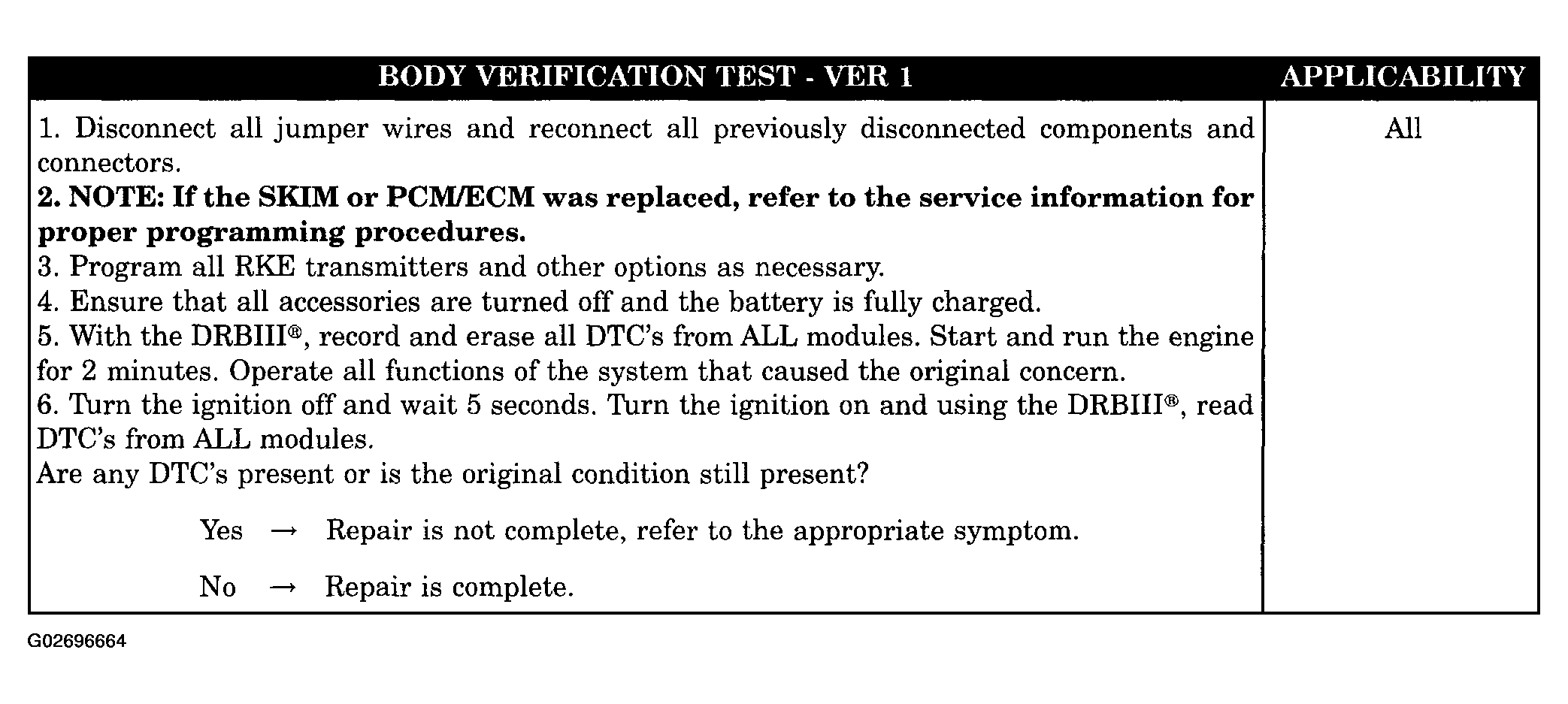

Fig 5: Body Verification Test Ver 1
G02696664Courtesy of DAIMLERCHRYSLER CORP.

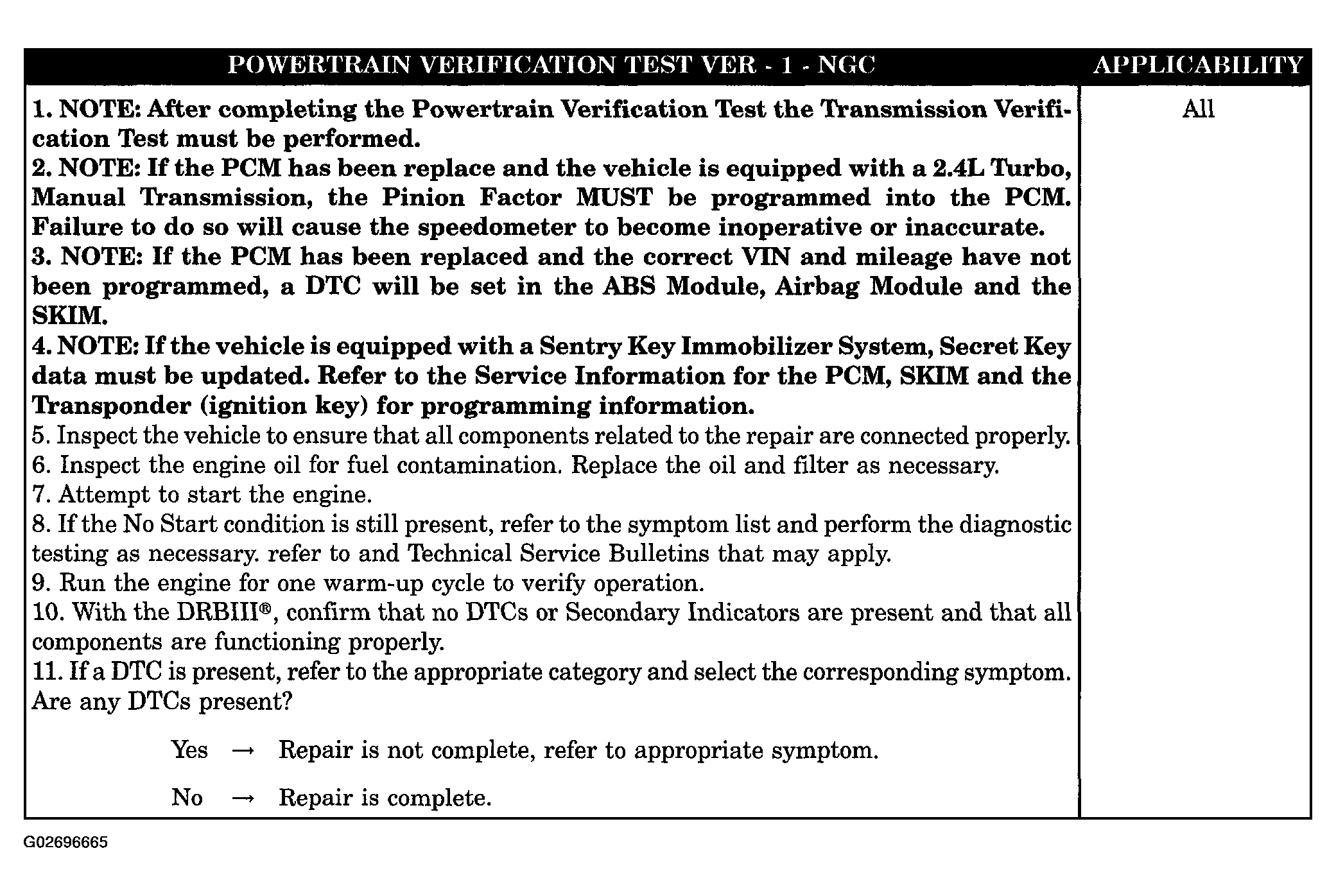

Fig 6: Powertrain Verification Test Ver 1- NGC
G02696665Courtesy of DAIMLERCHRYSLER CORP.

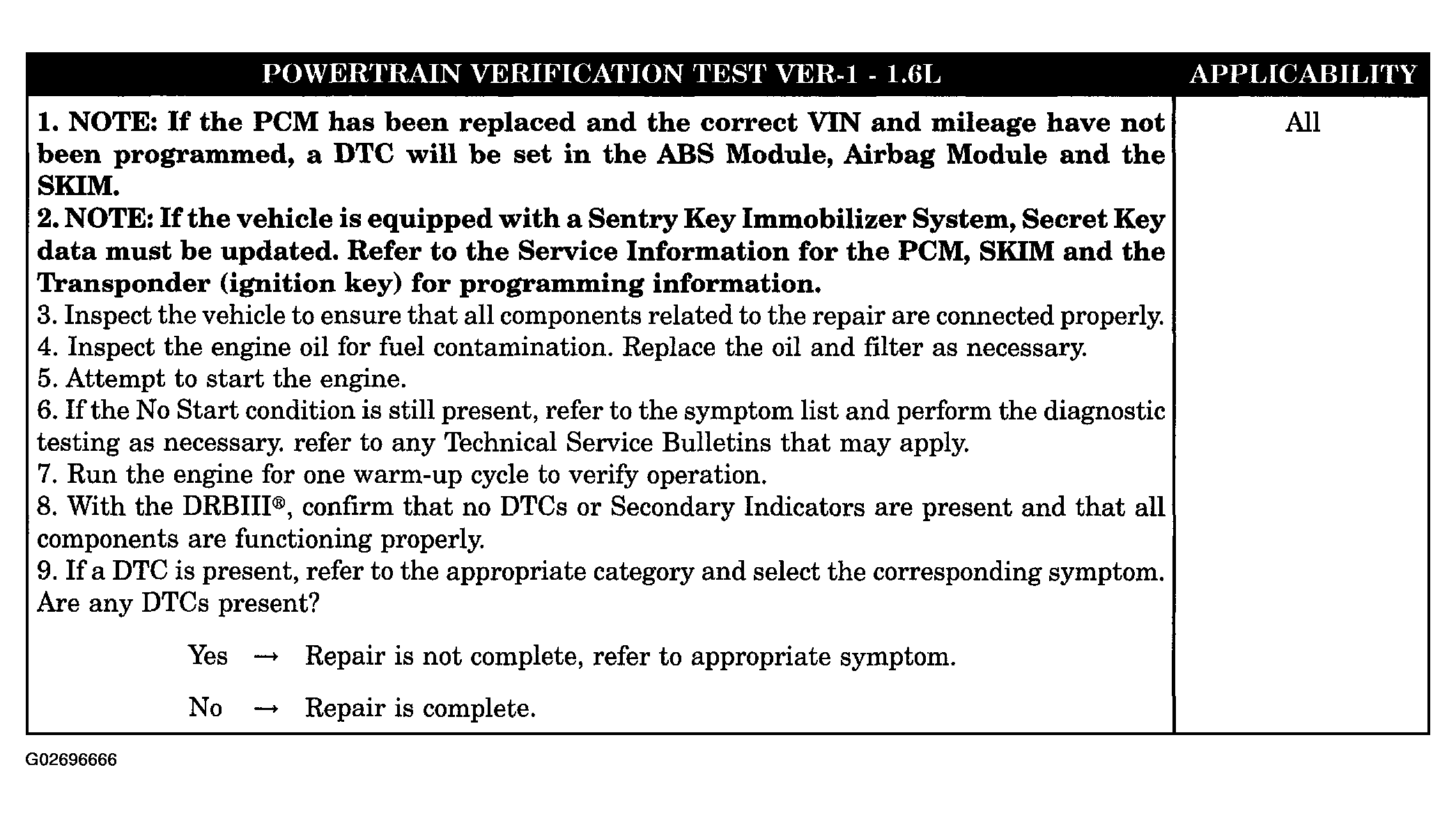

Fig 7: Powertrain Verification Test Ver 1 1.6L
G02696666Courtesy of DAIMLERCHRYSLER CORP.

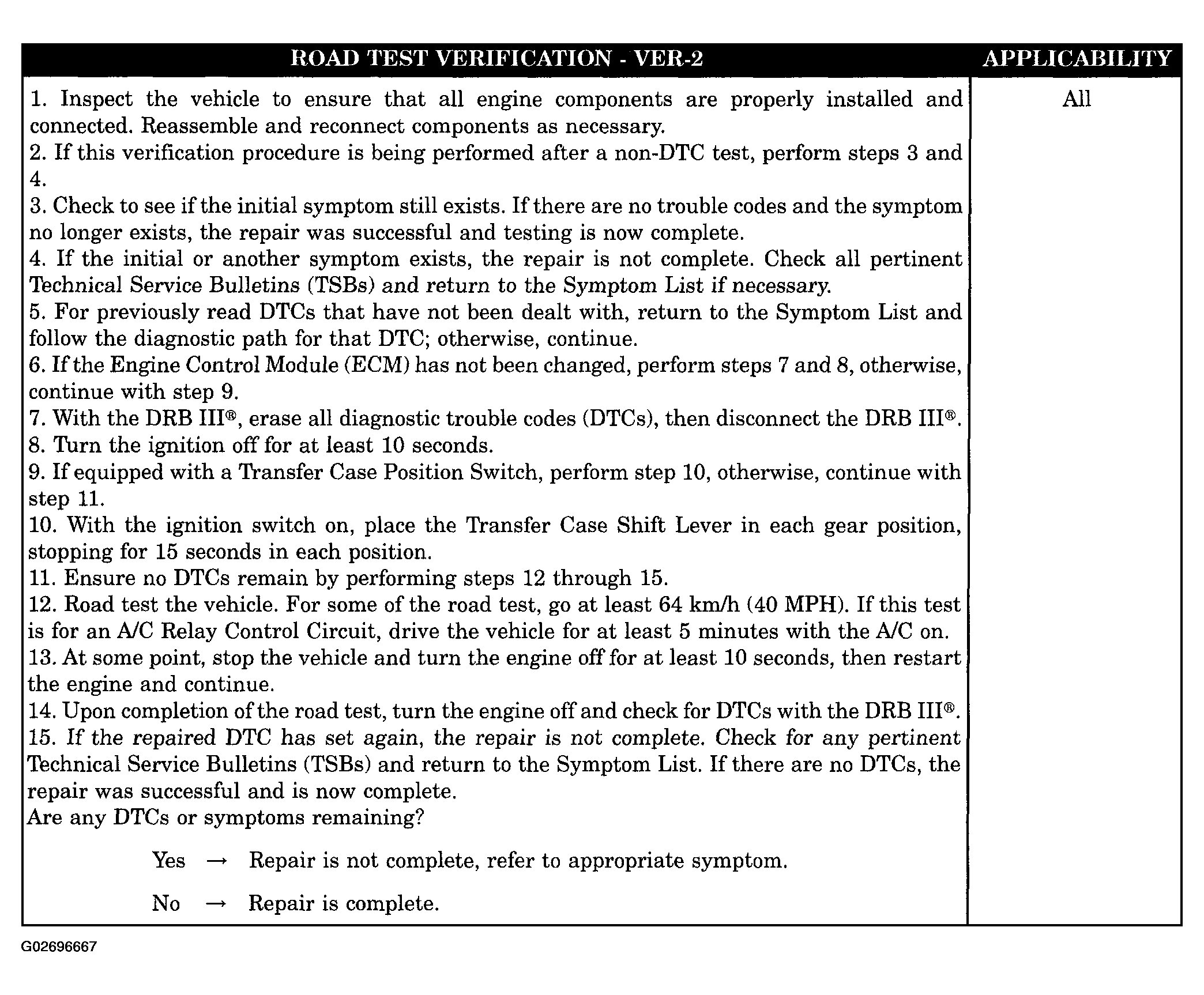

Fig 8: Road Test Verification Ver 2
G02696667Courtesy of DAIMLERCHRYSLER CORP.

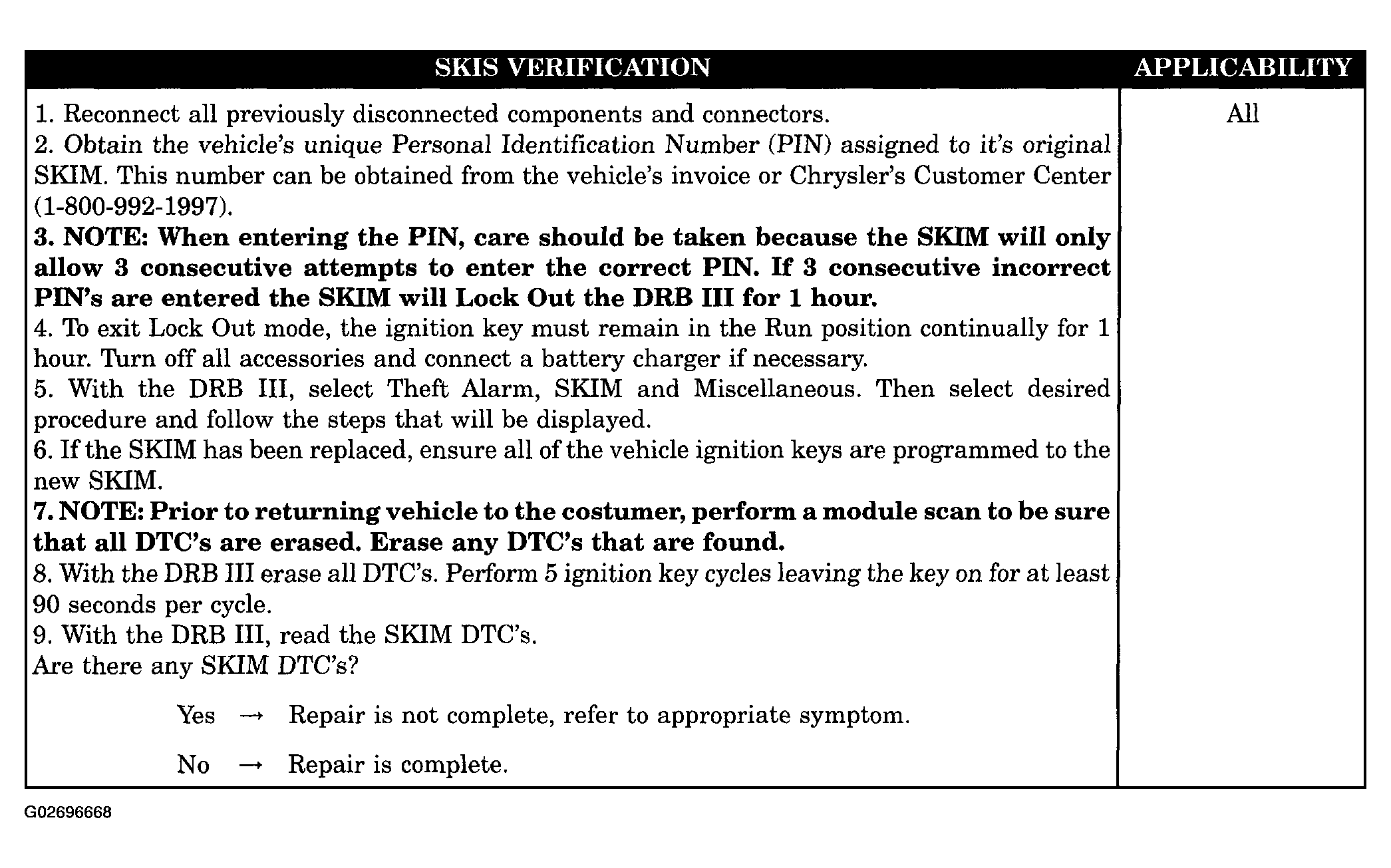

Fig 9: Skis Verification Test
G02696668Courtesy of DAIMLERCHRYSLER CORP.

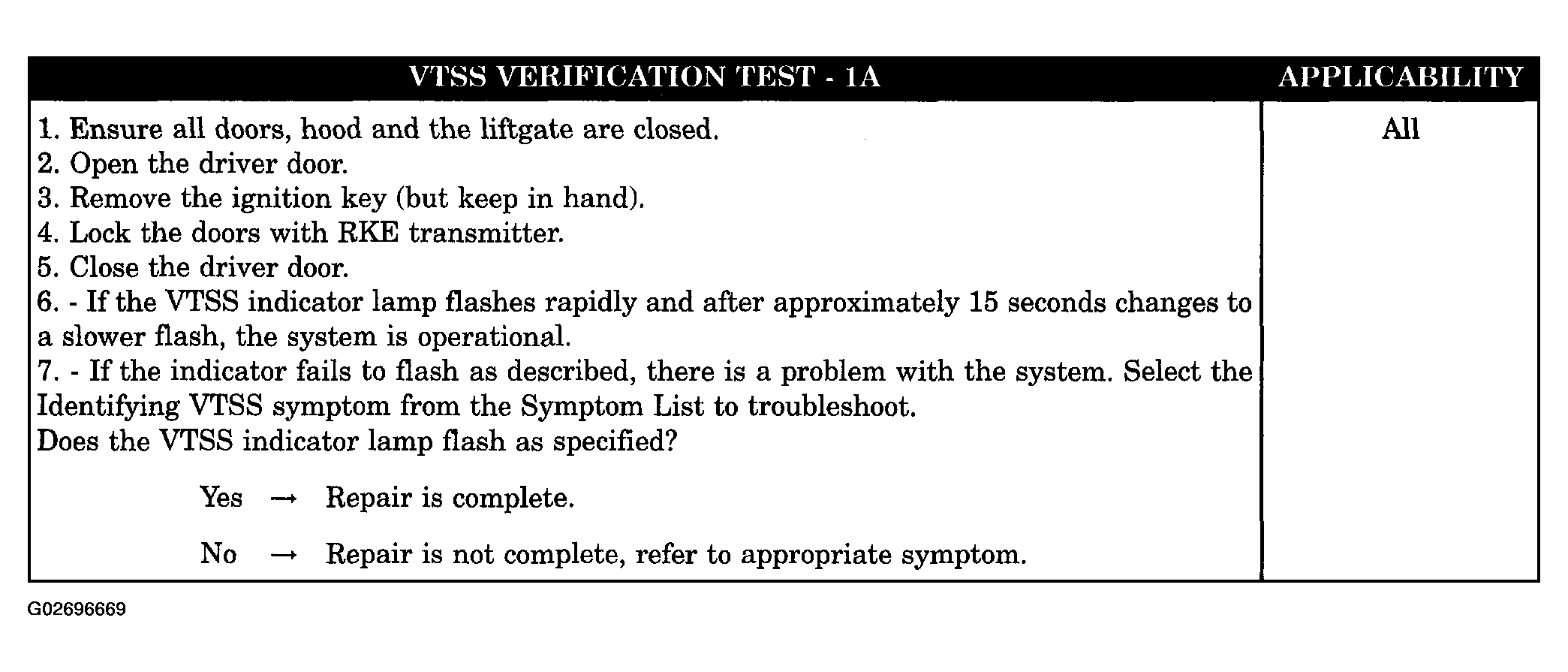

Fig 10: VTSS Verification Test 1A
G02696669Courtesy of DAIMLERCHRYSLER CORP.
