Symptom: *PARK LAMPS FAIL TO FLASH DURING ALARM: Testing

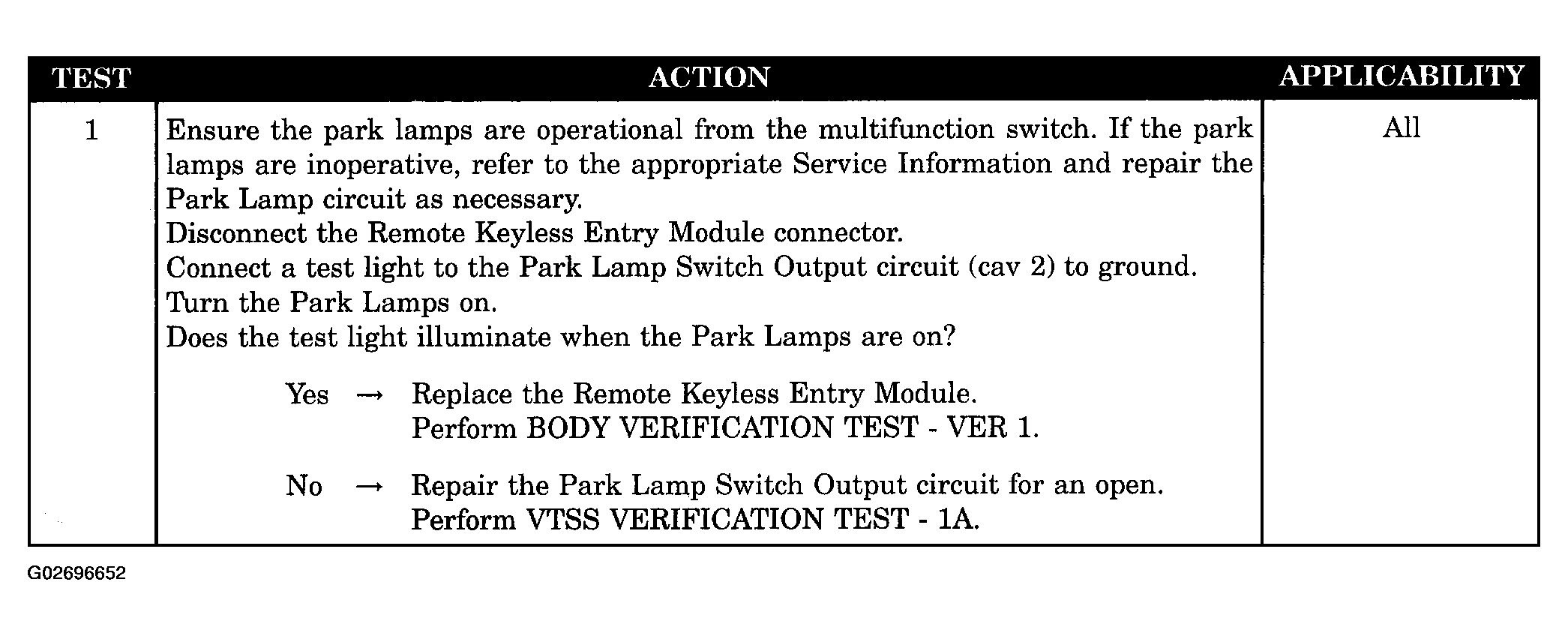

Fig 1: Testing Park Lamps Fail To Flash During Alarm

G02696652

Courtesy of DAIMLERCHRYSLER CORP.
