Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Vehicle Theft/Security >> Symptom: *OPEN LIFTGATE FAILS TO TRIP ALARM >> Testing

Symptom: *OPEN LIFTGATE FAILS TO TRIP ALARM: Testing

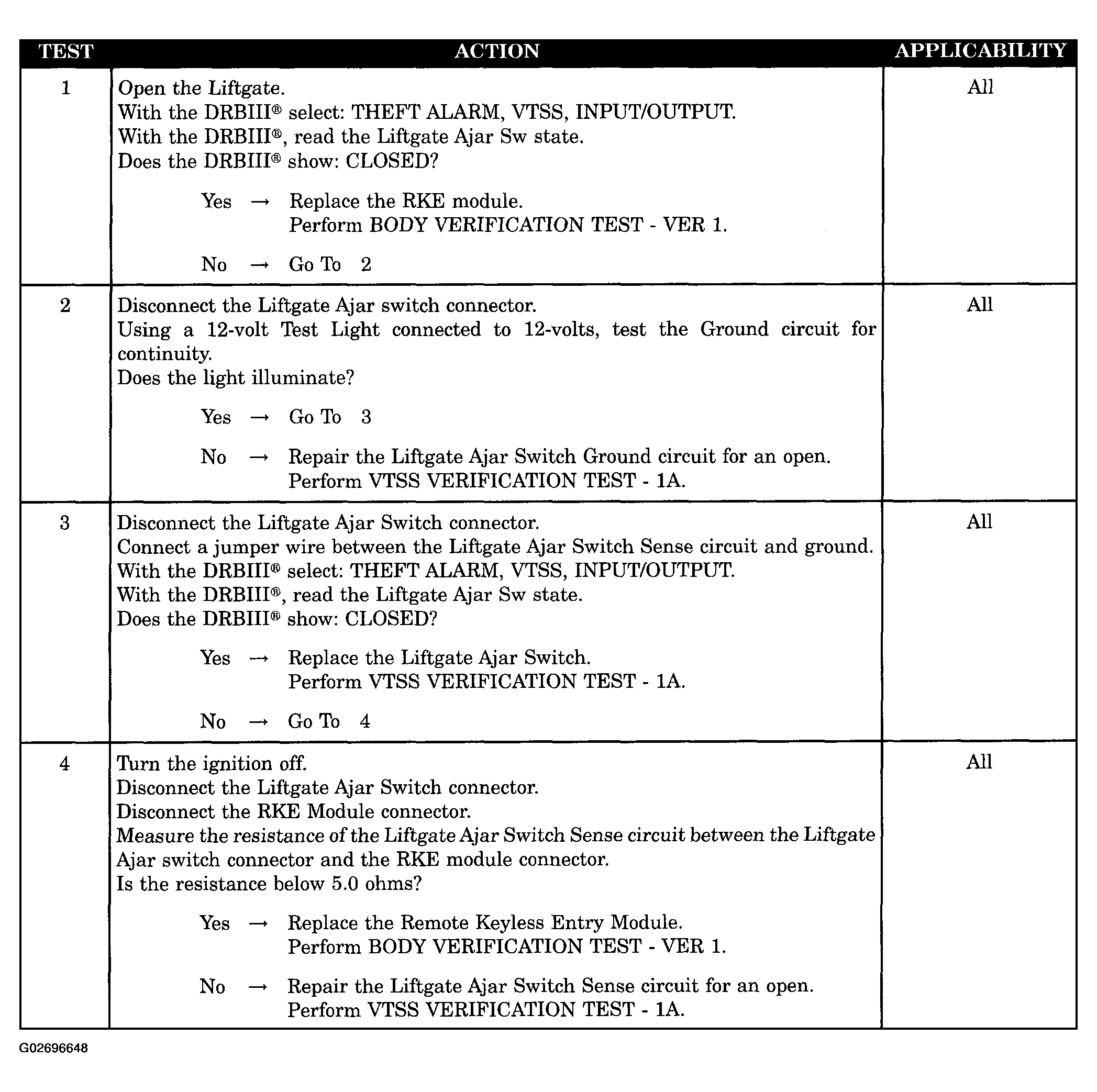

Fig 1: Testing Open Liftgate Fails To Trip Alarm

G02696648

Courtesy of DAIMLERCHRYSLER CORP.
