Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Overhead Console >> Symptom: *COMPASS/TEMP MODULE VF SEGMENT INOPERATIVE >> Testing

Symptom: *COMPASS/TEMP MODULE VF SEGMENT INOPERATIVE: Testing

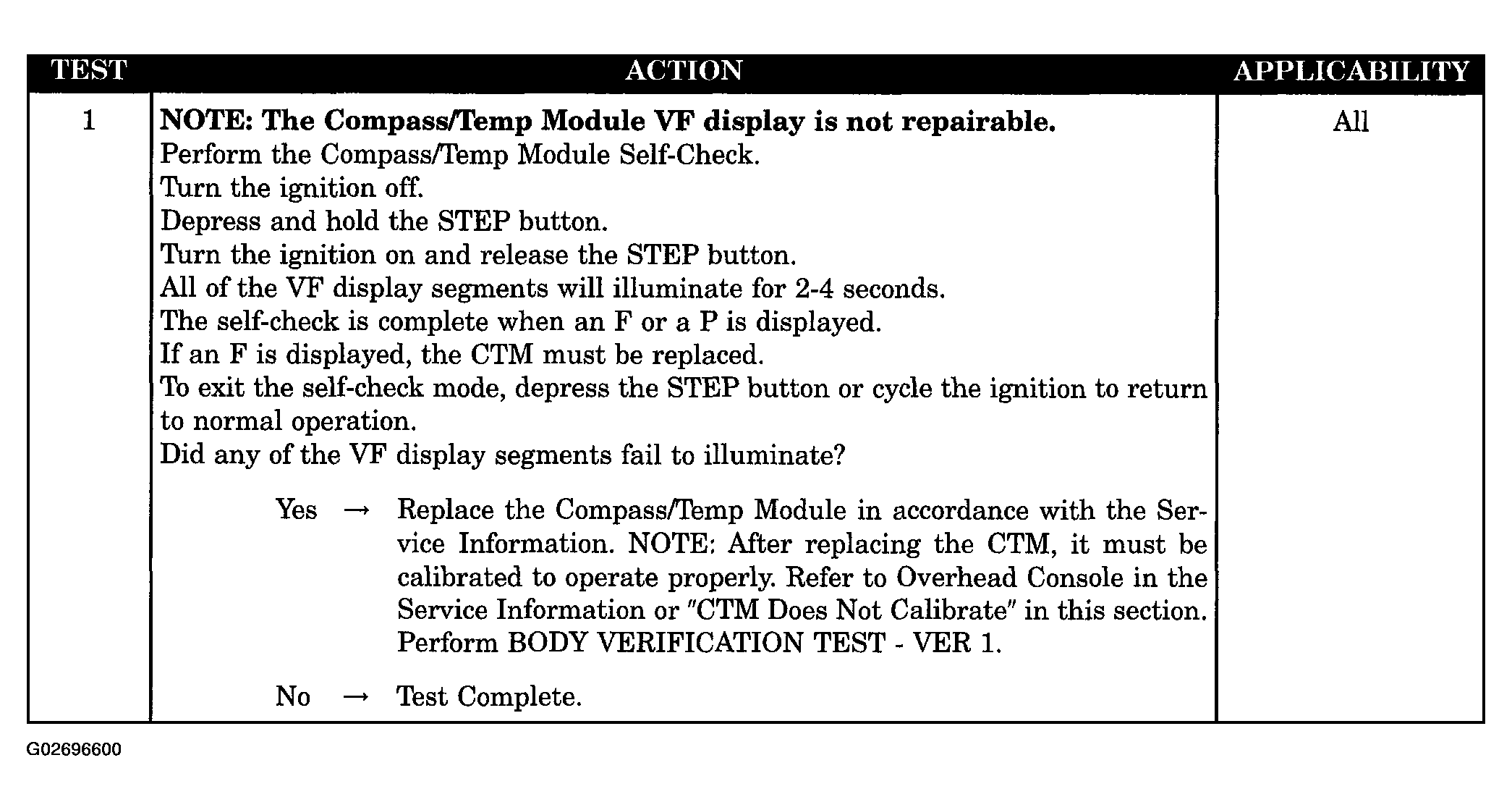

Fig 1: Testing Compass/Temp Module VF Segment Inoperative

G02696600

Courtesy of DAIMLERCHRYSLER CORP.
