Symptom: *COURTESY LAMPS ON AT ALL TIMES: Testing

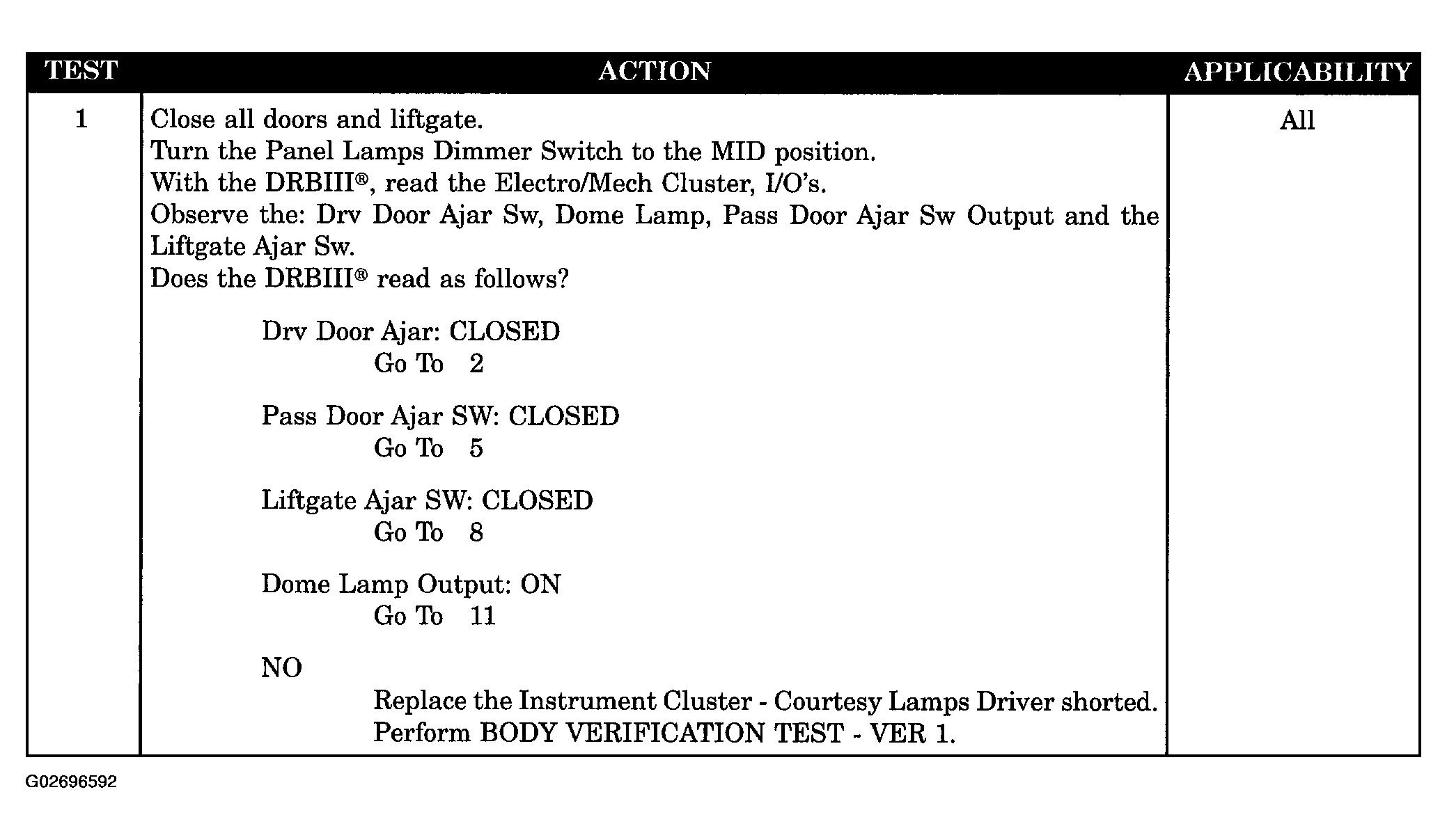

Fig 1: Testing Courtesy Lamps On At All Times (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

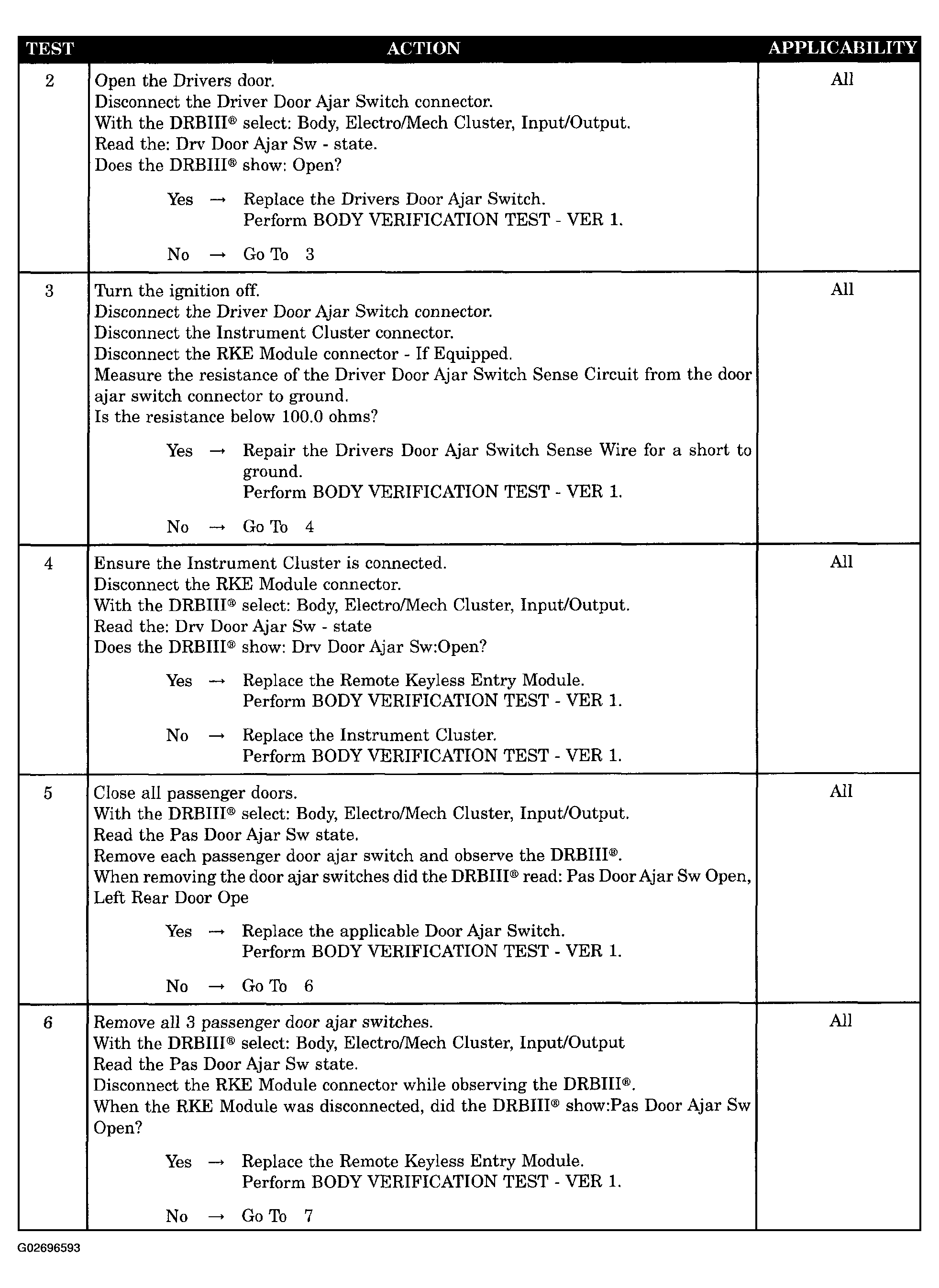

Fig 2: Testing Courtesy Lamps On At All Times (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

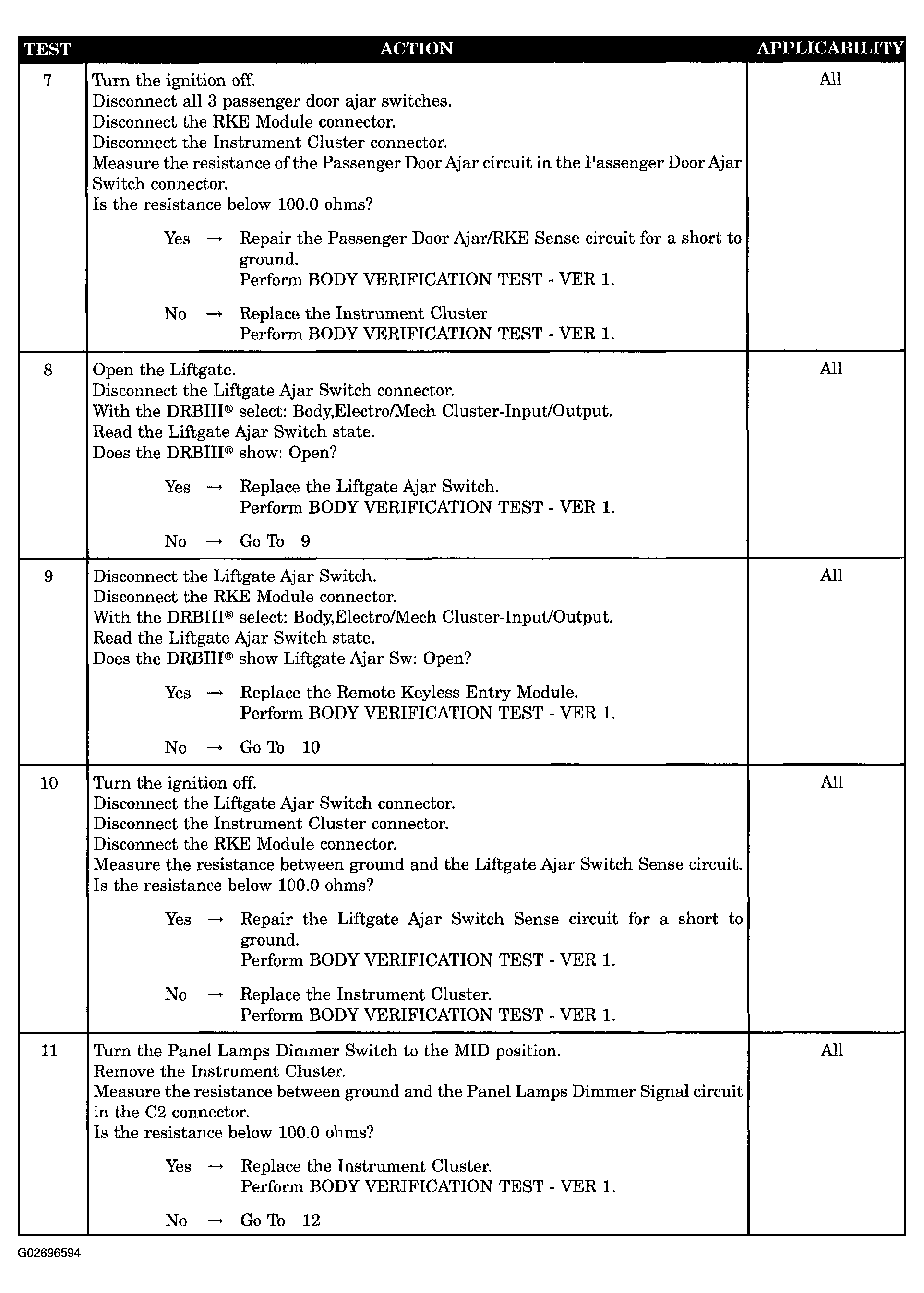

Fig 3: Testing Courtesy Lamps On At All Times (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.

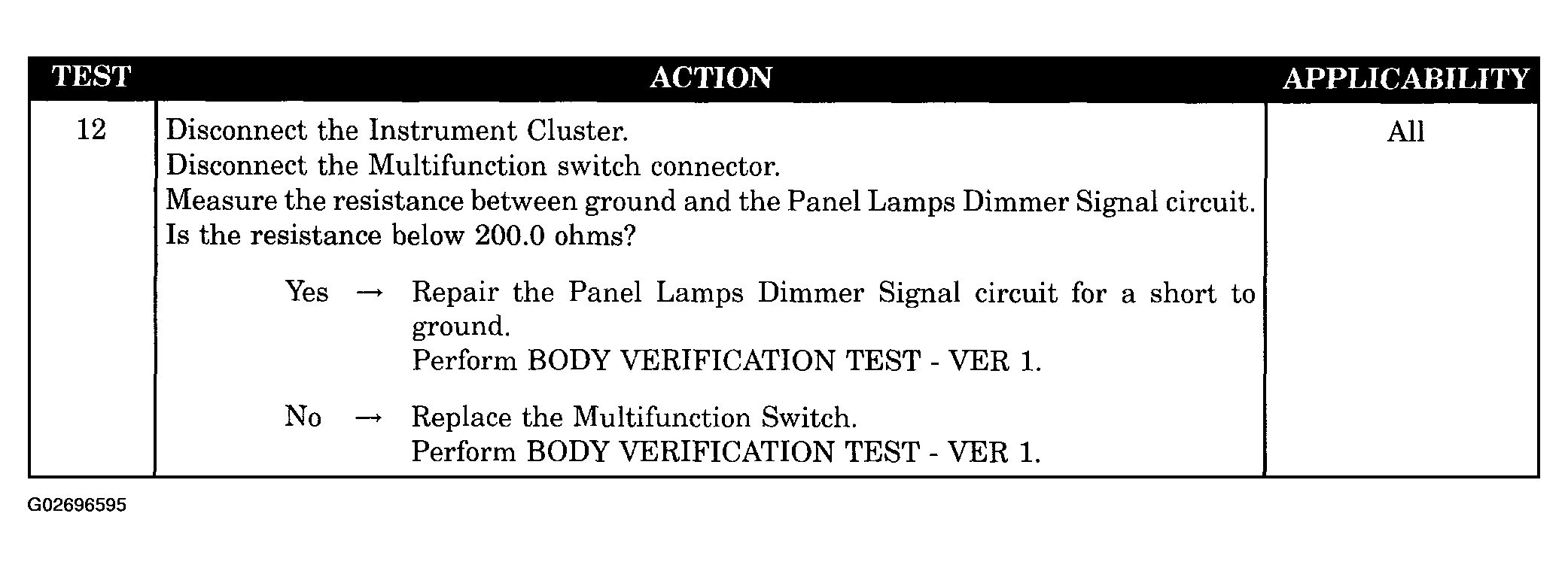

Fig 4: Testing Courtesy Lamps On At All Times (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORP.
