Symptom: *COURTESY LAMPS INOPERATIVE - ALL LAMPS: Testing

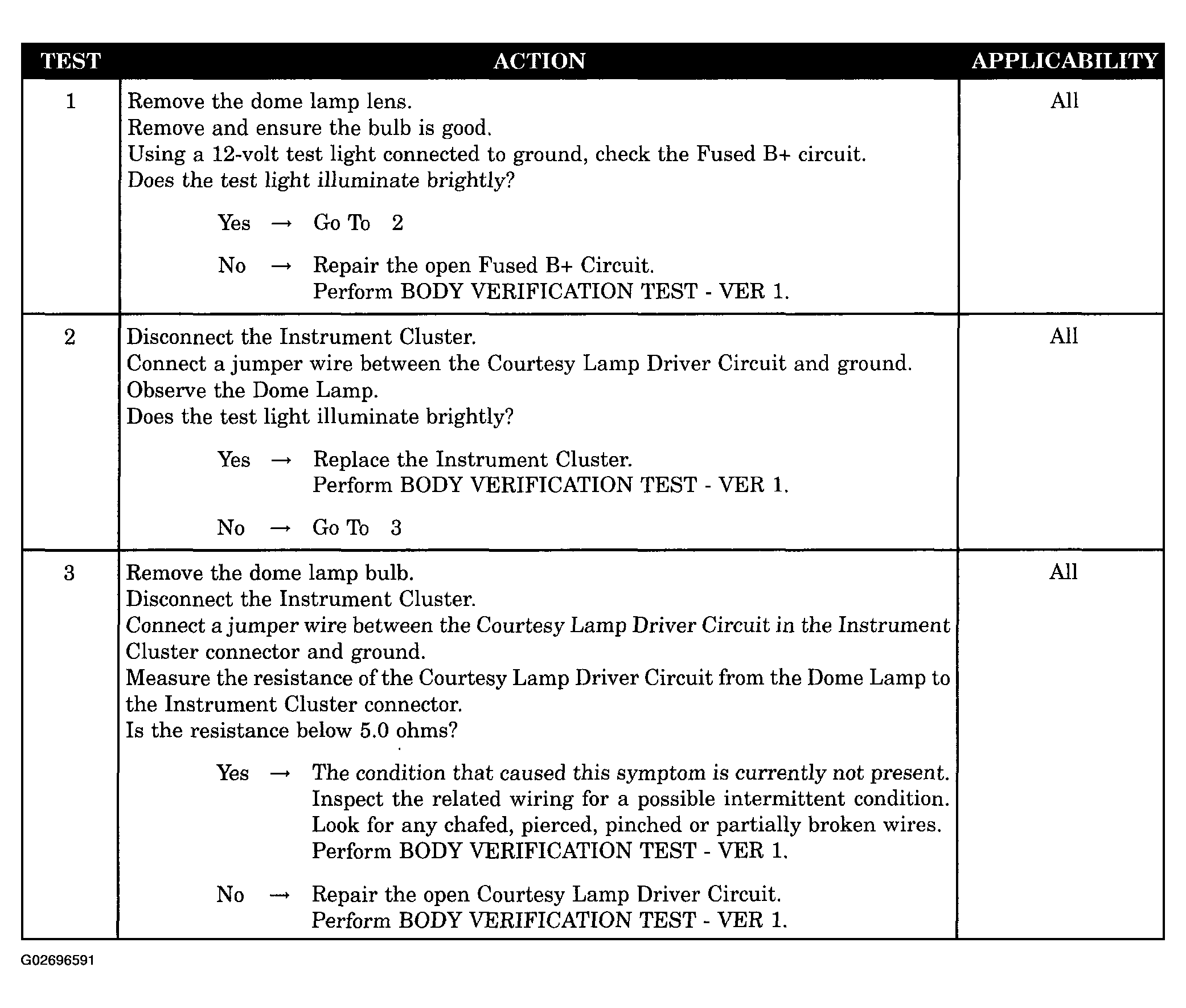

Fig 1: Testing Courtesy Lamps Inoperative - All Lamps

G02696591

Courtesy of DAIMLERCHRYSLER CORP.
