Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Instrument Cluster >> Symptom: *LOW OIL PRESSURE INDICATOR INOPERATIVE >> Testing

Symptom: *LOW OIL PRESSURE INDICATOR INOPERATIVE: Testing

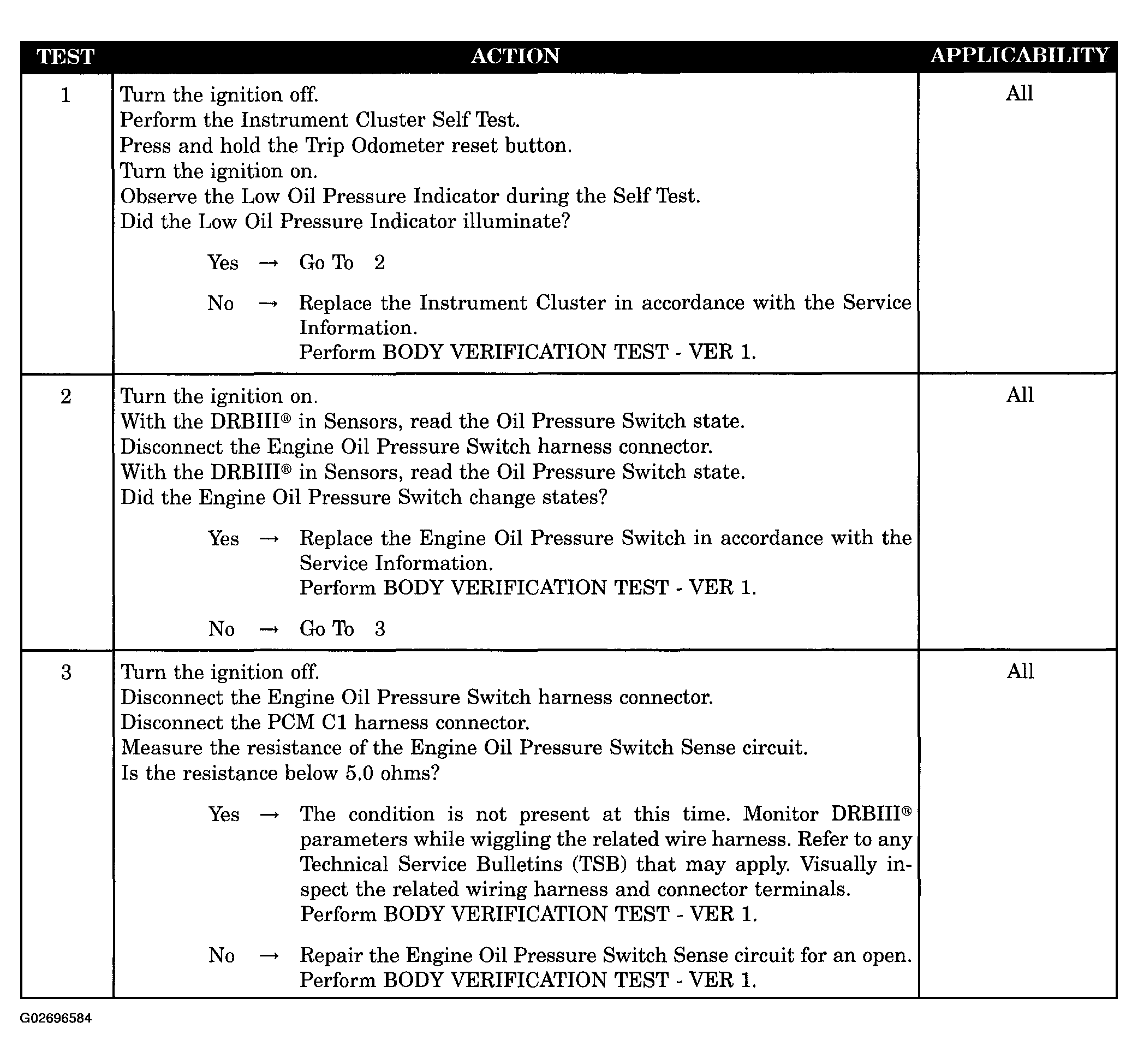

Fig 1: Testing Low Oil Pressure Indicator Inoperative

G02696584

Courtesy of DAIMLERCHRYSLER CORP.
