Symptom: *HIGH BEAM INDICATOR INOPERATIVE: Testing

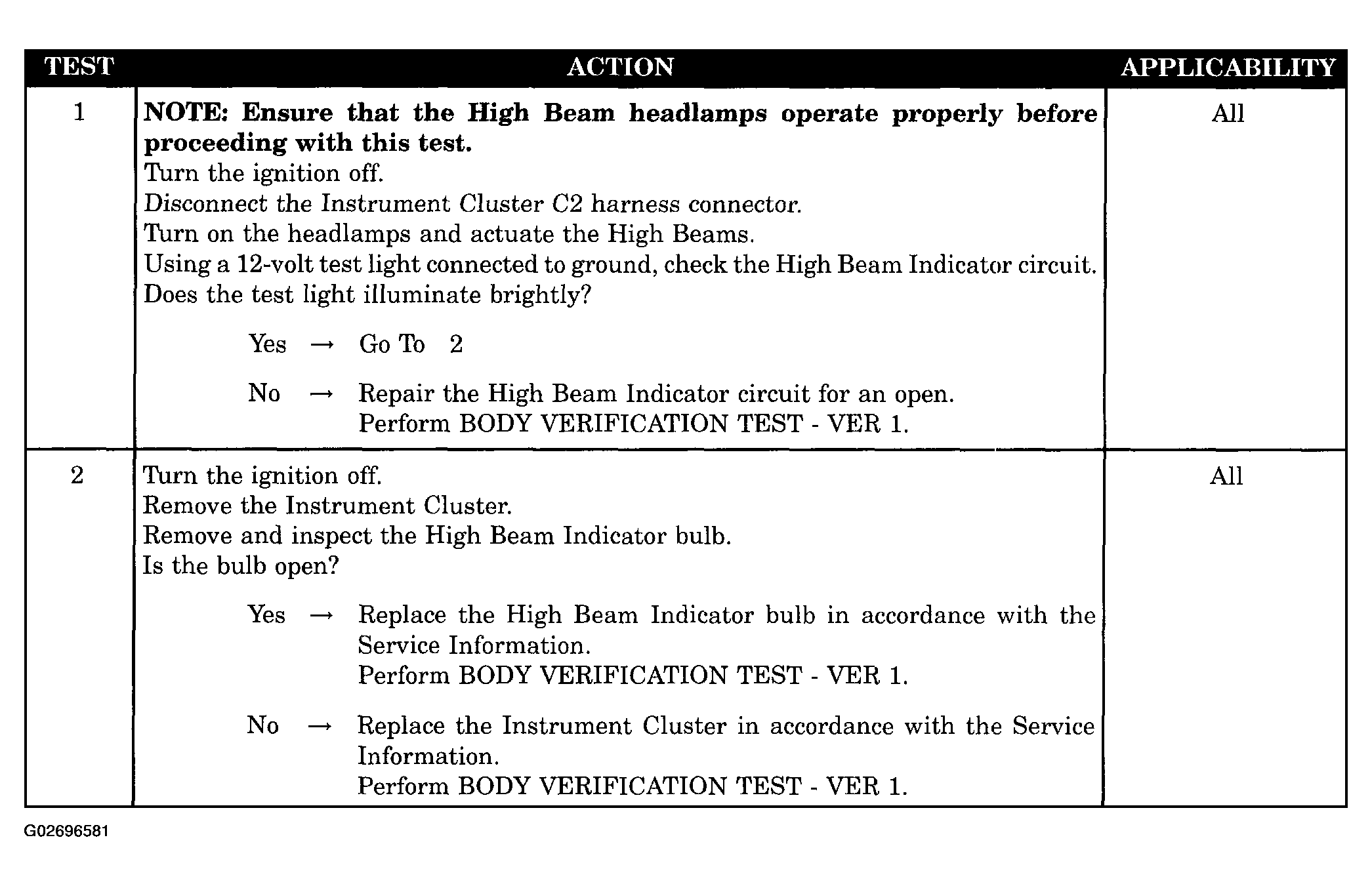

Fig 1: Testing: High Beam Indicator Inoperative

G02696581

Courtesy of DAIMLERCHRYSLER CORP.
