Symptom: *BRAKE WARNING INDICATOR INOPERATIVE: Testing

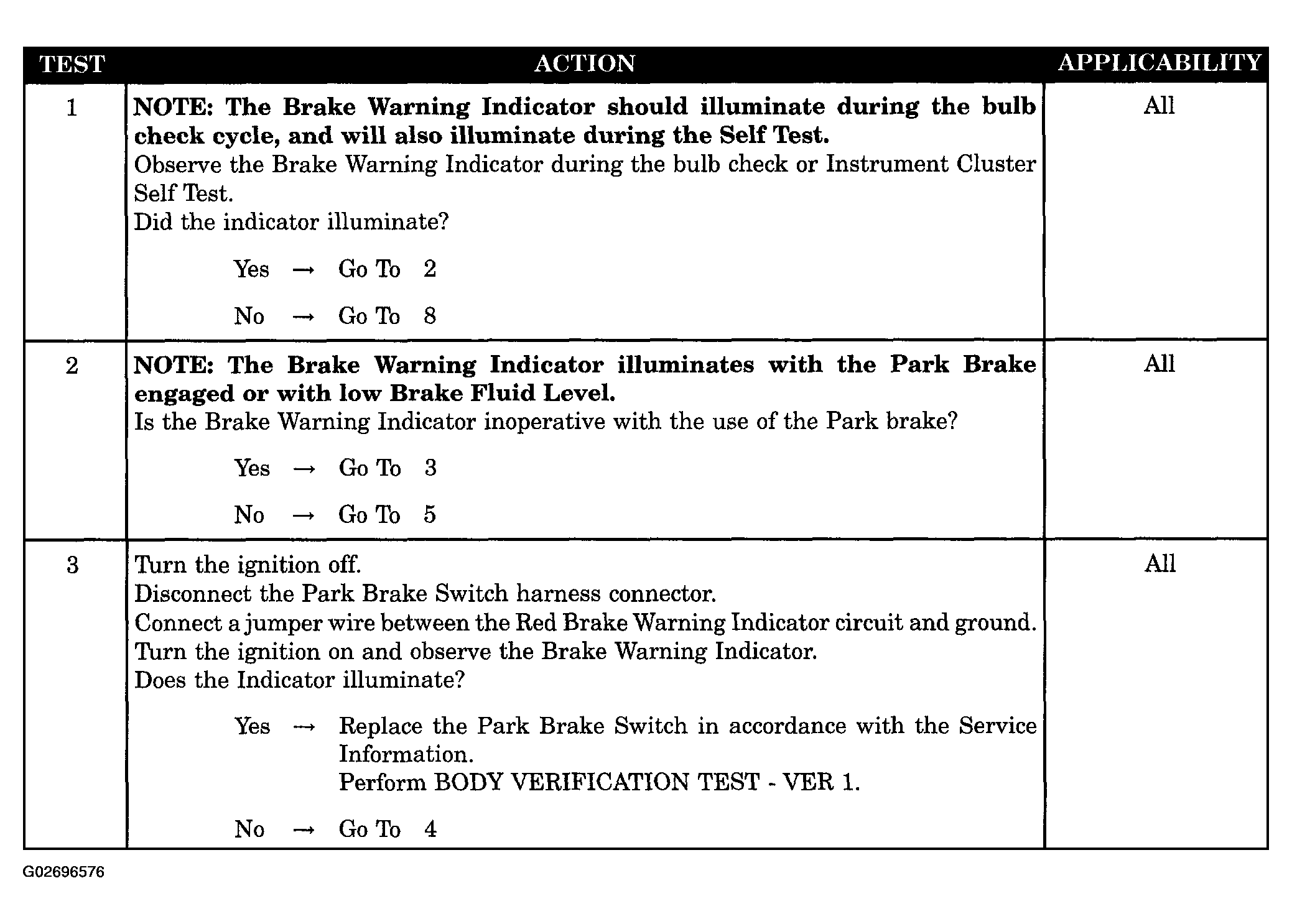

Fig 1: Testing: Brake Warning Indicator Inoperative (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

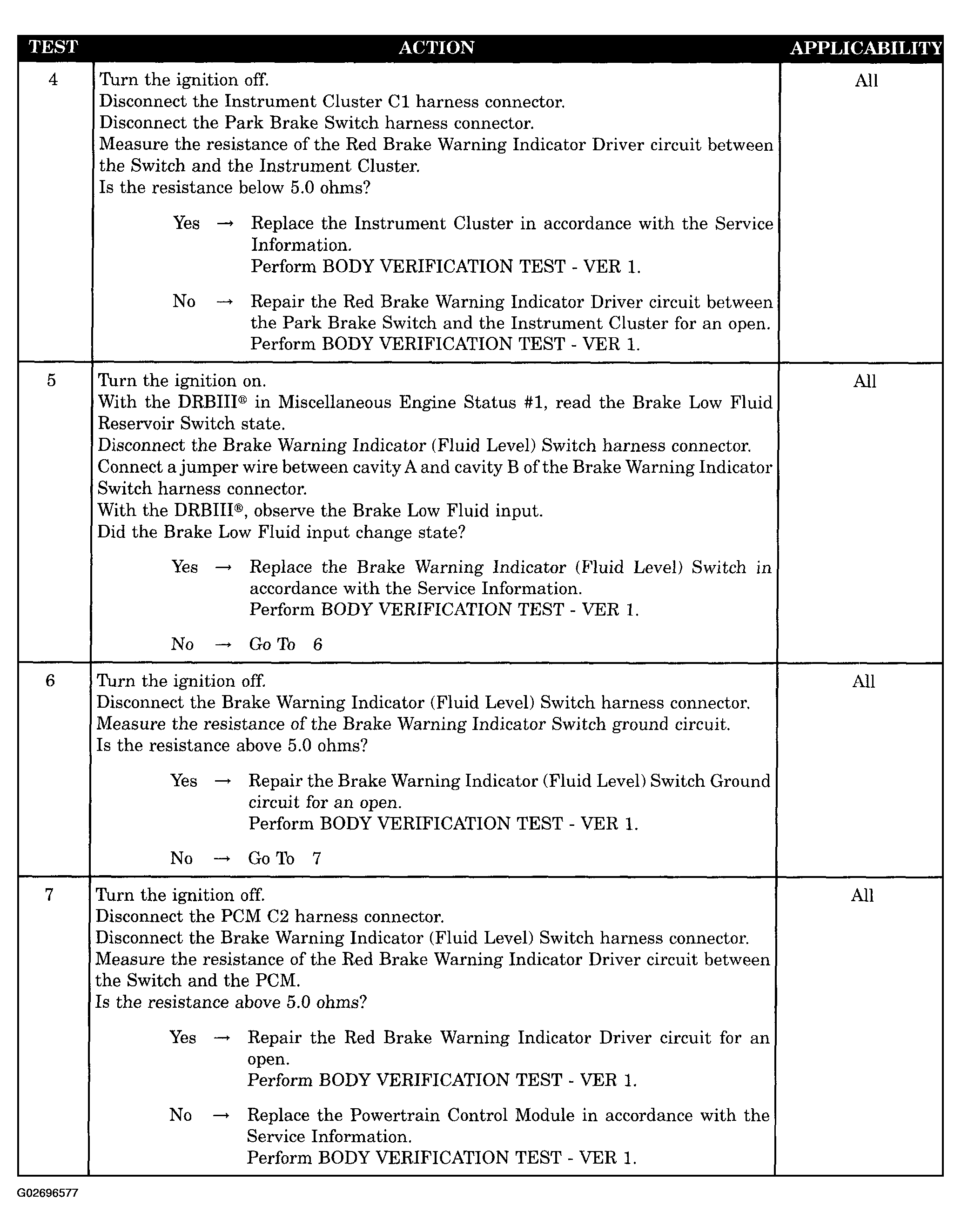

Fig 2: Testing Brake Warning Indicator Inoperative (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

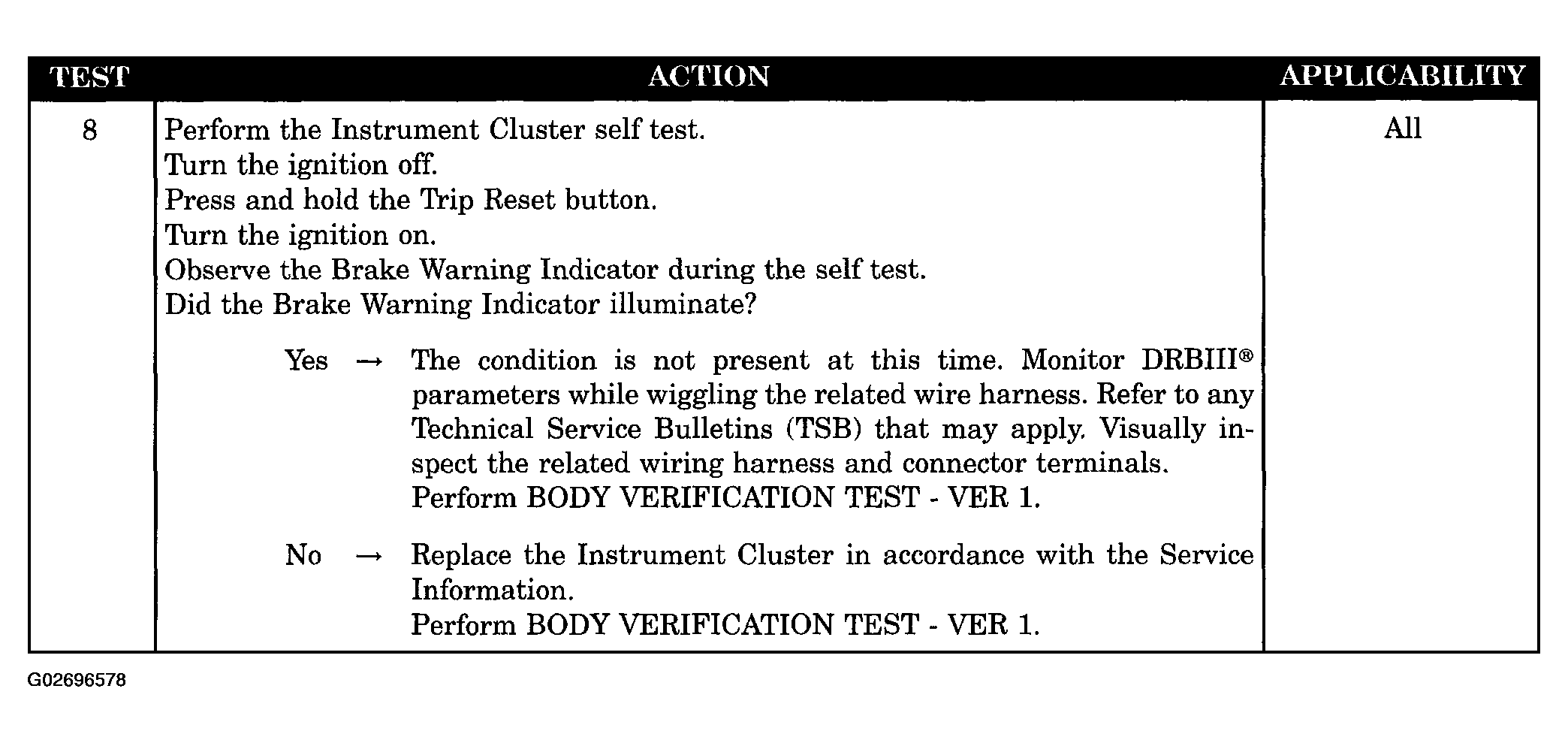

Fig 3: Testing Brake Warning Indicator Inoperative (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
