Home >> Chrysler >> 2003 >> PT Cruiser Limited, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Instrument Cluster >> Symptom: *ANY PCI BUS INDICATOR INOPERATIVE >> Testing

Symptom: *ANY PCI BUS INDICATOR INOPERATIVE: Testing

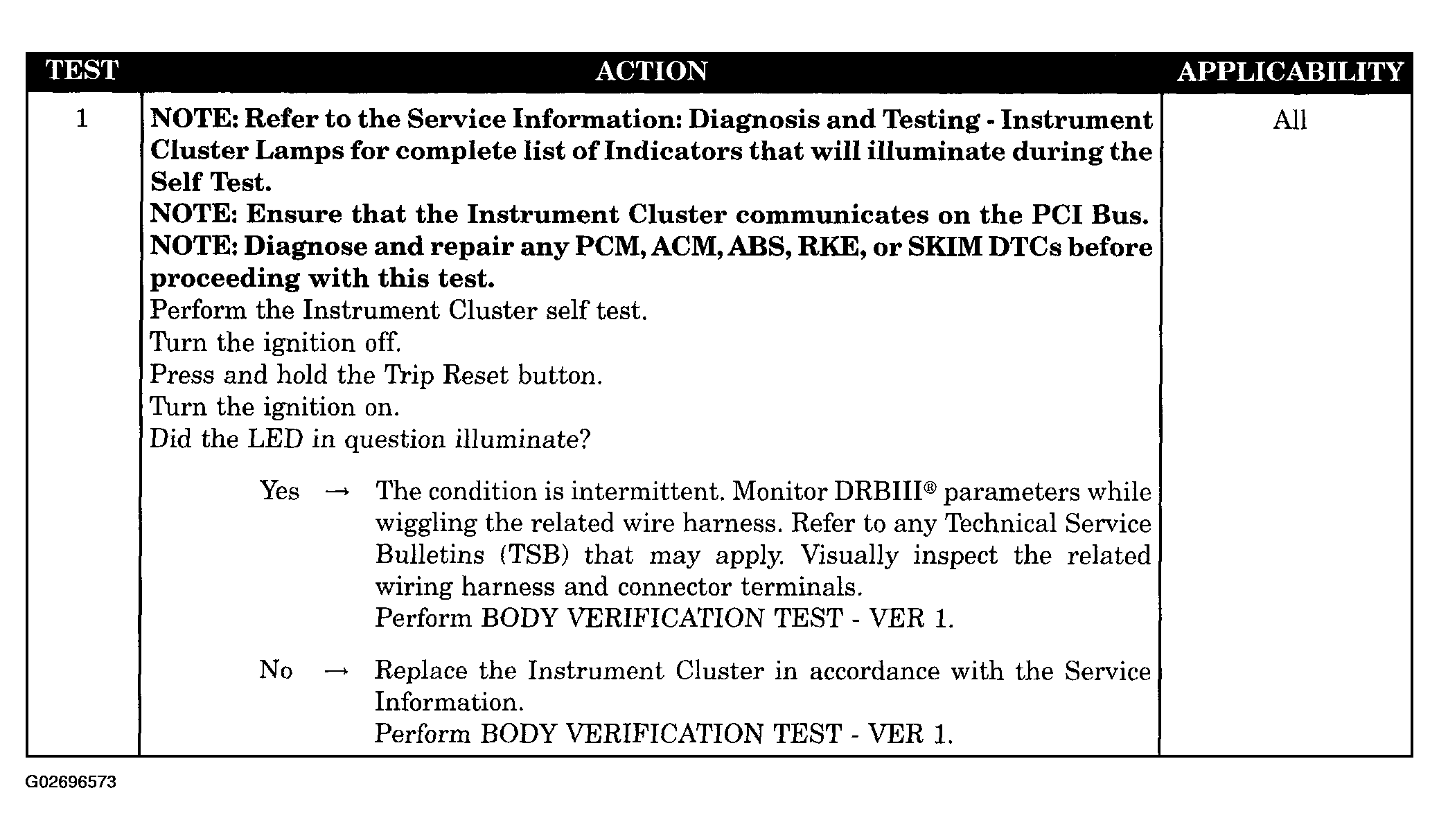

Fig 1: Testing Any PCI Bus Indicator Inoperative

G02696573

Courtesy of DAIMLERCHRYSLER CORP.
