Symptom: CALIBRATION MISMATCH: Testing

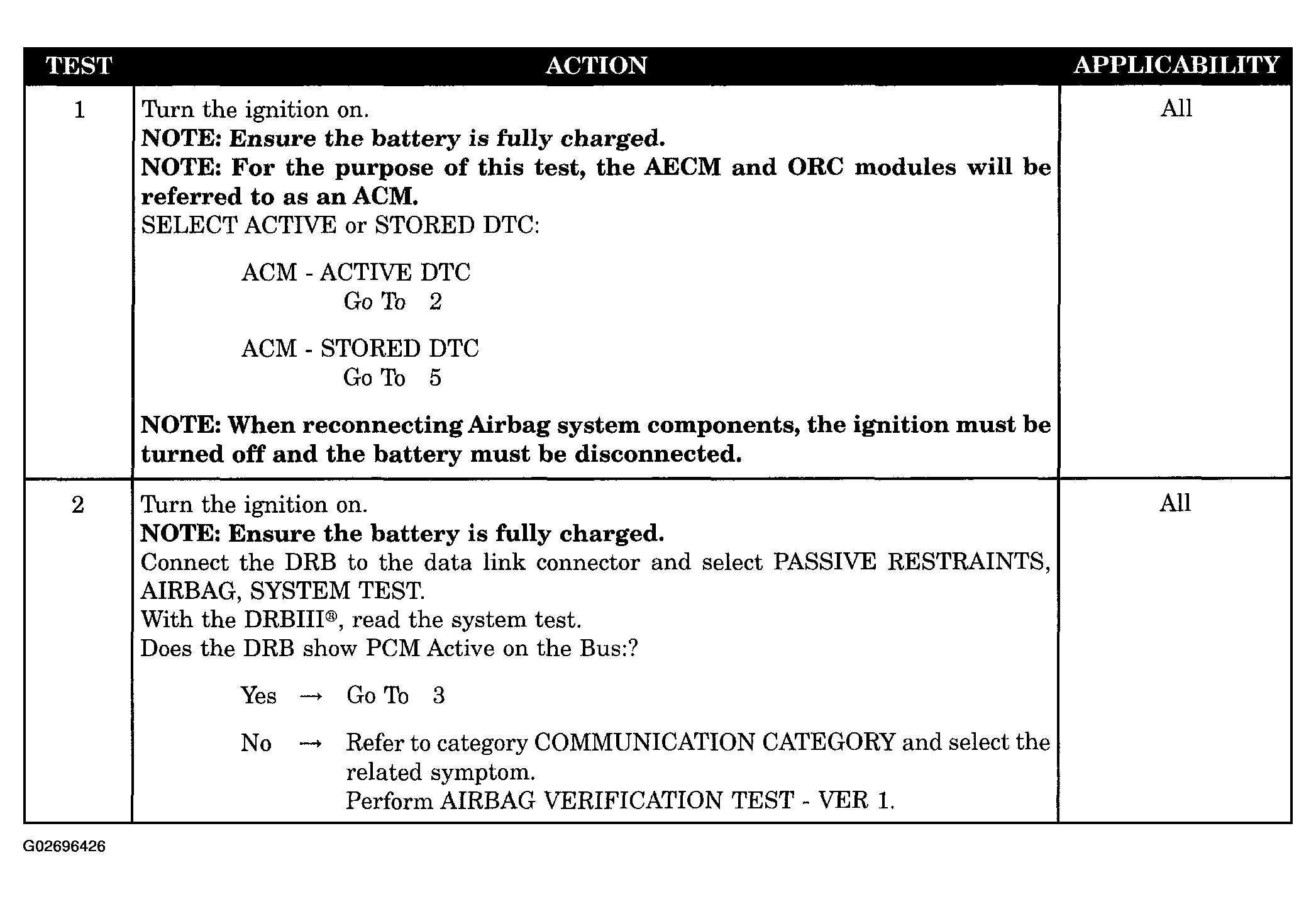

Fig 1: Testing Calibration Mismatch (1 Of 2)

G02696426

Courtesy of DAIMLERCHRYSLER CORP.

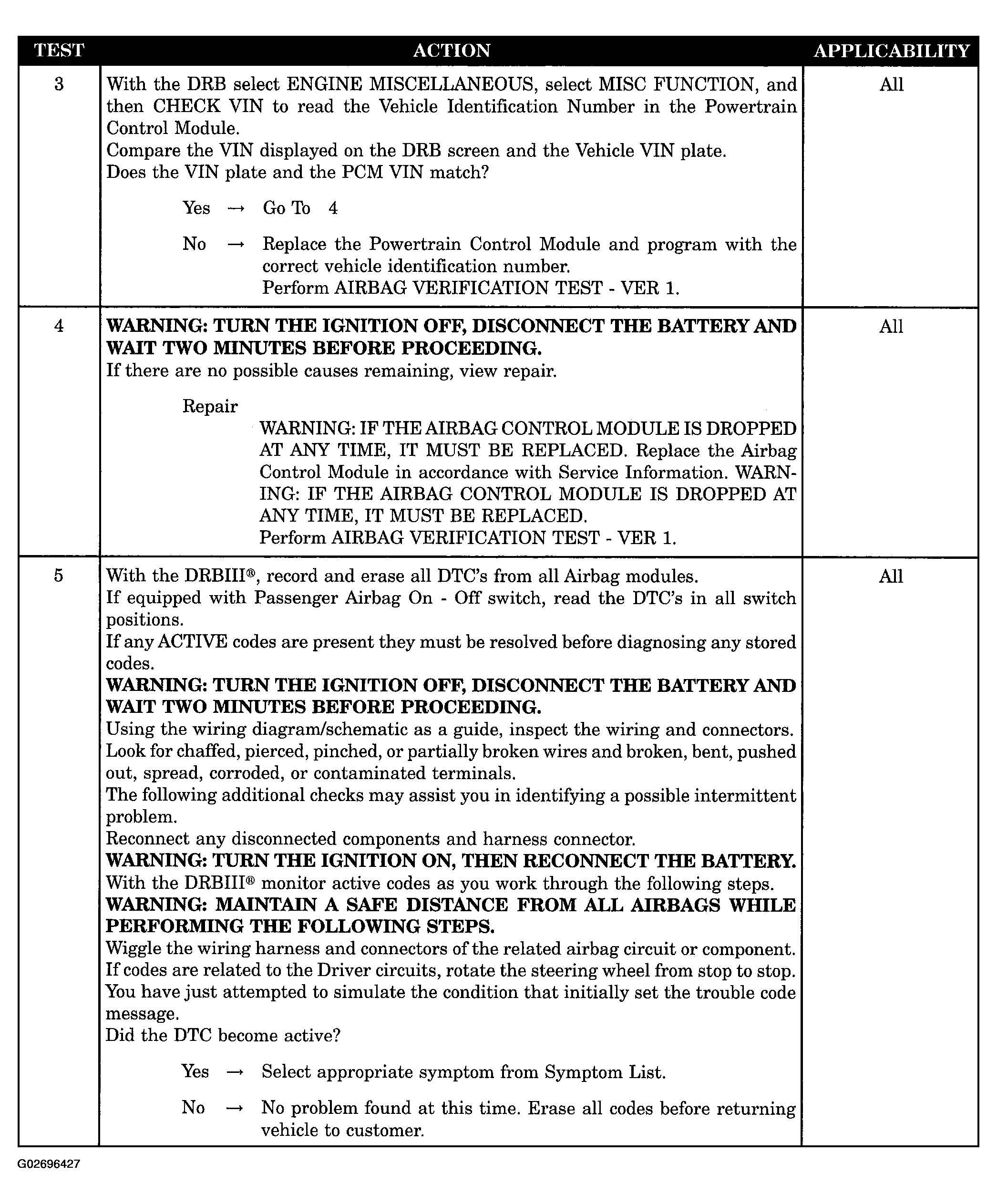

Fig 2: Testing Calibration Mismatch (2 Of 2)

G02696427

Courtesy of DAIMLERCHRYSLER CORP.
