TEVES MARK 20e CONTROLLER ANTILOCK BRAKE - ABS

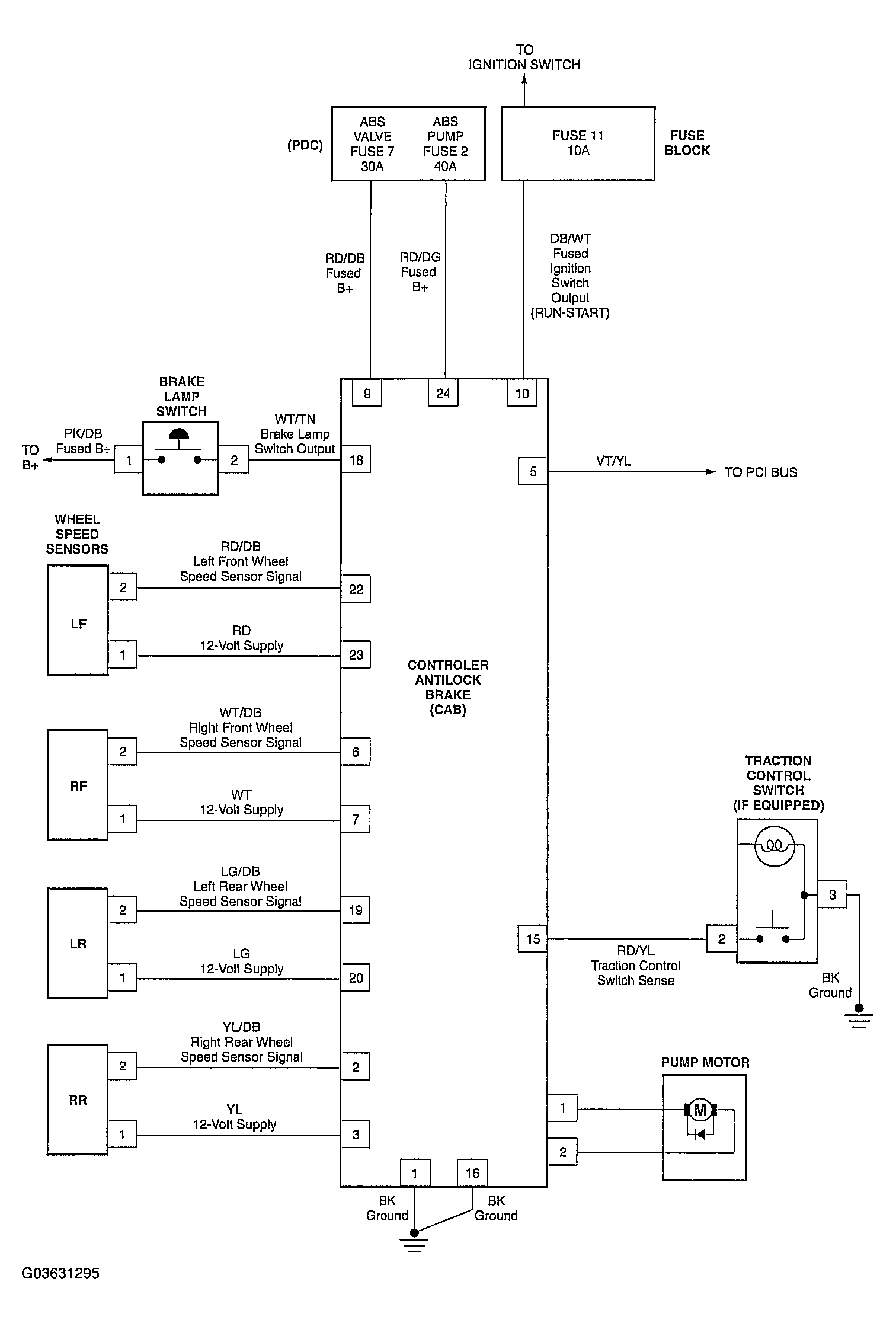

Fig 1: Controller Antilock Brake Schematic Diagram

G03631295

Courtesy of DAIMLERCHRYSLER CORP.
