Sunroof Sunshade: Removal
- Remove sunroof glass panel (Refer to GLASS PANEL ).

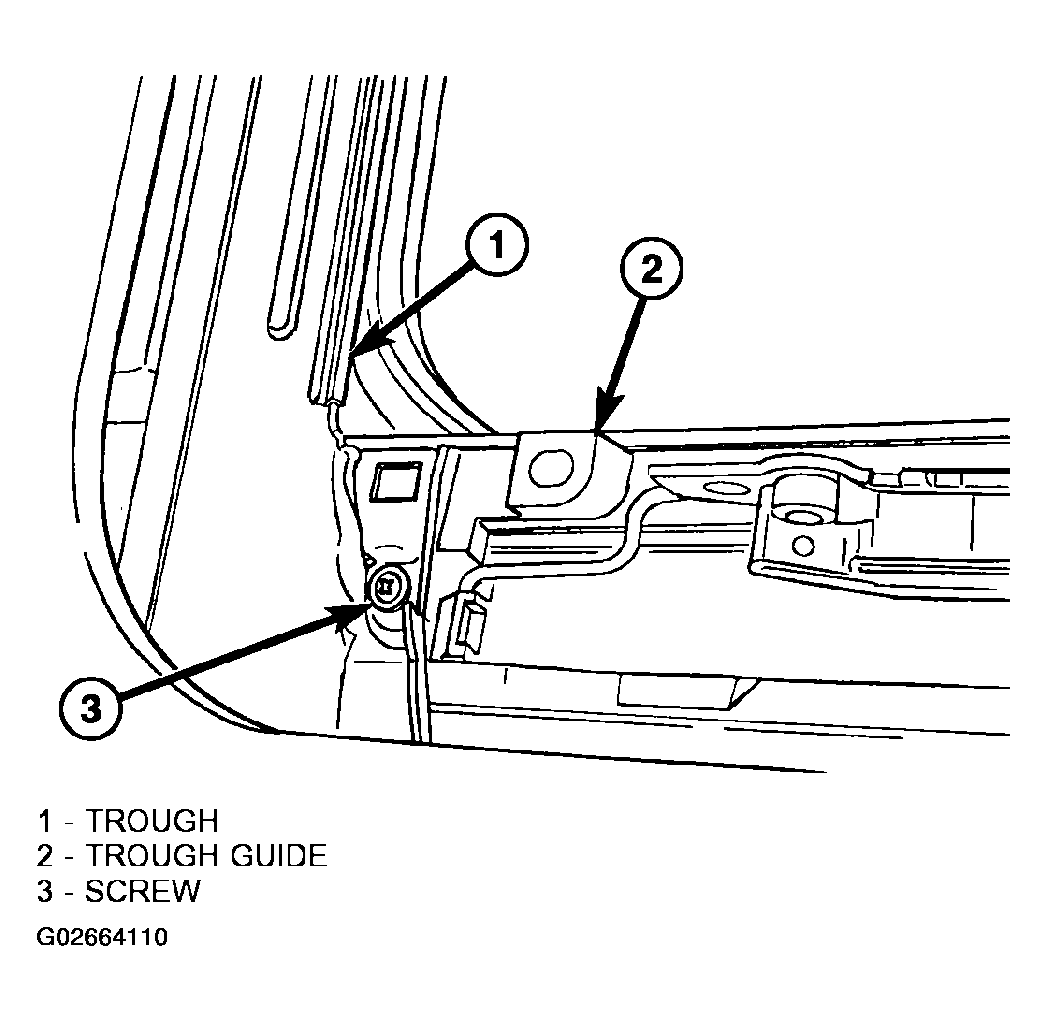

- From the top of the vehicle through the roof opening remove the two screws (one LH and one RH side) attaching trough assembly to trough guides (Fig 1 ).
- Remove trough assembly.
- From the top of the vehicle through roof opening slide the sunshade forward, disengaging sunshade front guide feet through front opening in tracks.
- Continue to pull the sunshade forward and rotate sunshade until rear guide feet are disengaged from tracks and sunshade is completely free from the sunroof assembly.
CAUTION:
Use care not to crease the sunshade when removing or installing.
