Rear Housing Hose

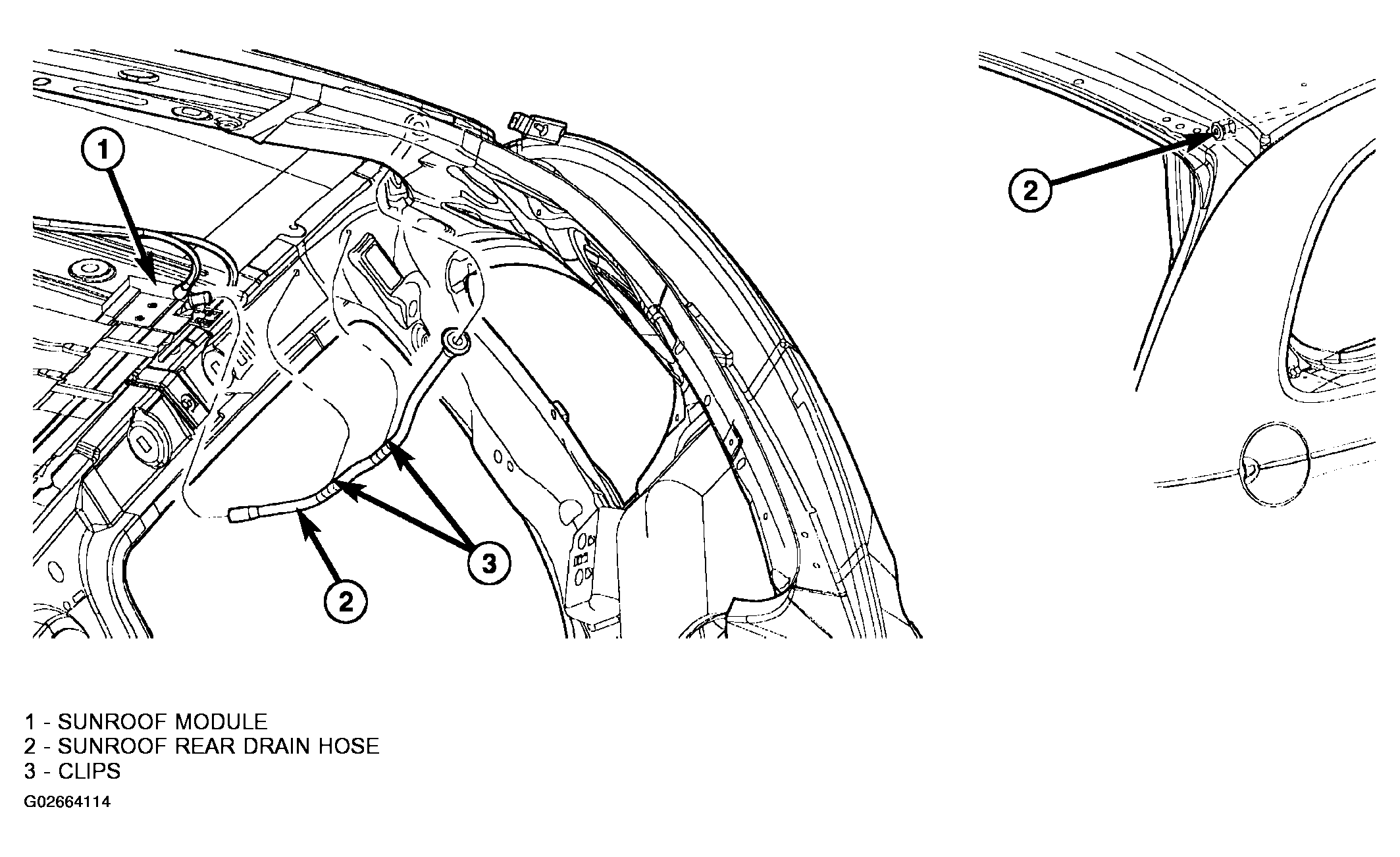

  1. Connect the new drain hose to the sunroof housing and test drainage (Figure ).
  2. Install headliner (Refer to BODY/INTERIOR/HEADLINER - INSTALLATION ).
  3. Install sunroof opening trim lace (Refer to OPENING TRIM LACE  ).
  4. Connect the control switch wire connector and install control switch.
  5. Verify sunroof operation and alignment (Refer to GLASS PANEL  ).
