Rear Door Water Dam: Removal

  1. Remove door trim panel.
  2. Remove door speaker, if equipped (Fig. Fig 1 ).

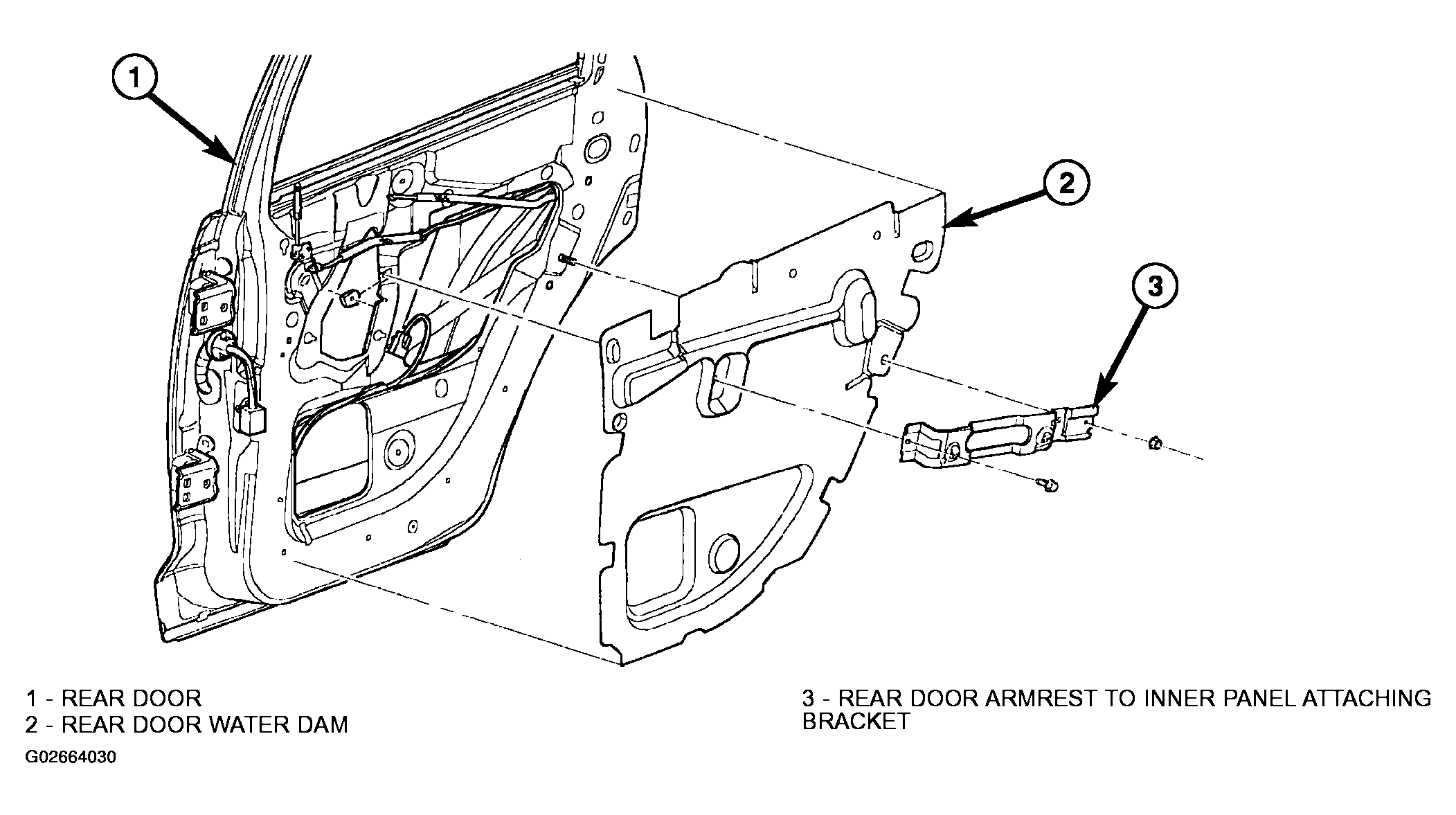

    Fig 1: Removing Water Dam
    G02664030Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove door trim pull cup mount bracket.
  4. Disconnect clip attaching lock linkage to lock button bell-crank.
  5. Peel water dam away from adhesive around perimeter of inner door panel.
