Hood Latch Striker: Installation

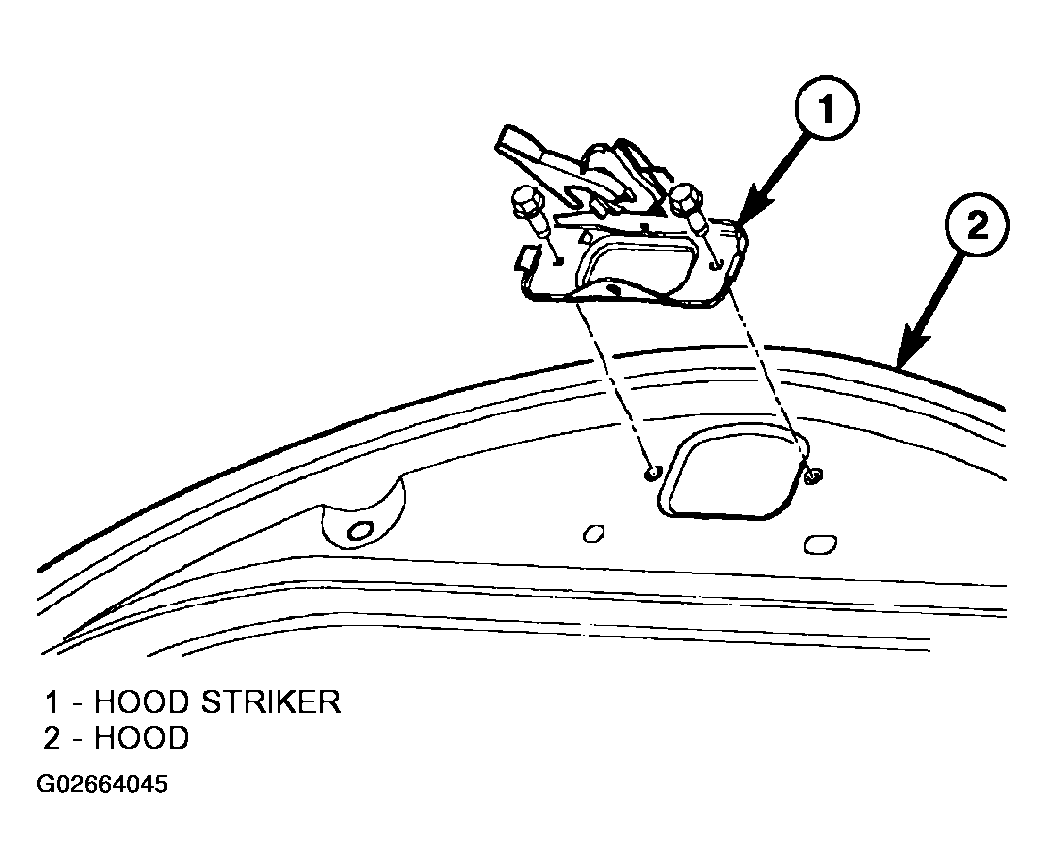

  1. Position hood latch striker on vehicle (Fig. Figure ).
  2. Install bolts attaching hood latch striker to hood.
  3. Align hood latch striker to engage smoothly into hood latch.
  4. Verify hood operation and alignment. Adjust as necessary.
  5. Tighten attaching bolts to 13.5 N.m (10 ft. lbs.) torque.
