Hood Hinge: Removal

  1. Support hood on the side that requires hinge replacement.
  2. Mark all bolt and hinge attachment locations with a grease pencil or other suitable device to provide reference marks for installation.
  3. Remove bolts holding hood to hinge (Fig. Fig 1 ).

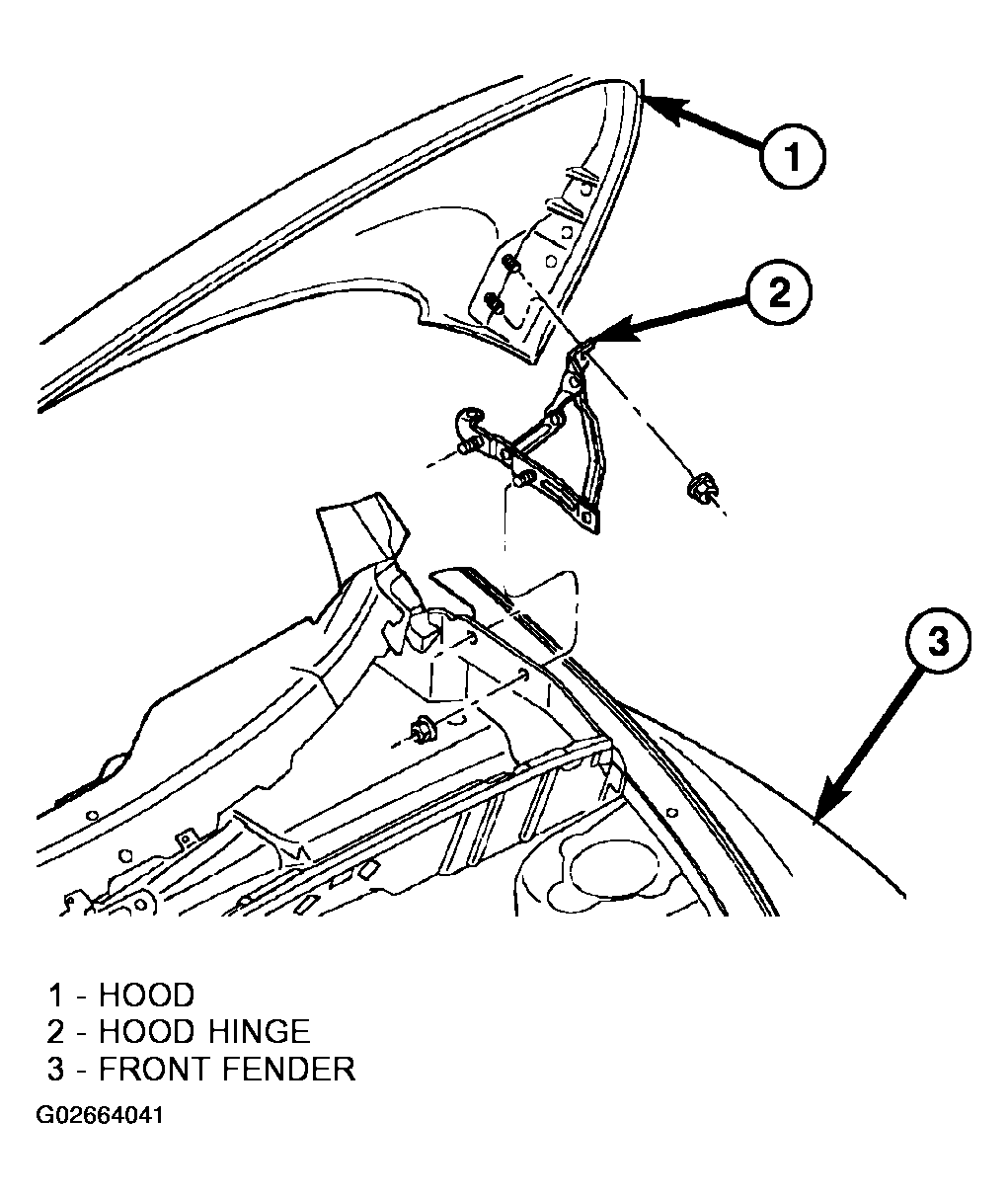

    Fig 1: Removing Hood Hinge
    G02664041Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove bolts holding hood hinge to load beam flange and remove hinge from vehicle. If necessary, paint new hinge before installation.
