Rear Bumper Reinforcement: Installation

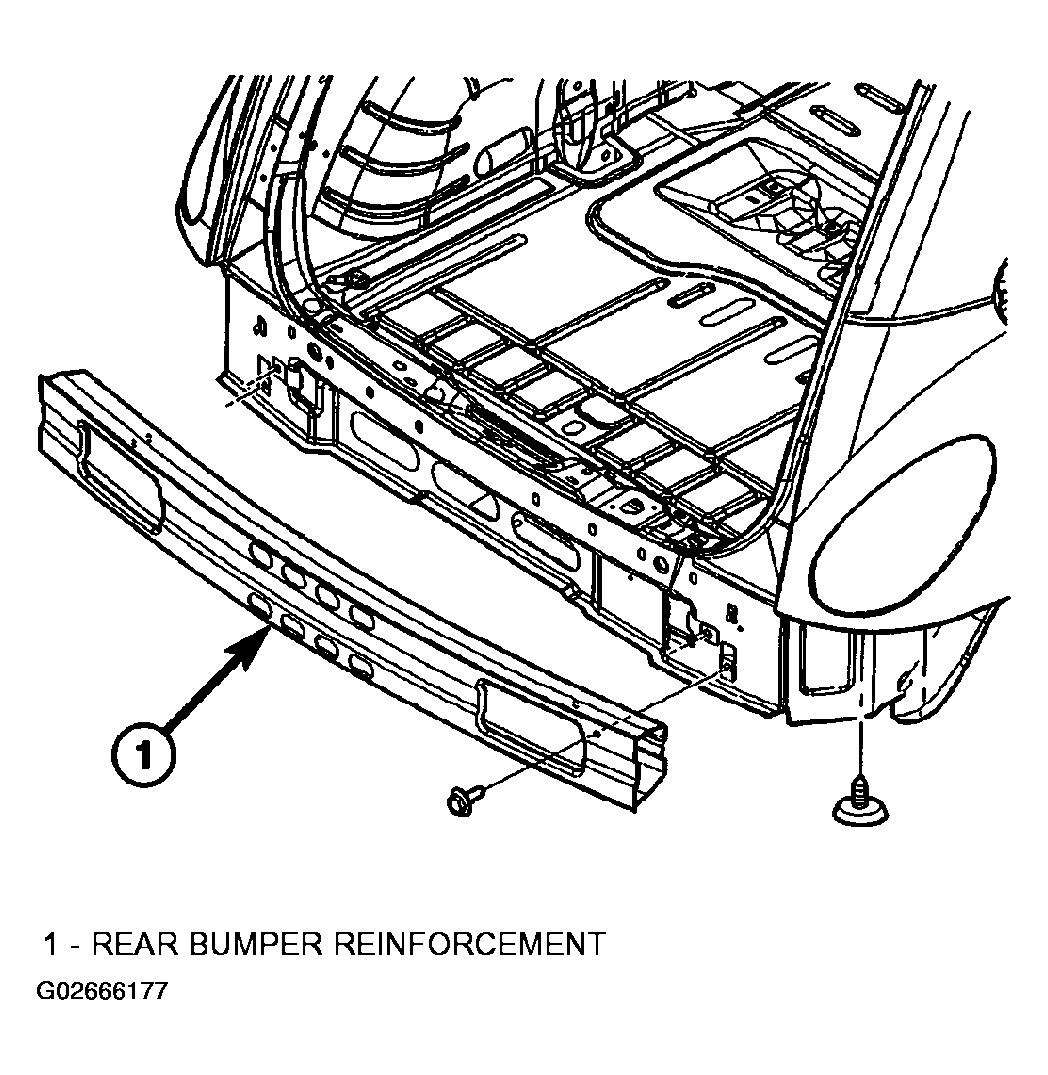

  1. Position bumper reinforcement to vehicle (Figure ).
  2. Install bolts attaching reinforcement to rear closure panel.
  3. Install rear fascia.
