Front Emergency Tow Eye: Installation

Lubricate the threads and install the front tow eye in the front tow eye bracket. Tighten tow eye until firmly seated against bracket (Fig 1 ). No torque specification is required.

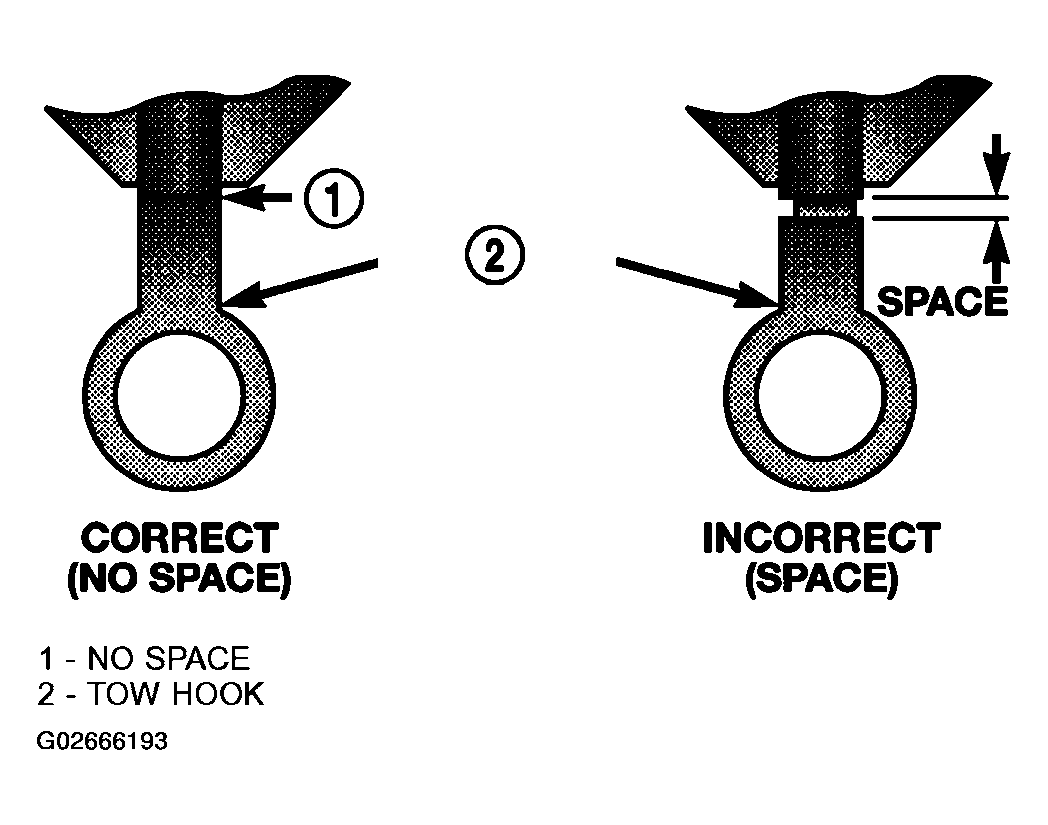

Fig 1: Installing Front Tow Eye
Courtesy of DAIMLERCHRYSLER CORP.
