Symptom: HOOD AJAR SWITCH MISSING (EXPORT ONLY): Testing

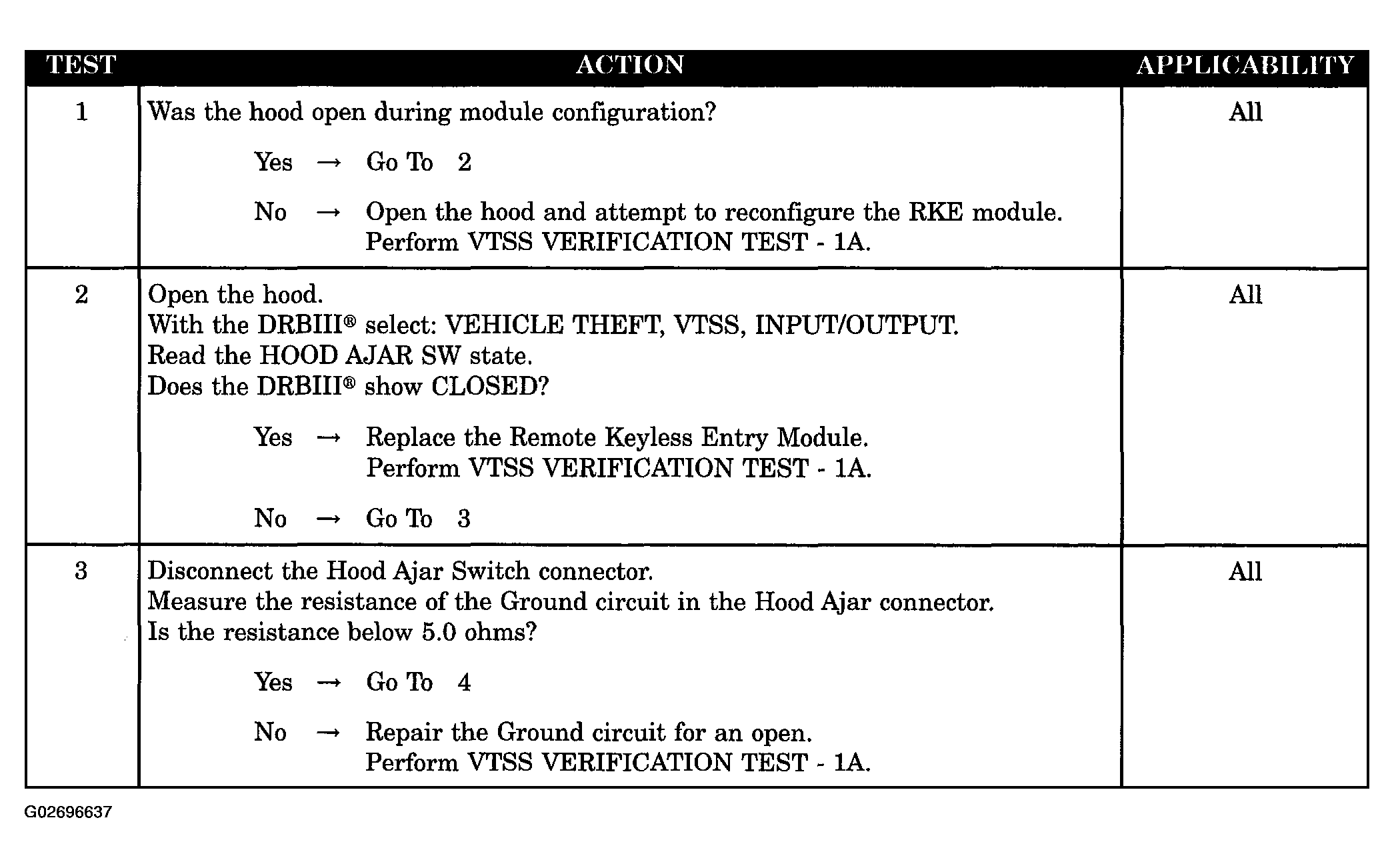

Fig 1: Testing Hood Ajar Switch Missing (Export Only) (1 Of 2)
G02696637Courtesy of DAIMLERCHRYSLER CORP.

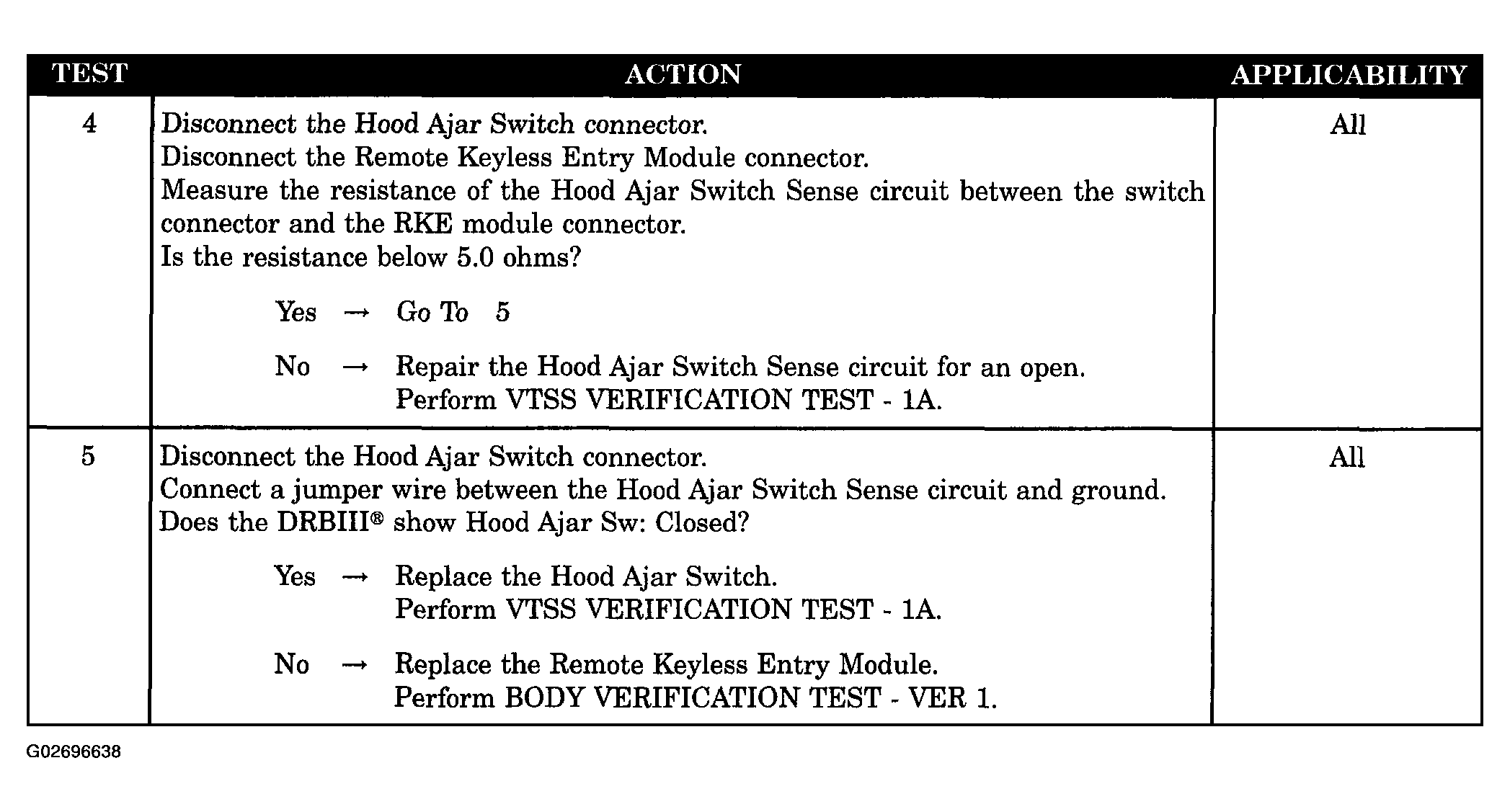

Fig 2: Testing Hood Ajar Switch Missing (Export Only) (2 Of 2)
G02696638Courtesy of DAIMLERCHRYSLER CORP.
