Symptom: *INTRUSION SENSOR FAILS TO TRIP VTSS (EXPORT ONLY): Testing

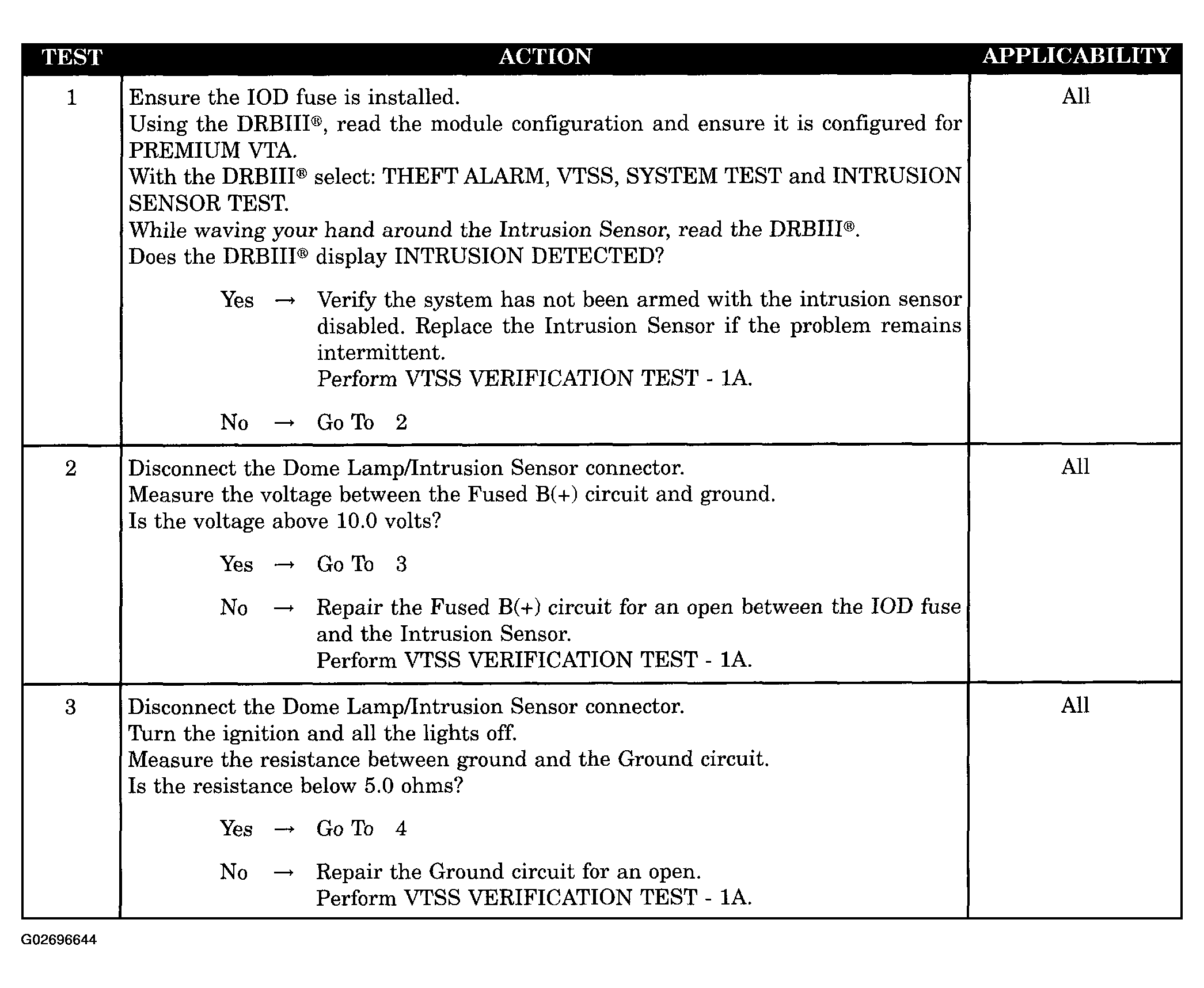

Fig 1: Testing Intrusion Sensor Fails To Trip VTSS (Export Only) (1 Of 2)
G02696644Courtesy of DAIMLERCHRYSLER CORP.

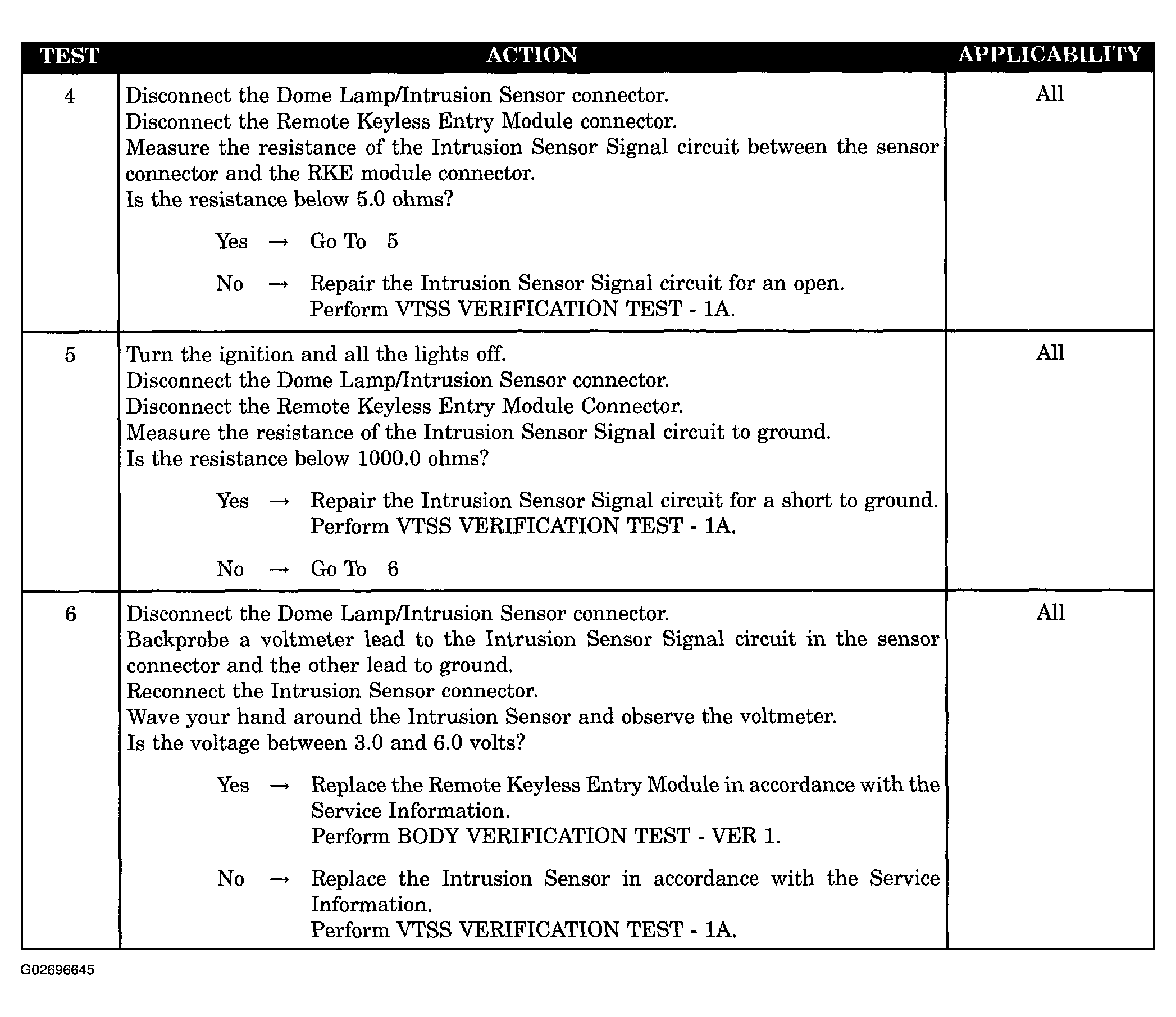

Fig 2: Testing Intrusion Sensor Fails To Trip VTSS (Export Only) (2 Of 2)
G02696645Courtesy of DAIMLERCHRYSLER CORP.
