Symptom: PASSENGER DOOR OR LIFTGATE SWITCH FAILURE: Testing

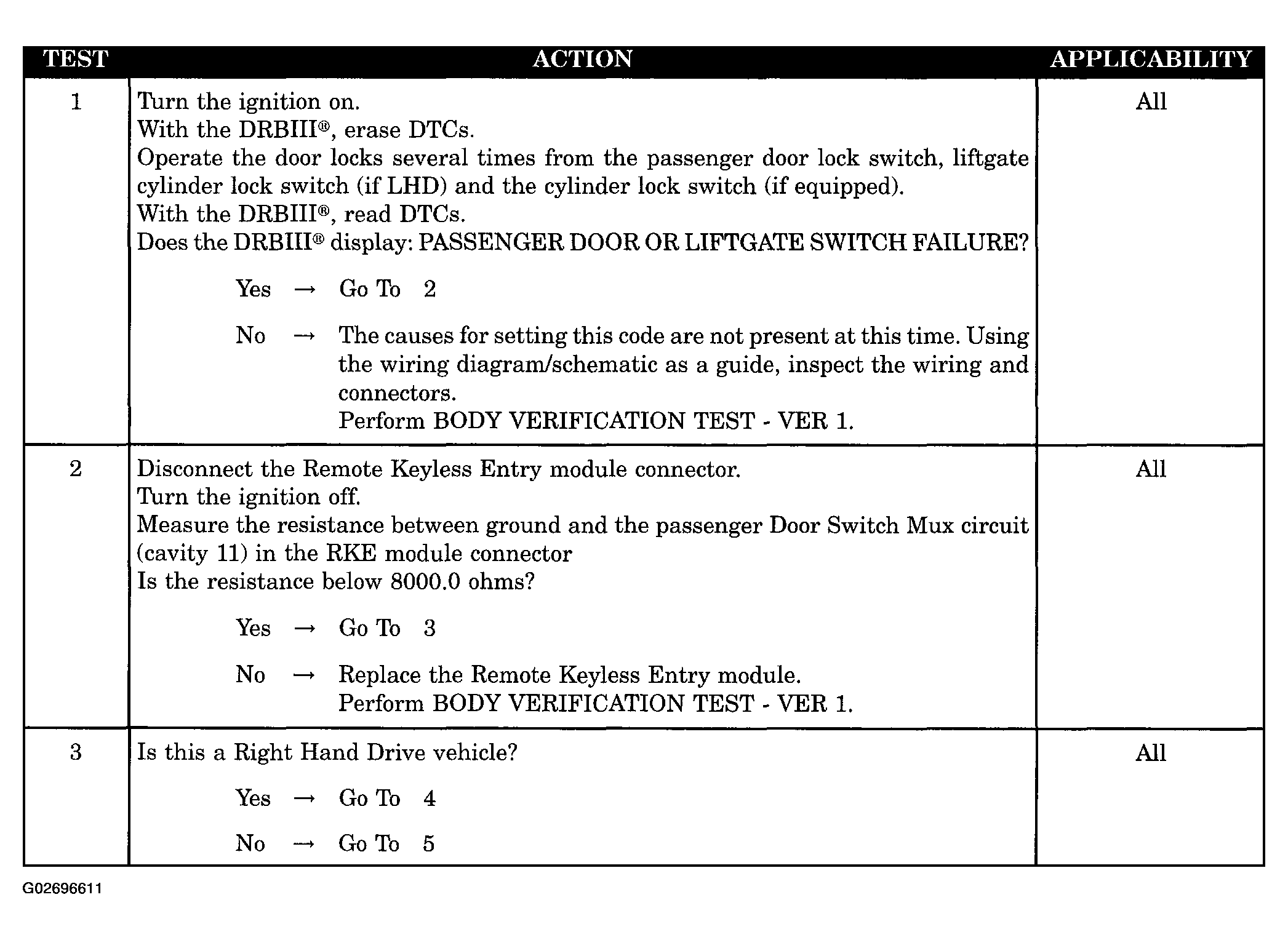

Fig 1: Testing Passenger Door Or Liftgate Switch Failure (1 Of 2)
G02696611Courtesy of DAIMLERCHRYSLER CORP.

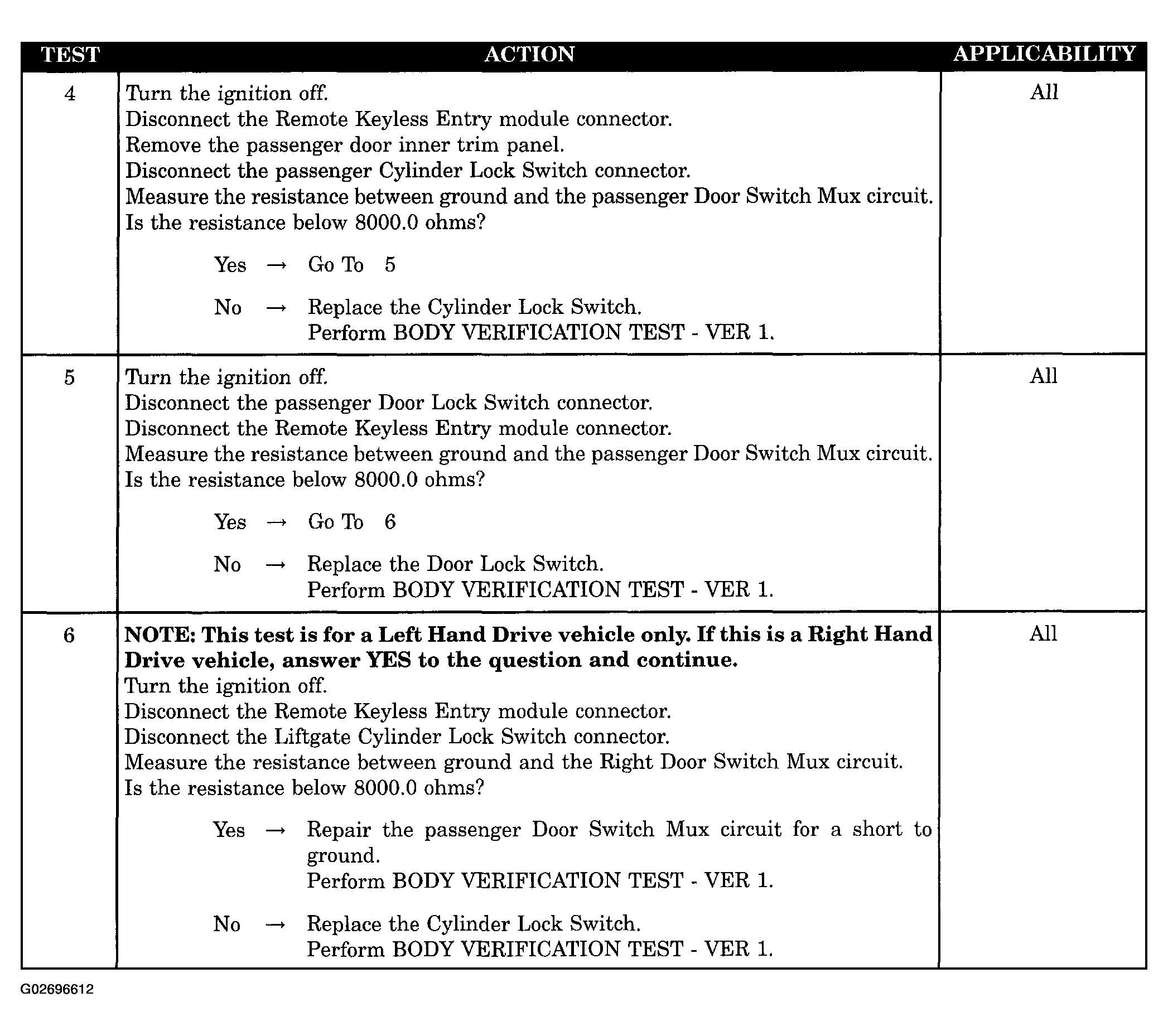

Fig 2: Testing Passenger Door Or Liftgate Switch Failure (2 Of 2)
G02696612Courtesy of DAIMLERCHRYSLER CORP.
