Symptom: NO SKIM MESSAGES RECEIVED: Testing

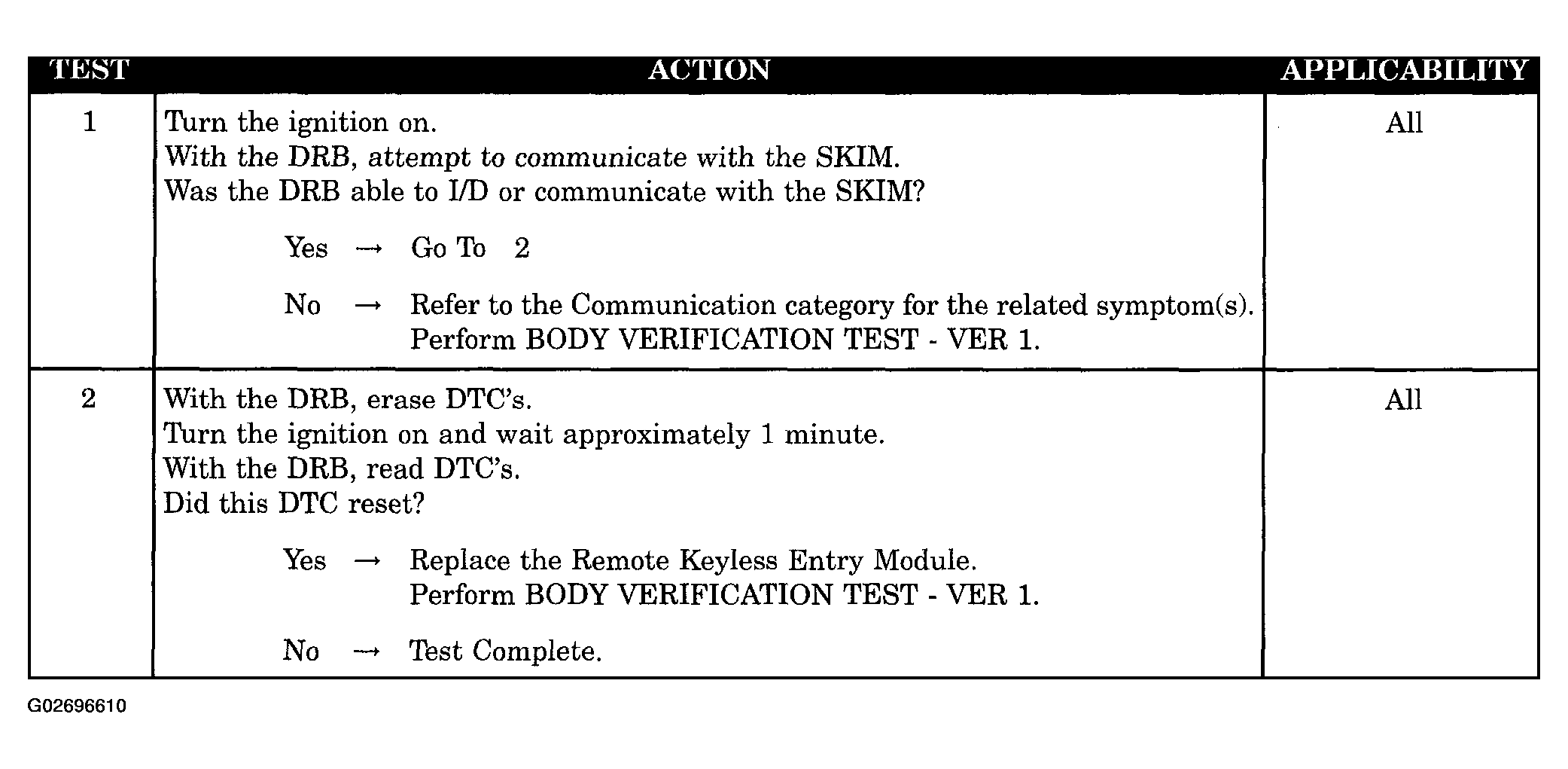

Fig 1: Testing No Skim Message Received

G02696610

Courtesy of DAIMLERCHRYSLER CORP.
