Symptom: NO PCM MESSAGES RECEIVED: TESTIG

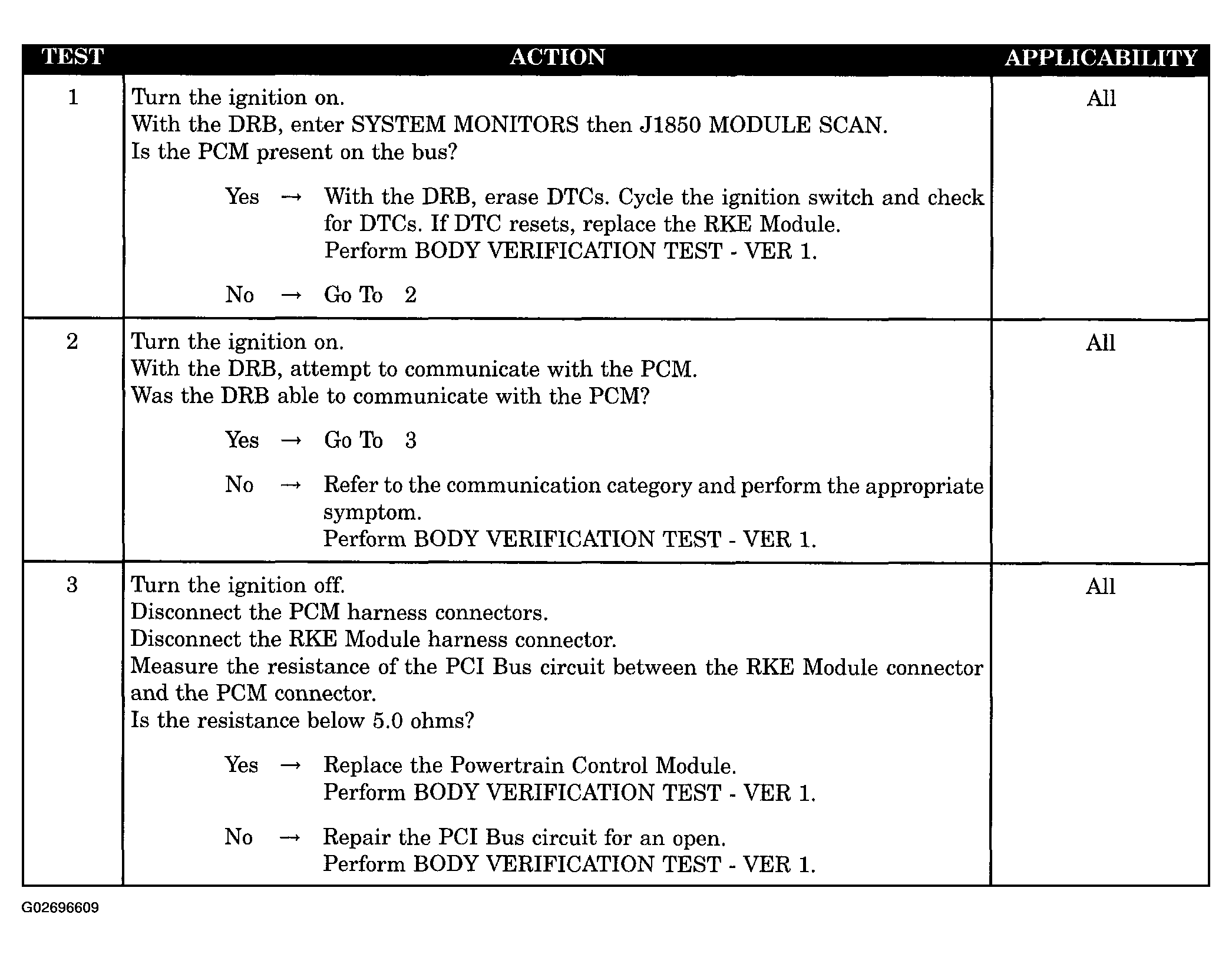

Fig 1: Testing No PCM Message Received
G02696609Courtesy of DAIMLERCHRYSLER CORP.
