Symptom: *ONE PASSENGER DOOR FAILS TO LOCK AND UNLOCK: Testing

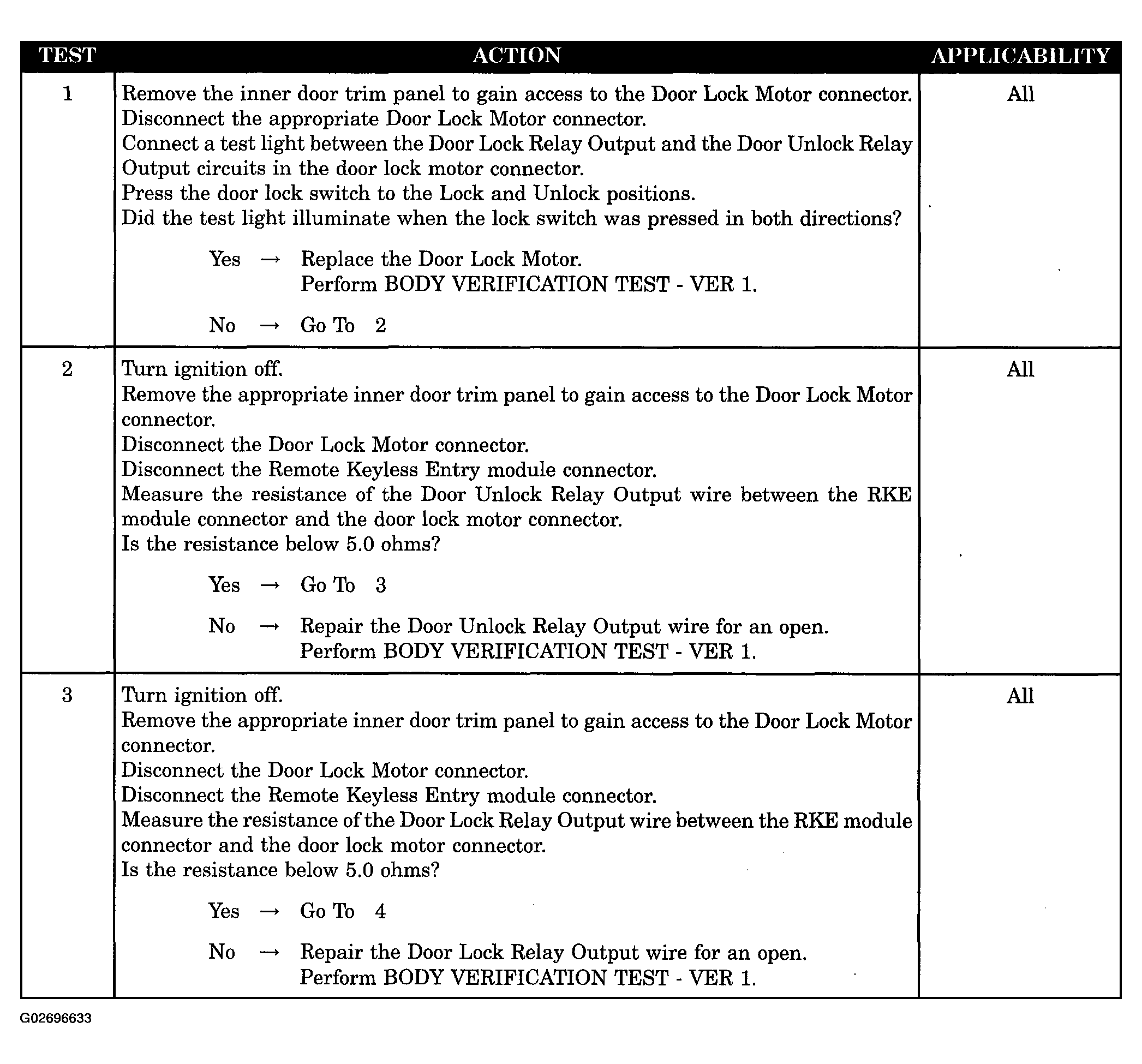

Fig 1: Testing One Passenger Door Fail To Lock And Unlock (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

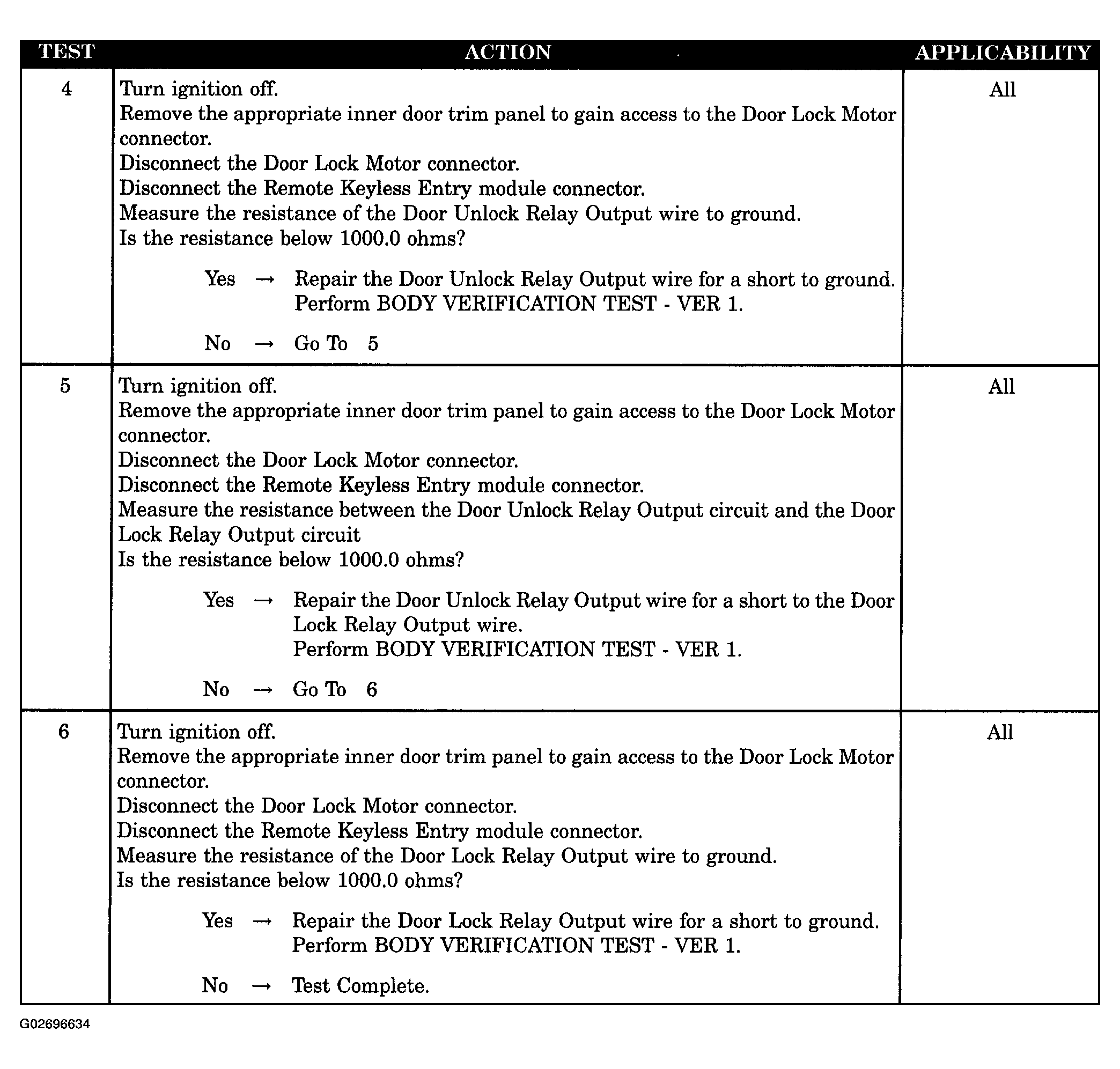

Fig 2: Testing One Passenger Door Fail To Lock And Unlock (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
