Symptom: *NO RESPONSE FROM RKE: Testing

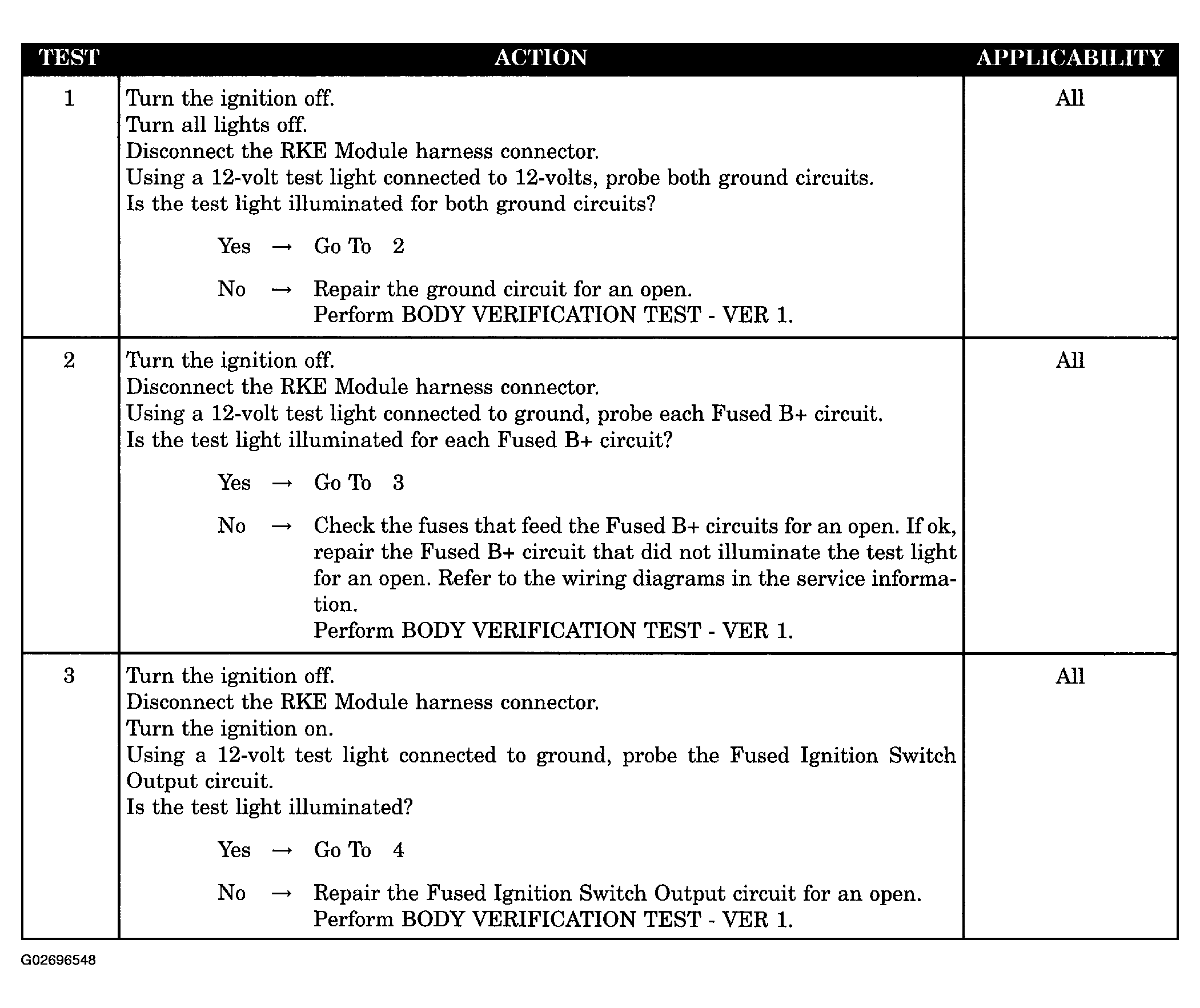

Fig 1: Testing No Response From RKE (1 Of 2)

G02696548

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Testing No Response From RKE (2 Of 2)

G02696549

Courtesy of DAIMLERCHRYSLER CORP.
