Symptom: *NO RESPONSE FROM ECM (SCI ONLY) - DIESEL ONLY: Testing

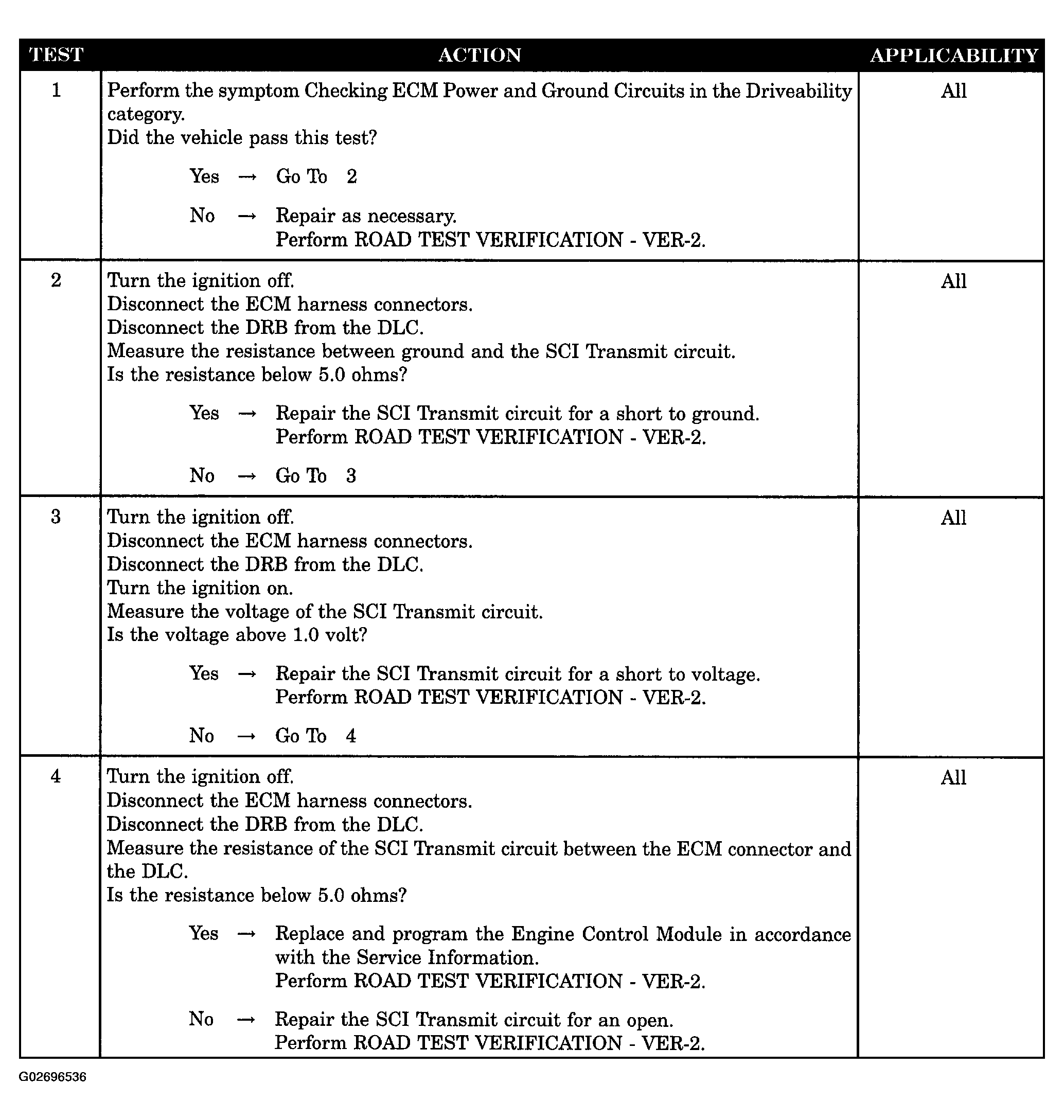

Fig 1: Testing No Response From ECM (SCI Only) Diesel Only

G02696536

Courtesy of DAIMLERCHRYSLER CORP.
