Symptom: PASSENGER SQUIB 1 SHORT TO GROUND: Testing

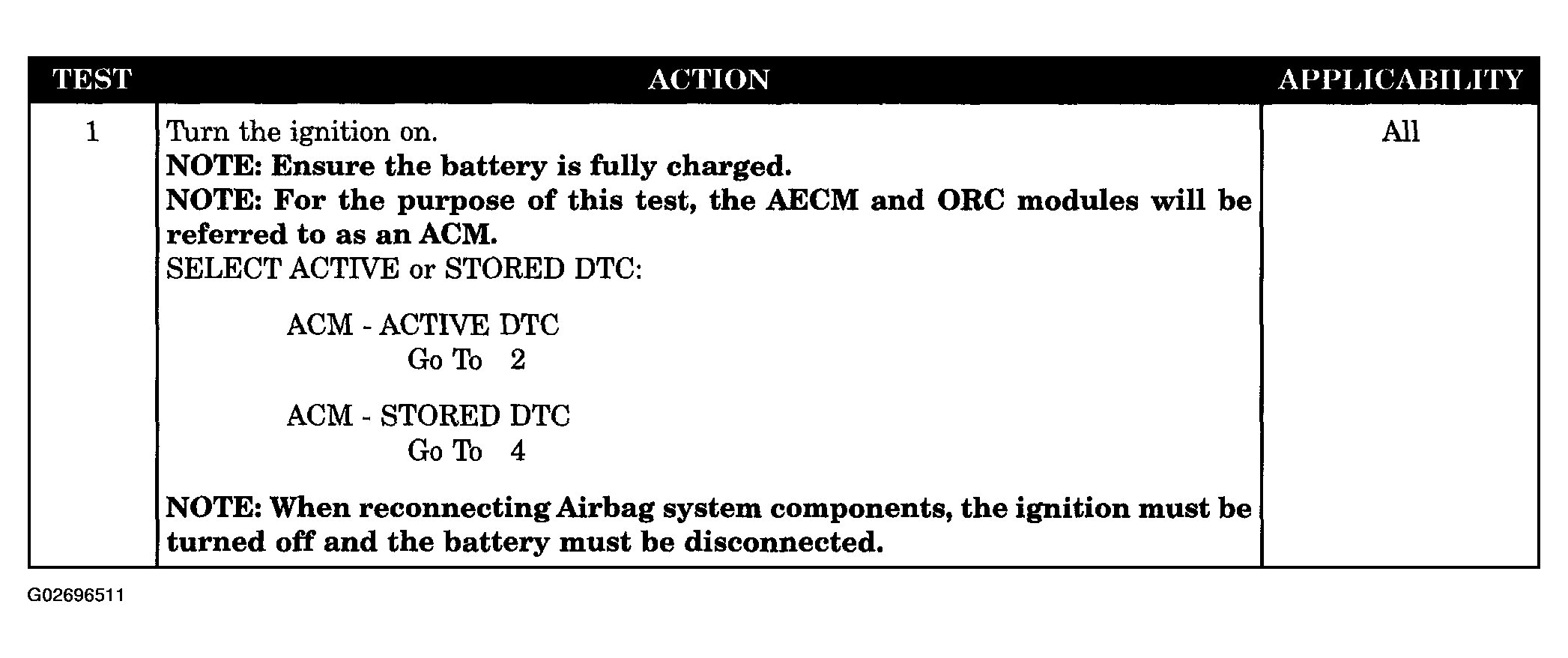

Fig 1: Testing Passenger Squib 1 Short To Ground (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

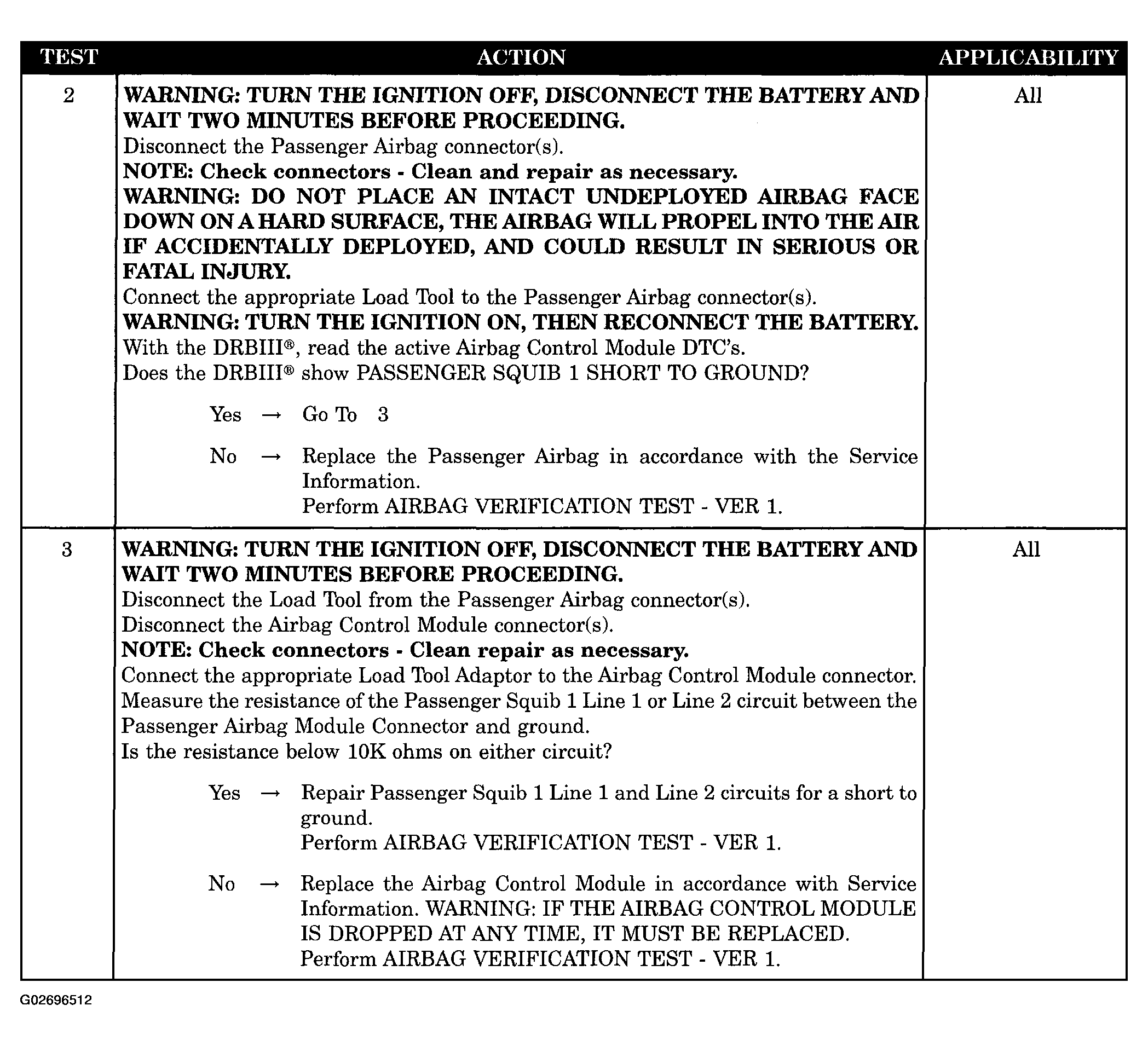

Fig 2: Testing Passenger Squib 1 Short To Ground (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.

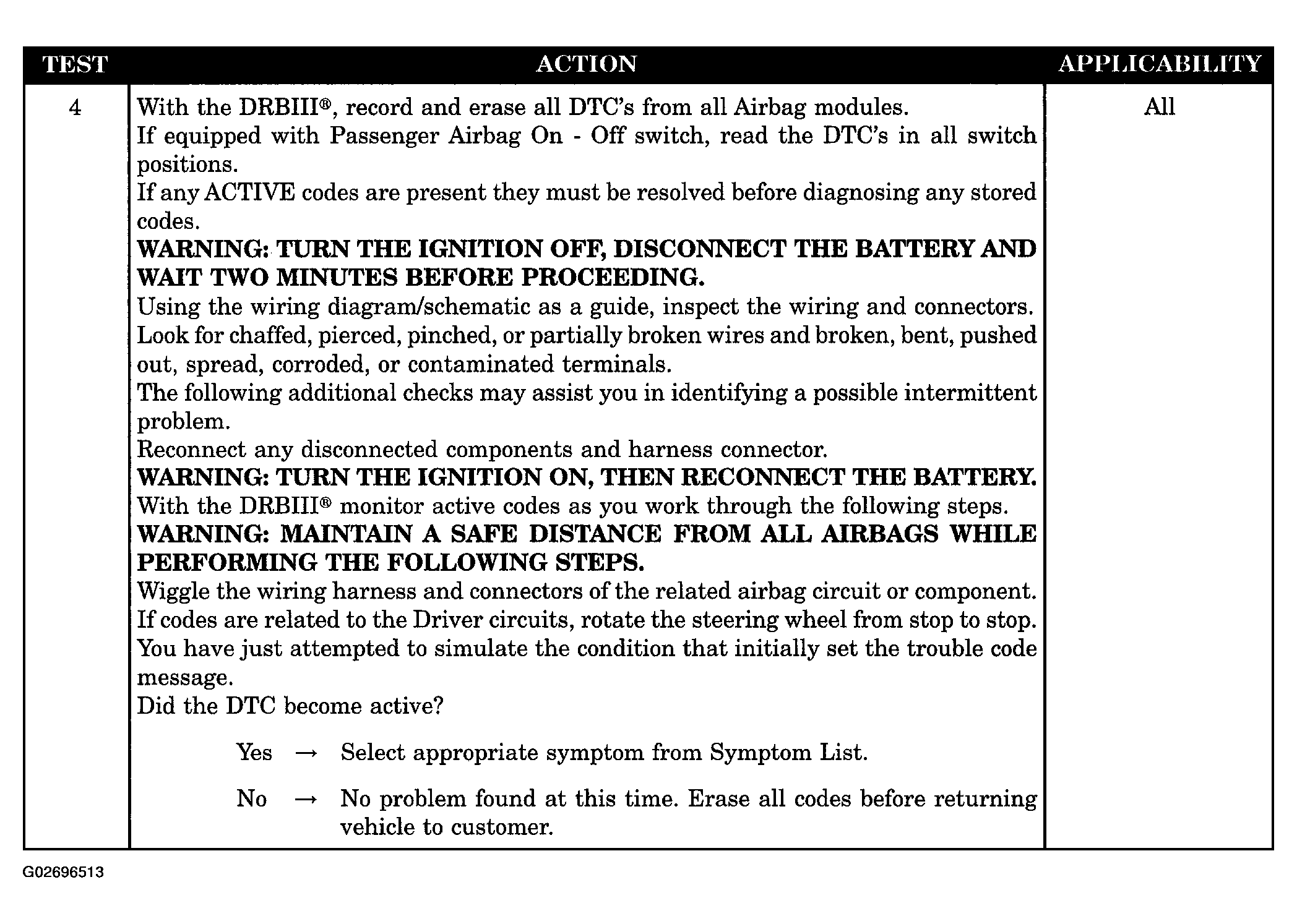

Fig 3: Testing Passenger Squib 1 Short To Ground (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORP.
